How can I get a price quote for Baldor ECP4407T-4?

You can request a fast quote for Baldor ECP4407T-4 from Yılsa Engineering. Reference part number YLSMFNTAYYV4XII. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor ECP4407T-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor ECP4407T-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor ECP4407T-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

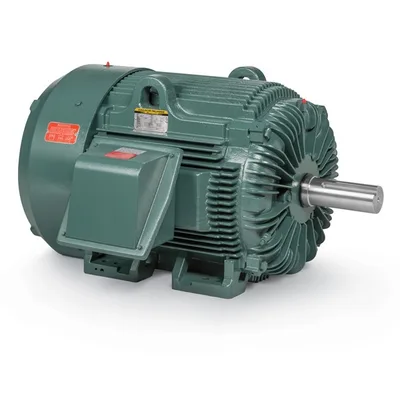

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor ECP4407T-4

Baldor-Reliance ECP4407T-4 is a 200 HP, 1785 rpm, 3-phase 460 V, 60 Hz, 447T frame, TEFC enclosed three-phase AC electric motor.

BaldorMFR # ECP4407T-4SKU # YLSMFNTAYYV4XII

EnclosureTEFC

Frame447T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency200.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance ECP4407T-4 is a 200 HP, 1785 rpm, 3-phase 460 V, 60 Hz, 447T frame, TEFC enclosed three-phase AC electric motor.

Baldor ECP4407T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame447T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency200.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D

Hazardous area divisionDivision II

Agency approvalsCURUSEEV · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Constant torque speed range30-60

Current at voltage222.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load96.2 %

Enclosure modification841

Feedback deviceNO FEEDBACK

High voltage full load current (A)222.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsNo Lifting Lugs

Motor lead quantity/wire size6 @ 1/0 AWG

Motor typeA44120M

Mounting arrangementF1

Number of poles4

Overall length48.24 IN

Power factor87

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1785 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Hazardous area temperature codeT3

UPC781568107751

Nameplate

Catalog numberECP4407T-4

Specification numberP44G3932

Horsepower (HP)200

Current (A)222

Voltage (V)460

NEMA design letterB

Frame size447T

Speed (rpm)1785

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing data6318

Opposite drive end bearing data6318

Phase3

DutyCONT

Insulation classF

Drive end bearing90BC03J30X

TypeP

EnclosureTEFC

Code letter (locked rotor kVA)G

Opposite drive end bearing90BC03J30X

Power factor87

NEMA nominal efficiency (%)96.2

Efficiency at 3/4 load (%)96.5

Maximum correction (kVAR)32.0

Guaranteed efficiency (%)95.4

Temperature codeT3

Temperature code200

Constant horsepower frequency range (Hz)60-90

Constant torque frequency range (Hz)30-60

Variable torque frequency range (Hz)0-60

Inverter temperature codeT3

Nameplate numberNP3238

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·794 KB·English

Series documents 4· shared by this product series

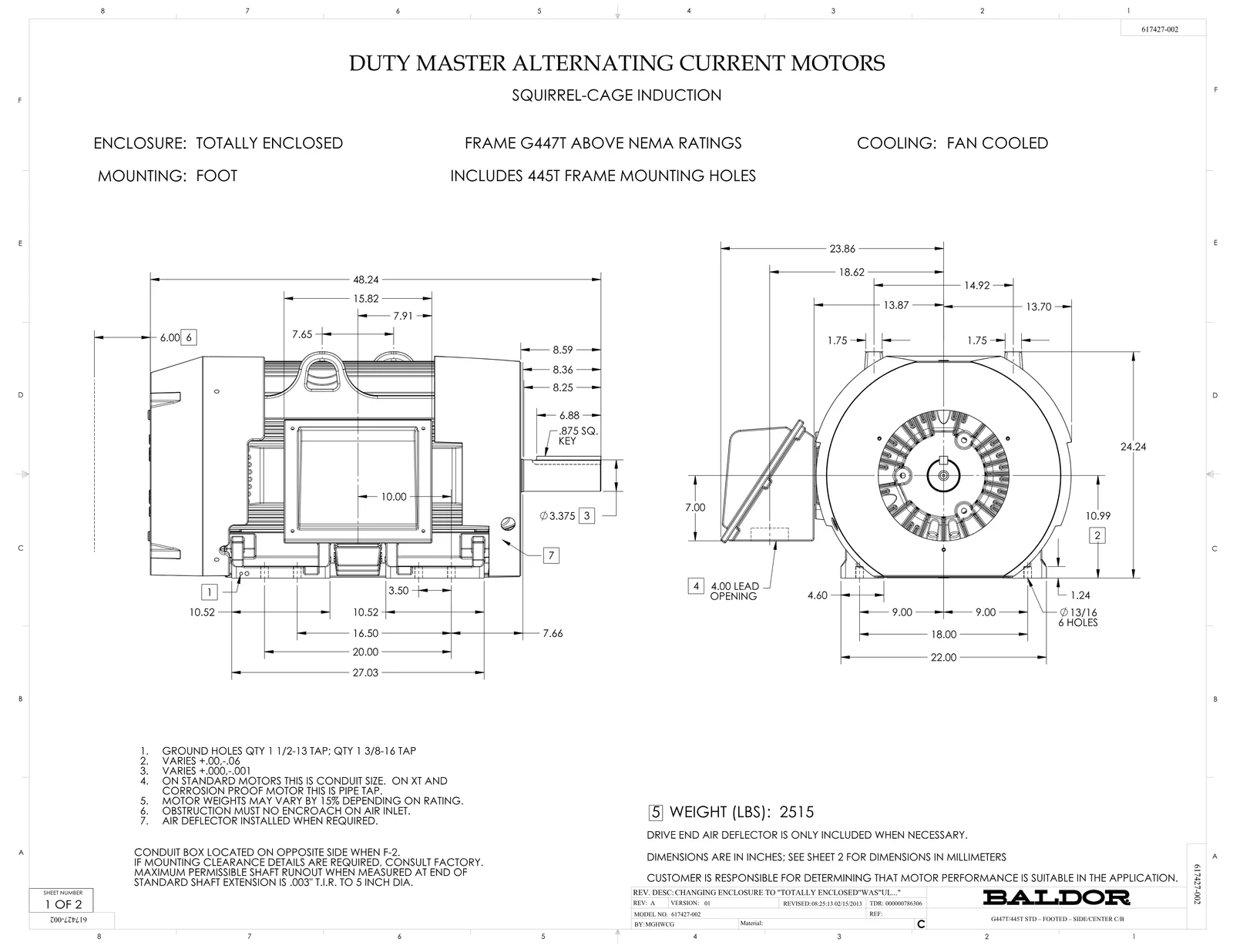

Dimension DrawingDimension SheetPDF·273 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·110 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor ECP4407T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
034017014AB	LCKW 3/8 STD. PLATED	4 pcs	376 motors
078548001R	FAN KB 234/150 (84) 400	1 pcs	123 motors

Accessories 1

Genuine accessories that can be used with the Baldor ECP4407T-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
