Baldor ECP4313T-4

Severe Duty Motor - 75 hp, 3600 rpm, 3 ph, 460 V, 365TS Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3555 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # ECP4313T-4SKU # YLSR0E4JVJ3ZG62

EnclosureTEFC

Frame365TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency75.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Severe Duty Motor - 75 hp, 3600 rpm, 3 ph, 460 V, 365TS Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3555 rpm Base, Foot Mount, Continuous Duty

Baldor ECP4313T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame365TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency75.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D

Hazardous area divisionDivision II

Agency approvalsCCSAUSEEV · CURUSEEV · NEMA_PREMIUM · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Constant torque speed range10-60

Current at voltage80.700 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.5 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)80.7 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeF

Lifting lugsNo Lifting Lugs

Maximum speed (rpm)4500 rpm

Motor lead quantity/wire size3 @ 2 AWG

Motor typeA36068M

Mounting arrangementF1

Number of poles2

Overall length31.37 IN

Power factor92

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter1.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3555 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Hazardous area temperature codeT3

UPC781568107614

Motor CategoryGeneral Severe Duty Motor

Motor Supply Voltage460 V

Base RPM3555 rpm

Mounting TypeFoot

IP Rating55

Harmonization Code8501.52.8040

Weight971 lbs

ApplicationsPetro-chemical plants, mines, quarries, foundries, pulp and paper plants, waste management facilities, chemical plants, and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

Additional DetailsTotally enclosed cast iron construction, Premium insulation system, Sealed frame fits, Gasketed conduit box, V-Ring shaft slinger, Stainless Steel nameplates, Corrosion resistant epoxy finish and Corrosion resistant hardware. Super-E® severe duty motors have NEMA Premium® efficiency, Class F insulation, 1.15 service factor and 3 year warranty. Positive lubrication system (PLS) on 250 frames and larger. Motors are marked for Division 2/Zone 2, Class I locations. Inverter Ready design with speed range and Inverter T. Code nameplate information, see chart on page 51 for specific motor information.

Product TypeSevere Duty Motors

Nameplate

Catalog numberECP4313T-4

CC number010A

Specification numberP36G398

Rating40C AMB-CONT

Code letter (locked rotor kVA)-

Phase3

Insulation classF

Maximum speed (rpm)4500

Maximum correction (kVAR)5

Drive end bearing6313

Opposite drive end bearing6313

EnclosureTEFC

Frame size365TS

Ingress protection (IP)55

GreasePOLYREX EM

Motor weight959

Temperature code200

Constant torque15-60

Variable torque0-60

Constant horsepower60-75

Inverter temperature class200

Usable at (V)50HZ 60HP 380V 78A

Nameplate numberNP4033LUA

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·716 KB·English

Series documents 4· shared by this product series

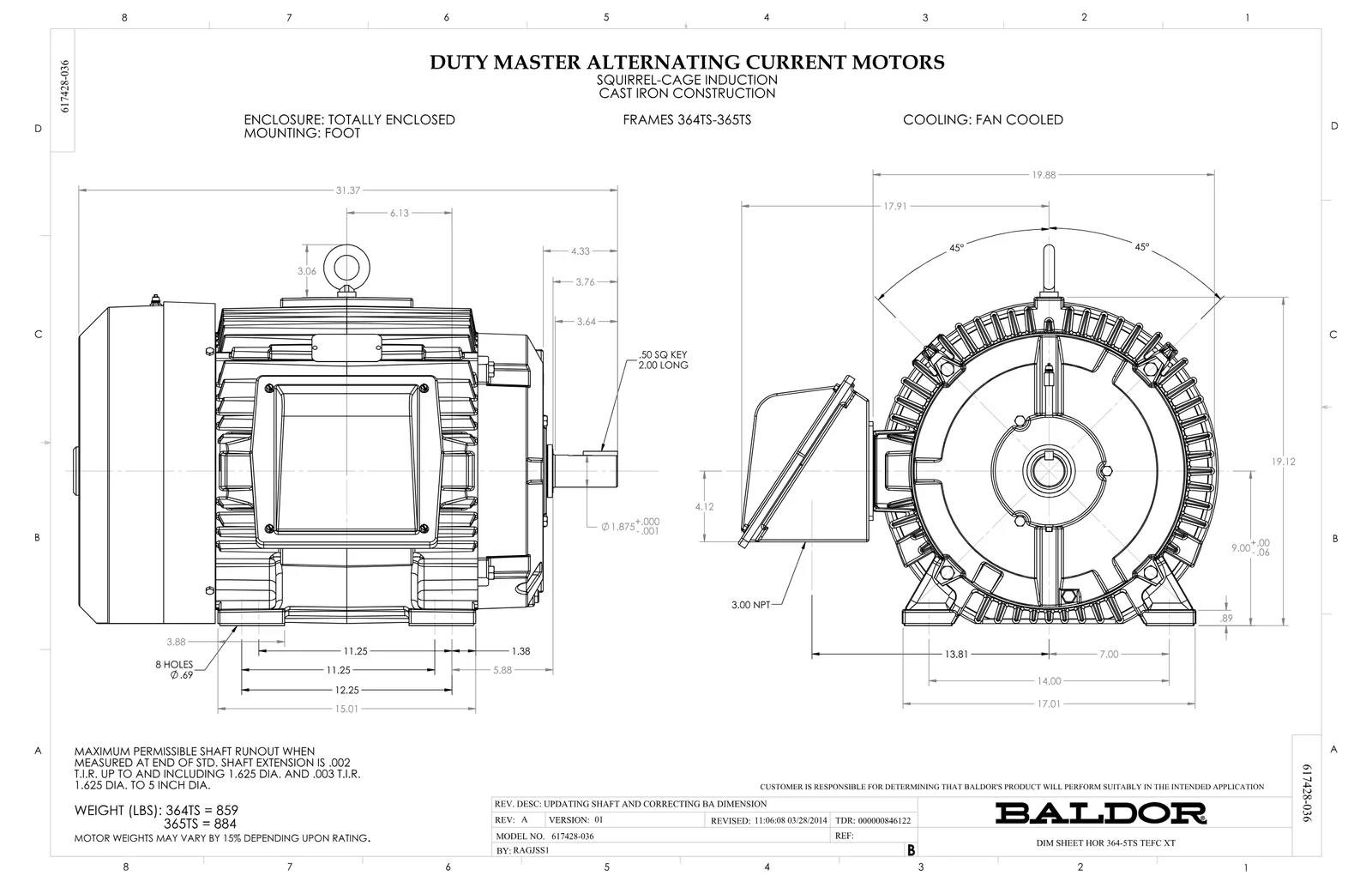

Dimension DrawingDimension SheetPDF·202 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·113 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor ECP4313T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
