How can I get a price quote for Baldor EBM3558T-D?

You can request a fast quote for Baldor EBM3558T-D from Yılsa Engineering. Reference part number YLSCKELTXX15NG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EBM3558T-D in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EBM3558T-D genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EBM3558T-D?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

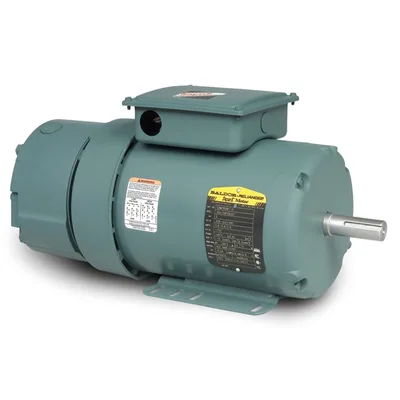

Baldor EBM3558T-D

Baldor-Reliance EBM3558T-D; 2 HP, 1750 rpm, 3 phase 230/460 V 60 Hz, 145TY frame, TEFC enclosed general purpose D-Series AC brake motor.

BaldorMFR # EBM3558T-DSKU # YLSCKELTXX15NG

EnclosureTEFC

Frame145TY

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EBM3558T-D; 2 HP, 1750 rpm, 3 phase 230/460 V 60 Hz, 145TY frame, TEFC enclosed general purpose D-Series AC brake motor.

Baldor EBM3558T-D

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame145TY

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Brake torque10.0 lb-ft

Current at voltage5.200 A @ 230.0 V · 5.800 A @ 208.0 V · 2.600 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.6 a

Front face codeFan Housing Cover For Brake

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3526M

Mounting arrangementF3

Number of poles4

Overall length17.35 IN

Power factor82

Product familyGeneral Purpose

Product typeD-SERIES BRAKE MOTORS

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1750 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568538302

Nameplate

Catalog numberEBM3558T-D

Specification number35X159Z165G1

Horsepower (HP)2

Voltage (V)230/460

Current (A)5.6/2.8

Speed (rpm)1760

Frame size145TY

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)86.5

Power factor78

Rating40C AMB-CONT

CC number010A

Drive end bearing6205

Opposite drive end bearing6205

EnclosureTEFC

Nameplate numberNP1259L

Performance

General characteristics· 460 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)10.857 Ω

Temperature rise at rated load (°C)59° C

Temperature rise at service factor load (°C)75° C

Start configurationDOL

Breakdown torque18.4 lb-ft

Pull-up torque13.7 lb-ft

Locked-rotor torque14.5 lb-ft

Starting current (A)17.9 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	42	64	76	82	86	87	84
Efficiency %	0	82.7	87.6	87.8	86.6	84.6	82	85.4
Speed rpm	1799.8	1788.4	1776.9	1763.5	1748.9	1731.7	1711.8	1739
Line amps A	1.24	1.35	1.65	2.09	2.61	3.21	3.91	2.97
Power W	66	450	847	1268	1714	2194	2716	2002
Torque lb-ft	0	1.466	2.942	4.449	5.979	7.55	9.16	6.92

Documents & CAD

For this product 5

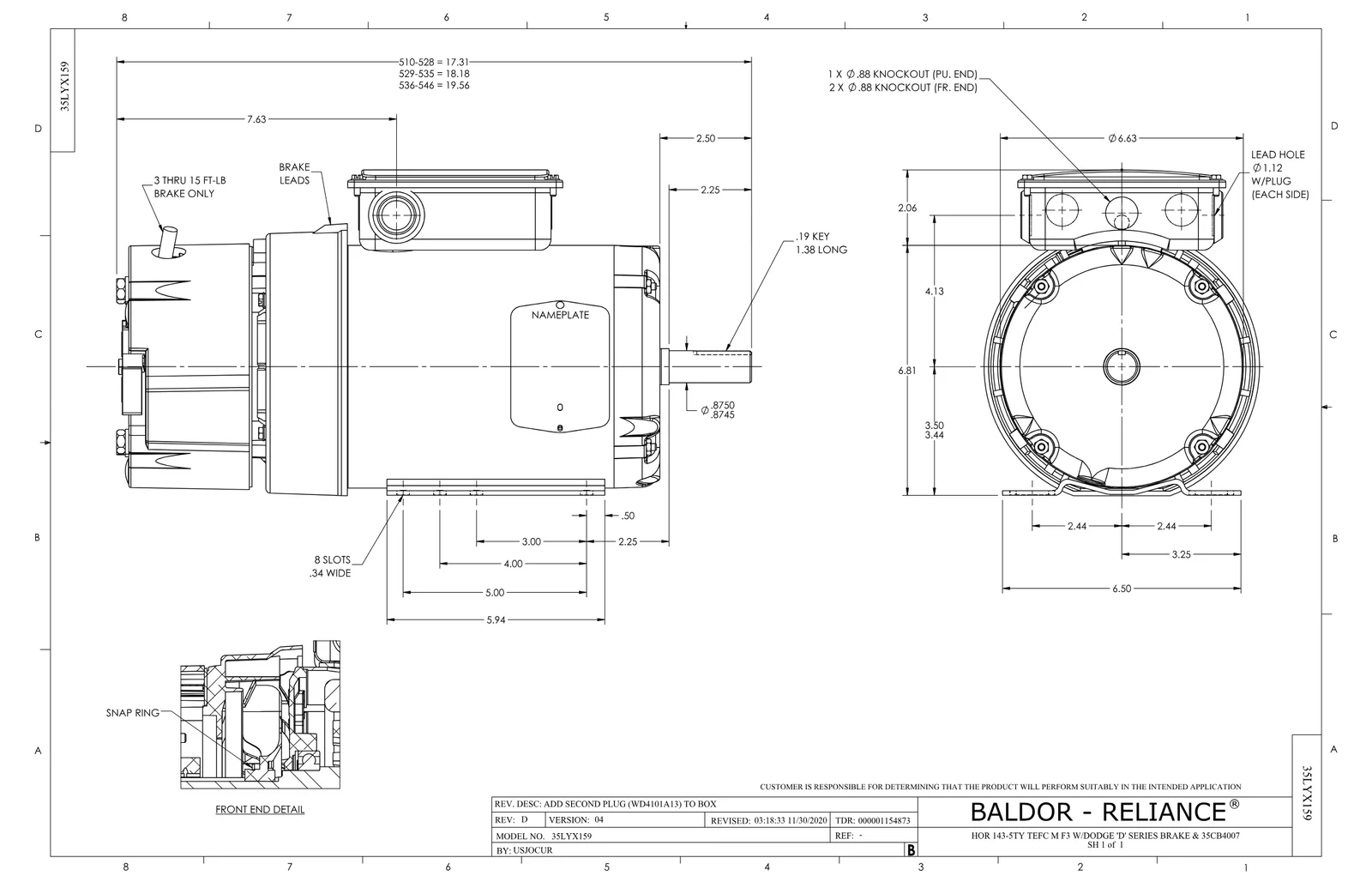

Dimension DrawingDimension SheetPDF·124 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

Wiring DiagramWiring DiagramPDF·29 KB·English

DatasheetDatasheetPDF·640 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor EBM3558T-D motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
46BK0304B01	DBSC-VP-10-MA-230/460 VAC	1 pcs	9 motors
LC0005E01	CONN.DIA./WARNING LABEL (LC0005/LB1119N)	1 pcs	251 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
