Baldor EBM3218T-DI

Baldor-Reliance EBM3218T-DI; 5 HP, 1750 rpm, 3 phase 230/460 V 60 Hz, 184T frame, ODP enclosed general purpose AC electric motor.

BaldorMFR # EBM3218T-DISKU # YLSSABFLEKANET

EnclosureODP

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EBM3218T-DI; 5 HP, 1750 rpm, 3 phase 230/460 V 60 Hz, 184T frame, ODP enclosed general purpose AC electric motor.

Baldor EBM3218T-DI

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage13.600 A @ 208.0 V · 6.400 A @ 460.0 V · 12.800 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load89.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.4 a

Front face codeBrake Mounting

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 16 AWG

Motor type3640M

Mounting arrangementF1

Number of poles4

Overall length21.84 IN

Power factor81

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1750 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568880135

Nameplate

Catalog numberEBM3218T-DI

Specification number36Q901Y404G1

Horsepower (HP)5

Voltage (V)230/460

Current (A)12.8/6.4

Speed (rpm)1750

Frame size184T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)89.5

Power factor81

Rating40C AMB-CONT

CC number010A

Drive end bearing6206

Opposite drive end bearing6205

EnclosureOPEN

Nameplate numberNP1259L

Performance

General characteristics· 460 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)2.5 Ω

Temperature rise at rated load (°C)38° C

Temperature rise at service factor load (°C)46° C

Start configurationDOL

Breakdown torque52 lb-ft

Pull-up torque30 lb-ft

Locked-rotor torque32 lb-ft

Starting current (A)48 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	6	38	61	73	81	84	86	83
Efficiency %	0	85	89.8	90.5	90	88.8	87.3	89.3
Speed rpm	1799	1786	1773	1761	1747	1732	1715	1738
Line amps A	3.2	3.5	4.2	5.2	6.4	7.8	9.3	7.2
Power W	153	1119	2103	3109	4136	5195	6278	4771
Torque lb-ft	0	3.75	7.5	11.25	15	18.75	22.5	17.2

Documents & CAD

For this product 4

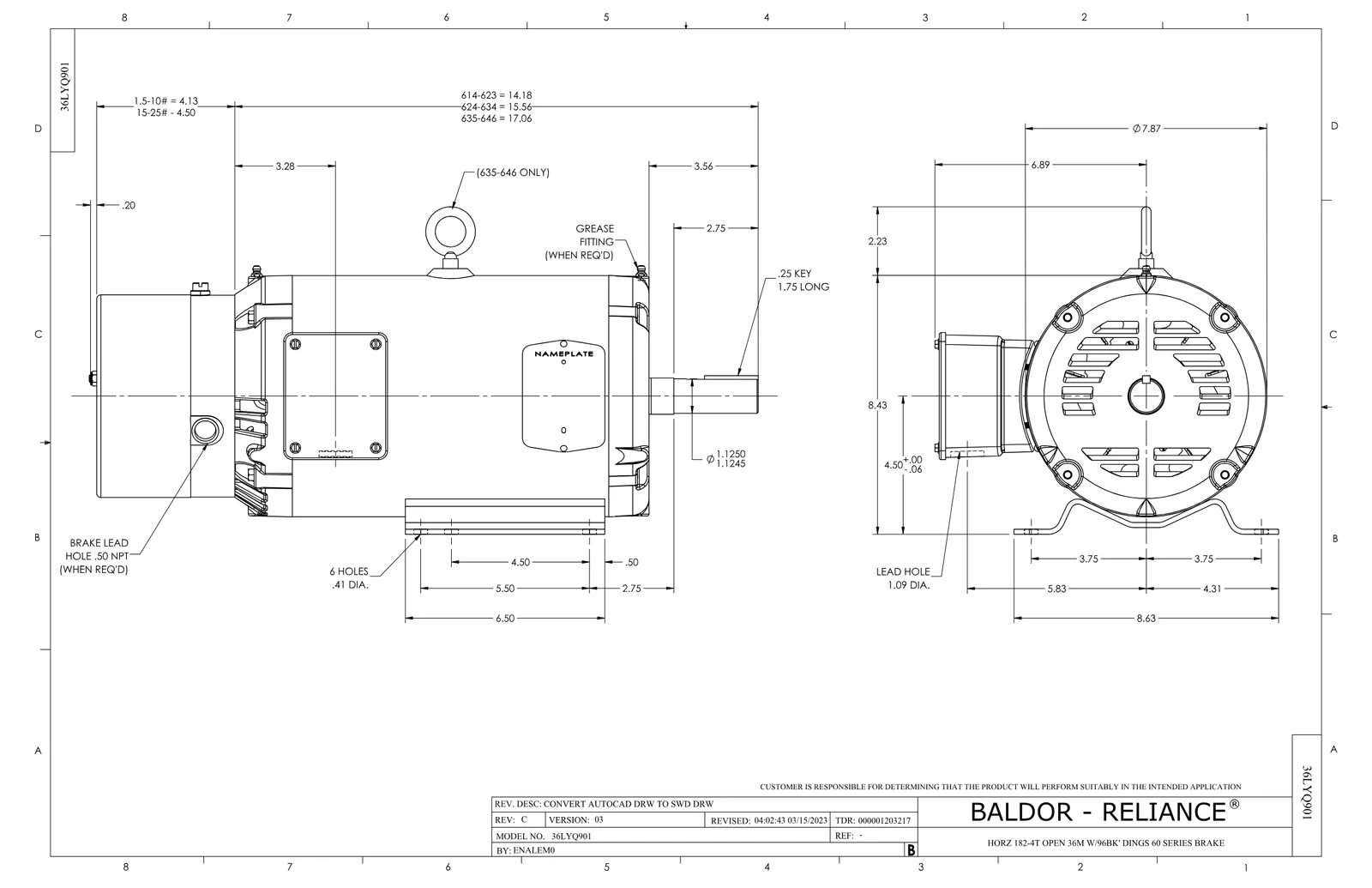

Dimension DrawingDimension SheetPDF·119 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·606 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EBM3218T-DI motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.022 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
