Baldor DEL3737TM

Farm Duty - Dairy Vacuum Pump Motor - 10 hp, 1800 rpm, 1 ph, 230 V, 215T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1750 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # DEL3737TMSKU # YLSGM04ODCEOATH

EnclosureTEFC

Frame215T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency10.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Dairy Vacuum Pump Motor - 10 hp, 1800 rpm, 1 ph, 230 V, 215T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1750 rpm Base, Foot Mount, Continuous Duty

Baldor DEL3737TM

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame215T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency10.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)50 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage39.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)39.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeNot Inverter

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitCap Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3750LC

Mounting arrangementF1

Number of poles4

Overall length21.27 IN

Power factor96

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1750 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568121276

Motor CategoryDairy Vacuum Pump Motor

Motor Supply Voltage230 V

Base RPM1750 rpm

Harmonization Code8501.40.6040

Weight174 lbs

ApplicationsVacuum pumps used in the dairy industry.

Additional DetailsManual thermal overload protected, heavy-gauge steel frame. 1.15 Service Factor. 50°C ambient-continuous duty. Farm duty epoxy paint.

Mounting TypeFoot

Nameplate

Catalog numberDEL3737TM

Specification number37M294W004G1

Horsepower (HP)10

Voltage (V)230

Current (A)39

Speed (rpm)1750

Frame size215T

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterL

Insulation classH

NEMA nominal efficiency (%)85.5

Power factor96

Rating50C AMB-CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 10 hp

Line-to-line resistance at 25 °C (ohms)0.219 Ω / 0.695 Ohms B Ph

Temperature rise at rated load (°C)75° C

Temperature rise at service factor load (°C)95° C

Start configurationDOL

Breakdown torque96.52 lb-ft

Pull-up torque58.68 lb-ft

Locked-rotor torque77.54 lb-ft

Starting current (A)280 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	56	88	97	98	98	96	93	97
Efficiency %	0	67.3	81.4	85.5	85.6	83.5	80	84.3
Speed rpm	1799	1788	1776	1765	1749	1731	1707	1738
Line amps A	7.38	13.81	20.64	29.04	38.61	50.07	63.69	45.5
Power W	955	2801	4613	6547	8683	11022	13677	10086
Torque lb-ft	0	7.42	14.9	22.34	29.92	37.46	45.12	34.4

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·107 KB·English

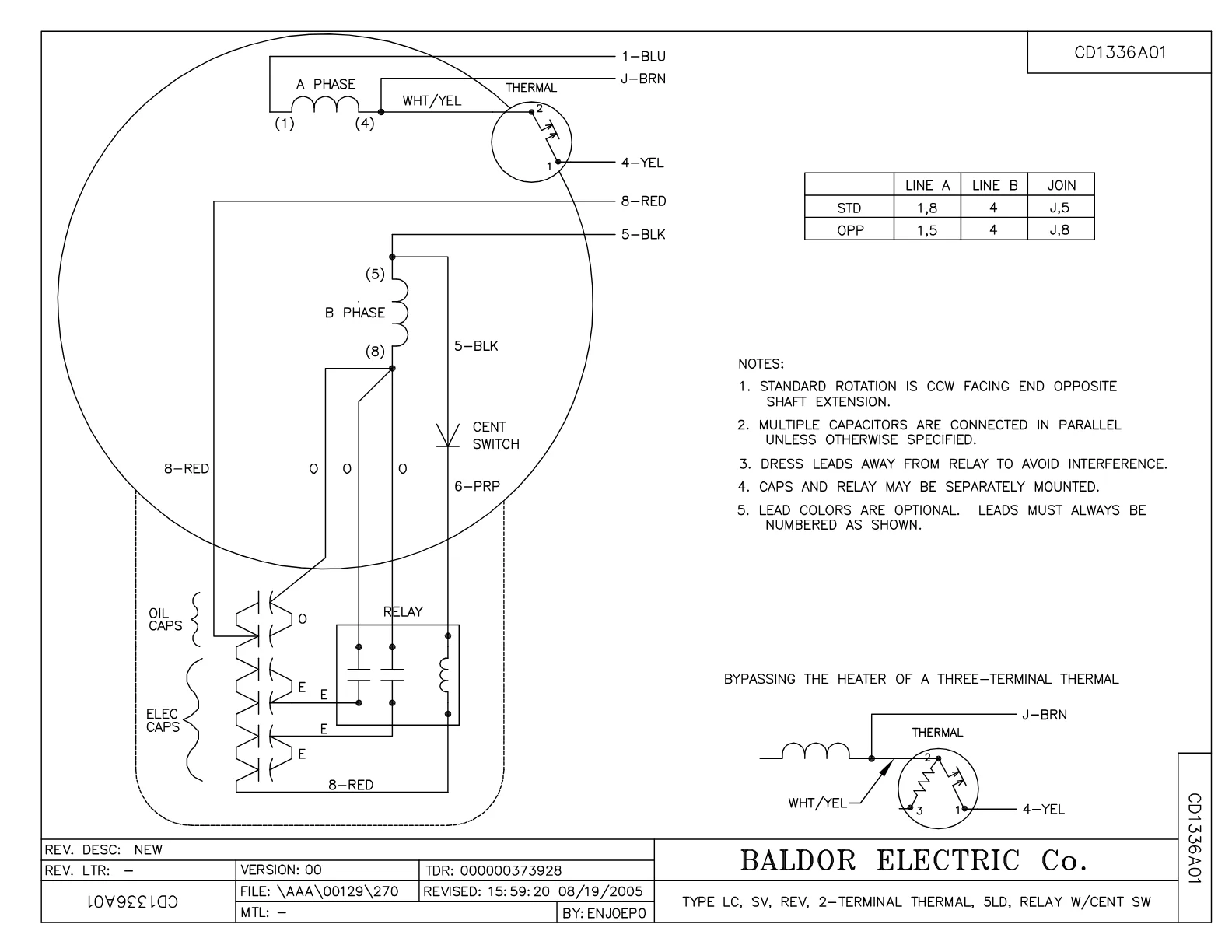

Wiring DiagramWiring DiagramPDF·44 KB·English

DatasheetDatasheetPDF·667 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·78 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor DEL3737TM motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	2 pcs	69 motors
RE5029	MARS 91423 DOUBLE POLE 230-240V CONTACTO	1 pcs	8 motors
TPLED1024SP	THERMAL 1PH 1.5 MAN REF LED945 TDR #5817	1 pcs	5 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	4 pcs	45 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	1 pcs	141 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
