Baldor DEL3733TM

Baldor-Reliance DEL3733TM; 7.5 HP, 1725 rpm, single phase 230 V 60 Hz, 215T frame, TEFC enclosed general purpose farm duty AC electric motor.

BaldorMFR # DEL3733TMSKU # YLSS5FTE0S3CEXS

EnclosureTEFC

Frame215T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency7.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance DEL3733TM; 7.5 HP, 1725 rpm, single phase 230 V 60 Hz, 215T frame, TEFC enclosed general purpose farm duty AC electric motor.

Baldor DEL3733TM

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame215T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency7.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)50 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage28.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)28.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitCap Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3750LC

Mounting arrangementF1

Number of poles4

Overall length20.77 IN

Power factor98

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568121269

Nameplate

Catalog numberDEL3733TM

Specification number37F364W659

Horsepower (HP)7.5

Voltage (V)230

Current (A)28

Speed (rpm)1725

Frame size215T

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)85

Power factor98

Rating50C AMB-CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 7.5 hp

Line-to-line resistance at 25 °C (ohms)0.271 Ω / 0.579 Ohms B Ph

Temperature rise at rated load (°C)72° C

Temperature rise at service factor load (°C)88° C

Start configurationDOL

Breakdown torque58 lb-ft

Pull-up torque50 lb-ft

Locked-rotor torque93 lb-ft

Starting current (A)220 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	35	70	87	95	98	99	99	0
Efficiency %	0	64.3	79	84.7	87.1	87.7	87.2	0
Speed rpm	1798	1789	1779	1768	1757	1744	1729	0
Line amps A	10.8	13.6	17.7	22.8	28.5	34.8	41.9	32.3
Power W	869	2213	3582	4981	6418	7909	9463	0
Torque lb-ft	0	5.6	11.2	16.8	22.4	28	33.6	0

Documents & CAD

For this product 5

Dimension DrawingDimension SheetPDF·106 KB·English

Dimension DrawingDimension SheetPDF·78 KB·English

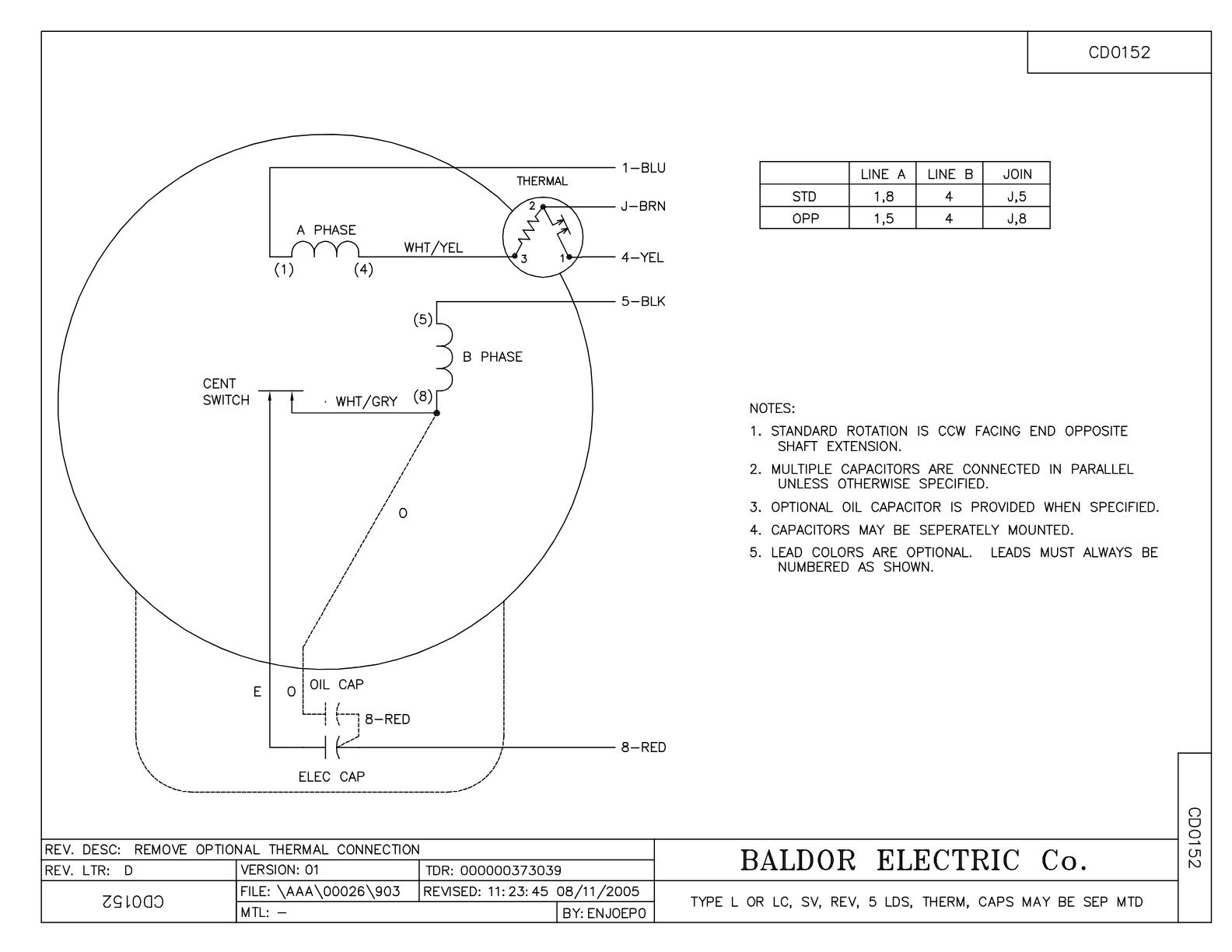

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·661 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor DEL3733TM motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	2 pcs	69 motors
TPLED1011SP	THERMAL 1PH 1.5 MAN REF LED941 TDR #5817	1 pcs	1 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	4 pcs	45 motors
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	1 pcs	141 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
