Baldor D5520P

Baldor-Reliance D5520P is a 20 HP, 1750 rpm, 500/150 V DC electric motor with a 328AT frame and TEFC (totally enclosed fan cooled) enclosure.

BaldorMFR # D5520PSKU # YLSEZRUMHURBKQL

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)150 V · 300 V

Frame328AT

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D5520P is a 20 HP, 1750 rpm, 500/150 V DC electric motor with a 328AT frame and TEFC (totally enclosed fan cooled) enclosure.

Baldor D5520P

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)150 V · 300 V

Frame328AT

Frame materialSteel

Output power20.000 HP

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)32.7 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTR. SHUNT

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF1

Overall length42.45 IN

Service factor1.00

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568125144

Documents & CAD

For this product 3

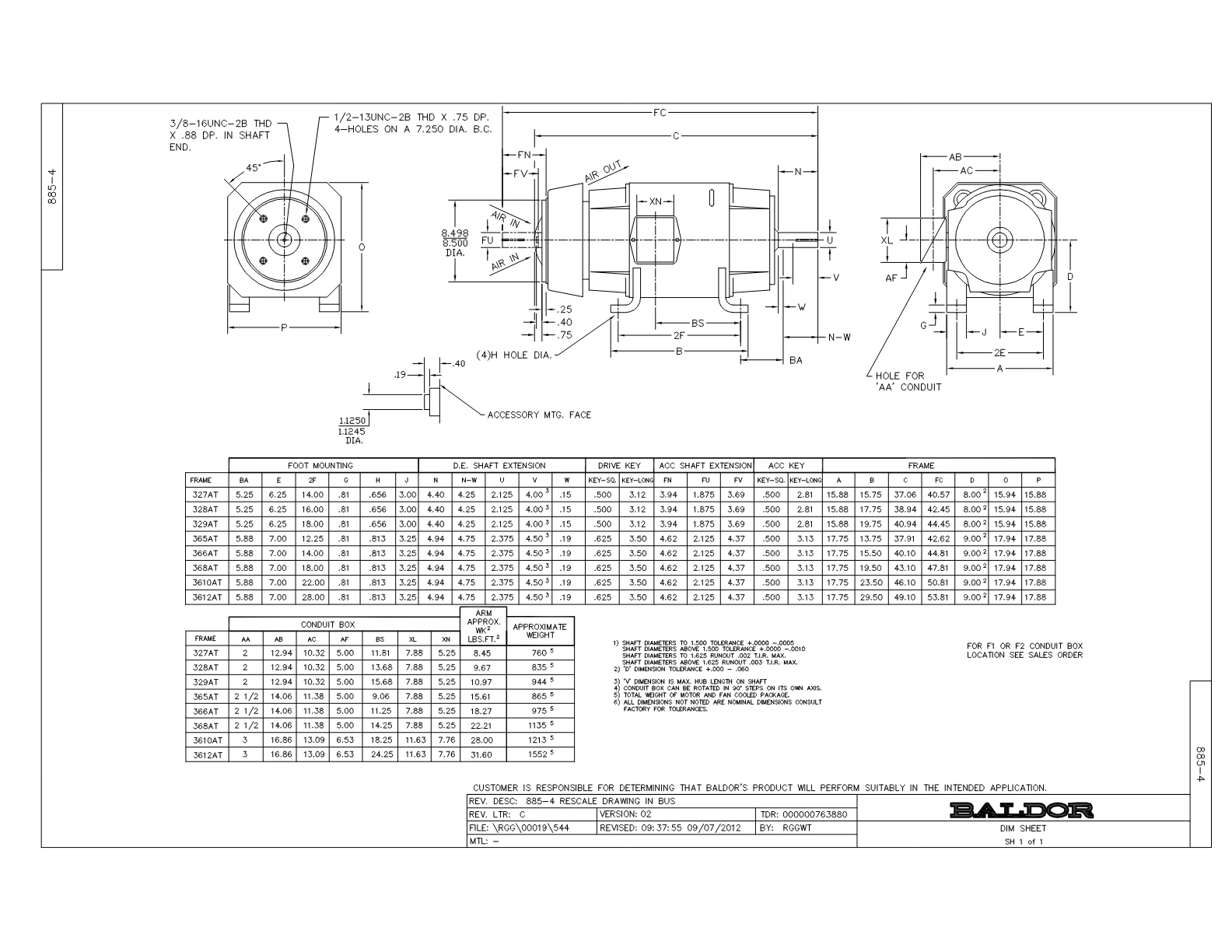

Dimension DrawingDimension SheetPDF·127 KB·English

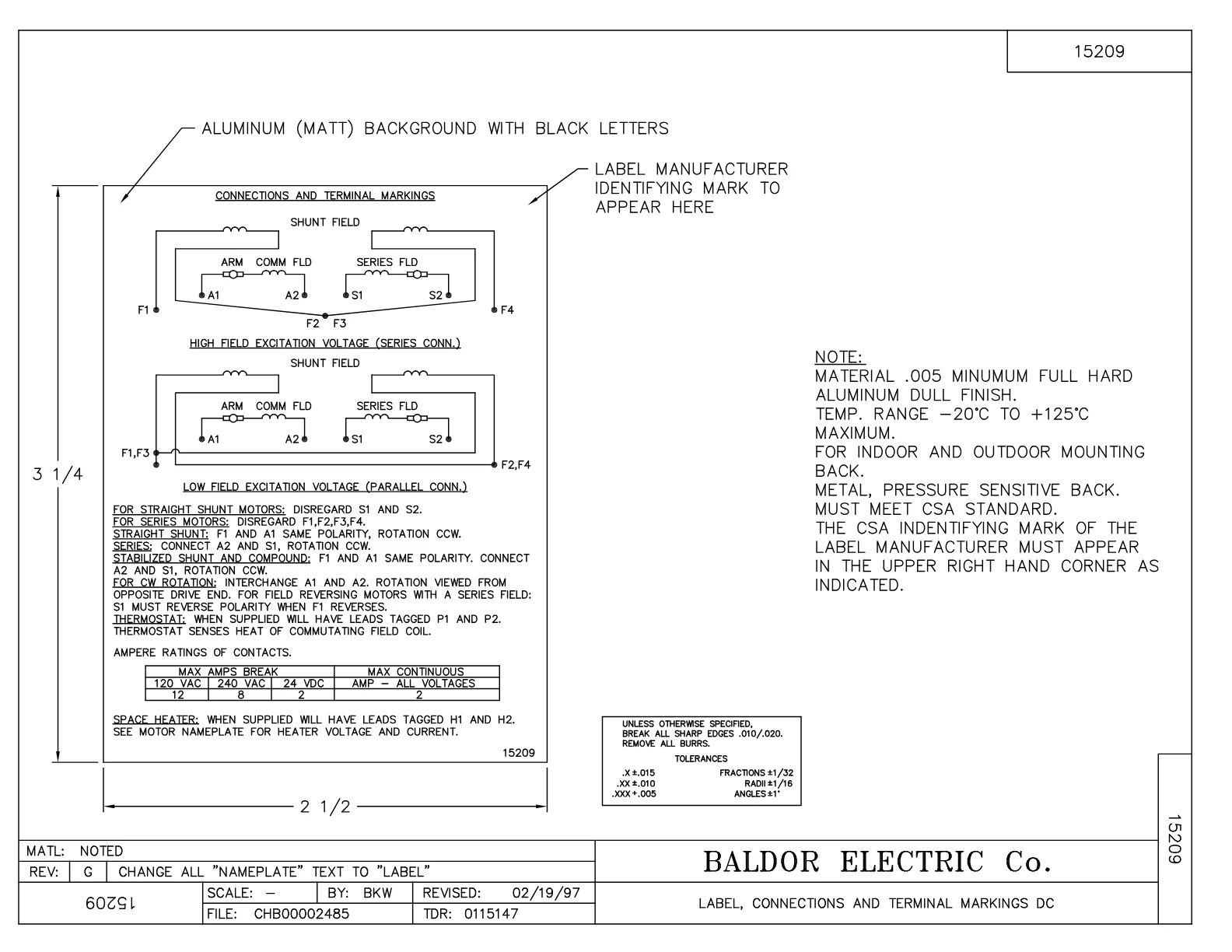

Wiring DiagramWiring DiagramPDF·92 KB·English

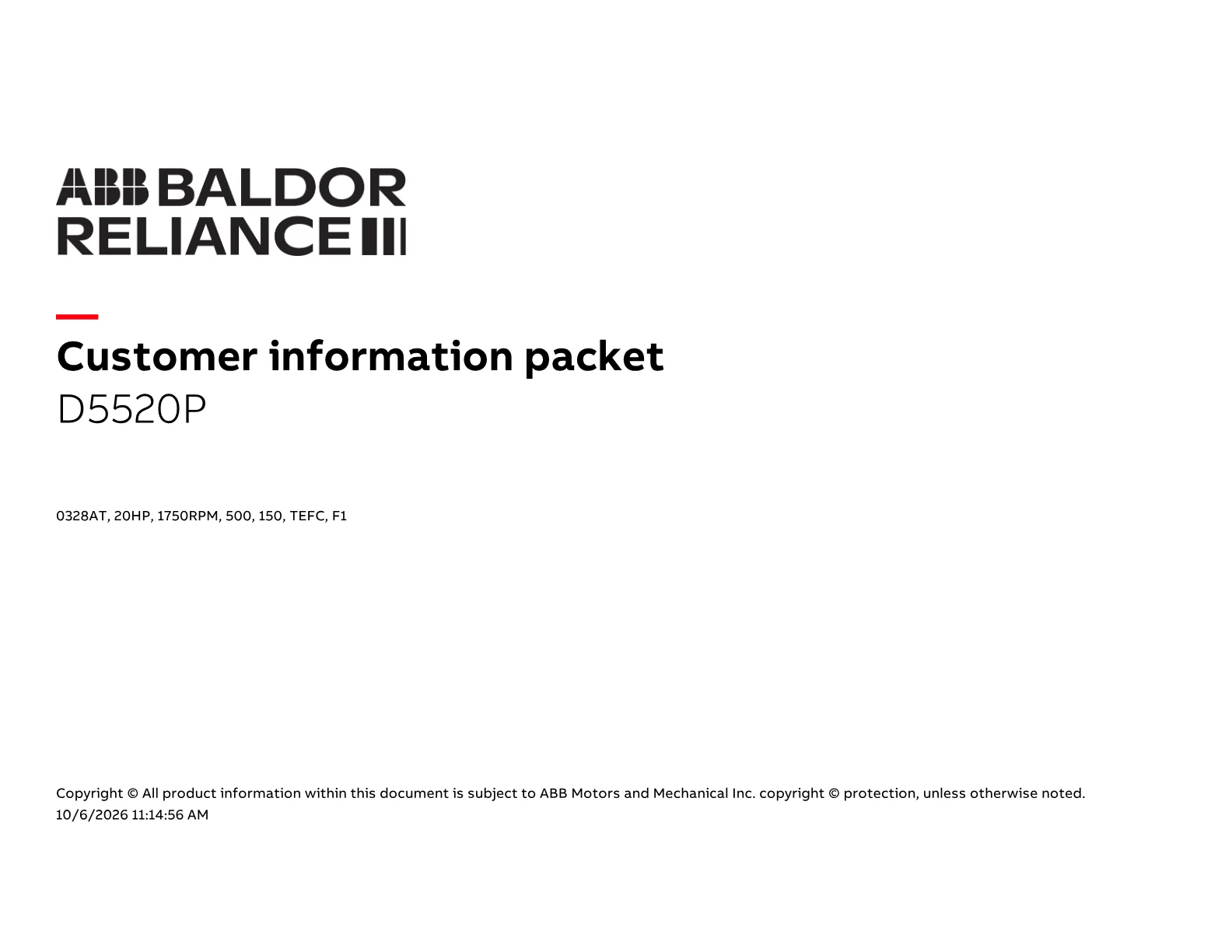

DatasheetDatasheetPDF·589 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English
