How can I get a price quote for Baldor D51200R-1BV?

You can request a fast quote for Baldor D51200R-1BV from Yılsa Engineering. Reference part number YLS5CQCZCNYPTNL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor D51200R-1BV in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor D51200R-1BV genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor D51200R-1BV?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor D51200R-1BV

D51200R-1BV

BaldorMFR # D51200R-1BVSKU # YLS5CQCZCNYPTNL

Armature voltage (V)500 V

Base speed (rpm)1150 rpm

EnclosureDPG-FV

Field voltage (V)300 V

FrameMC4013ATZ

Frame materialExposed Laminations

Have questions?Chat on WhatsApp

About This Product

Baldor D51200R-1BV (D51200R-1BV) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor D51200R-1BV — price, stock availability and technical specifications.

Baldor D51200R-1BV

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)500 V

Base speed (rpm)1150 rpm

EnclosureDPG-FV

Field voltage (V)300 V

FrameMC4013ATZ

Frame materialExposed Laminations

Output power200.000 HP

Agency approvalsCCSA US

Ambient temperature (°C)40 °C

Armature current (A)320.0 a

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTR. SHUNT

Frame prefixMC

Heater indicatorNo Heater

Insulation classF

IP ratingNONE

Lifting lugsStandard Lifting Lugs

Mounting arrangementF1

Service factor1.00

Shaft diameter3.624 IN

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568911440

Documents & CAD

For this product 3

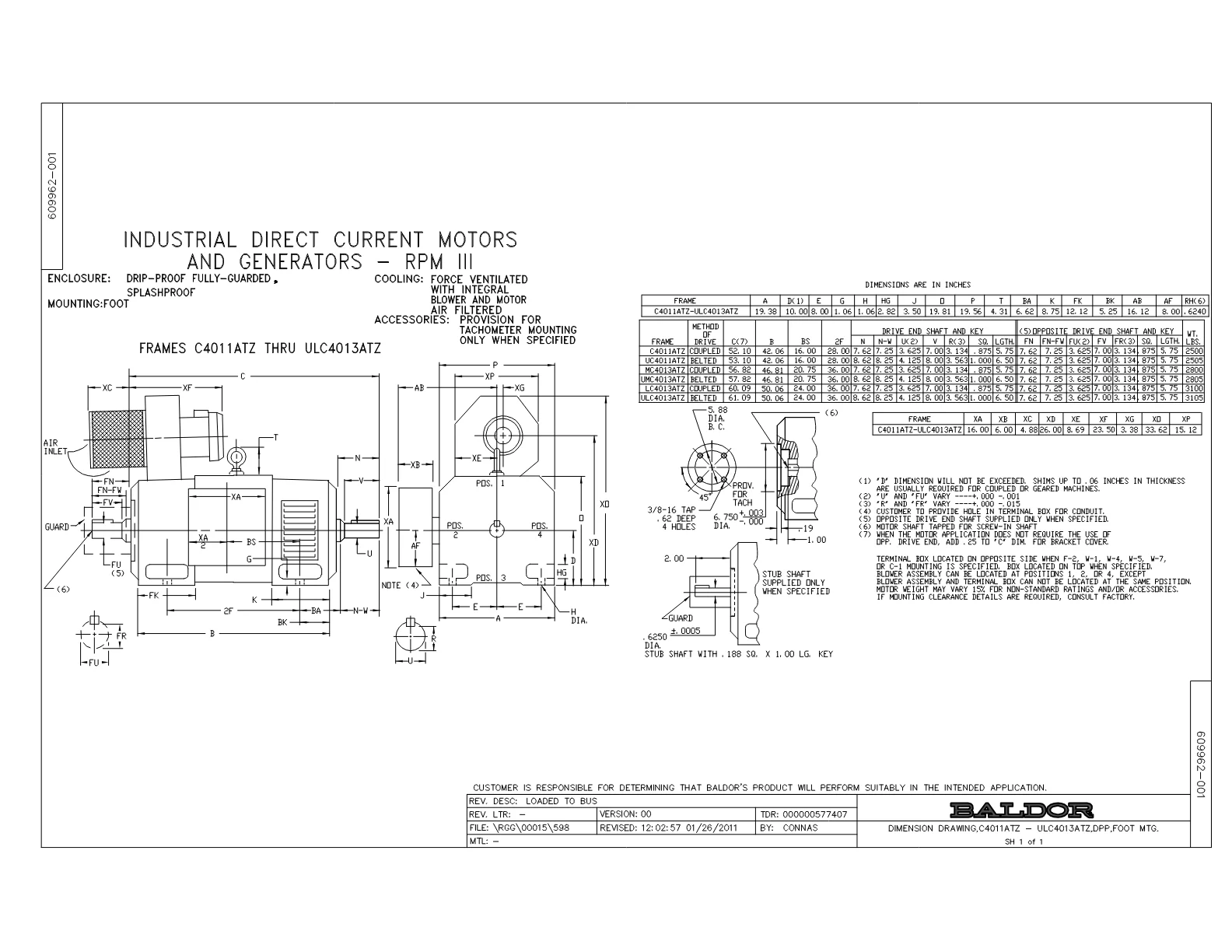

Dimension DrawingDimension SheetPDF·118 KB·English

Wiring DiagramWiring DiagramPDF·51 KB·English

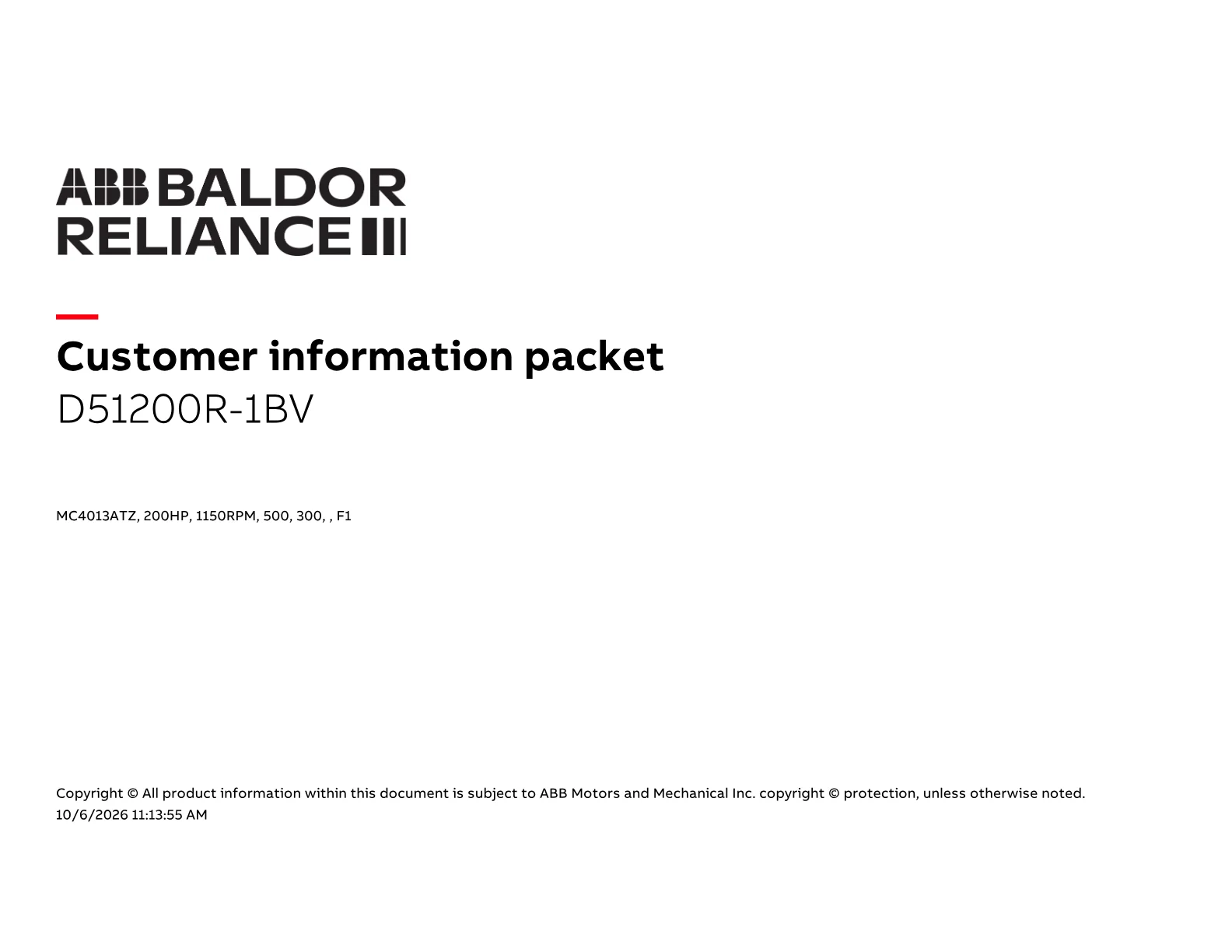

DatasheetDatasheetPDF·533 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·88 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor D51200R-1BV motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
