Baldor D5030P

Baldor-Reliance D5030P is a 30 HP, 1750 rpm, 500/150 V DC electric motor with a 288AT frame and DPFG (drip-proof fully guarded) enclosure.

BaldorMFR # D5030PSKU # YLS4GJDXQIKQWM

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)150 V · 300 V

Frame288AT

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D5030P is a 30 HP, 1750 rpm, 500/150 V DC electric motor with a 288AT frame and DPFG (drip-proof fully guarded) enclosure.

Baldor D5030P

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)150 V · 300 V

Frame288AT

Frame materialSteel

Output power30.000 HP

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)50.0 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTR. SHUNT

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF1

Overall length32.75 IN

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568125304

Documents & CAD

For this product 3

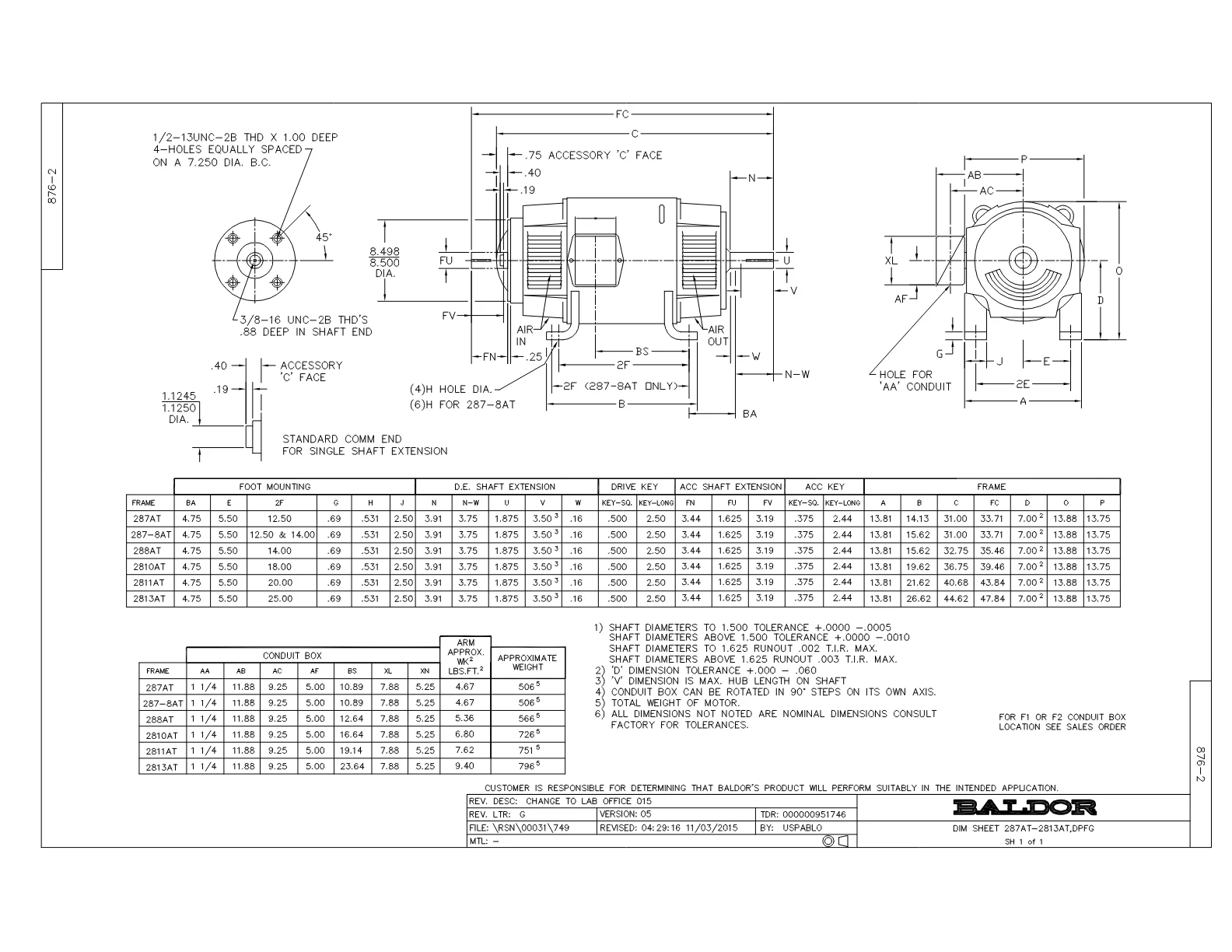

Dimension DrawingDimension SheetPDF·119 KB·English

Wiring DiagramWiring DiagramPDF·92 KB·English

DatasheetDatasheetPDF·581 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English
