How can I get a price quote for Baldor D50125P?

You can request a fast quote for Baldor D50125P from Yılsa Engineering. Reference part number YLSEDW7VIYUCTCI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor D50125P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor D50125P genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor D50125P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor D50125P

Baldor-Reliance D50125P is a 125 HP, 1750/2000 rpm DC electric motor with a 407AT frame and DPFG (drip-proof fully guarded) enclosure.

BaldorMFR # D50125PSKU # YLSEDW7VIYUCTCI

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)150 V · 300 V

Frame407AT

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D50125P is a 125 HP, 1750/2000 rpm DC electric motor with a 407AT frame and DPFG (drip-proof fully guarded) enclosure.

Baldor D50125P

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)150 V · 300 V

Frame407AT

Frame materialSteel

Output power125.000 HP

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)200.0 a

Base indicatorRigid

Duty ratingCONT

Field winding typeSTR. SHUNT

Insulation classF

Mounting arrangementF1

Overall length40.13 IN

Service factor1.00

Shaft diameter2.625 IN

Motor standardsNEMA

UPC781568125403

Documents & CAD

For this product 3

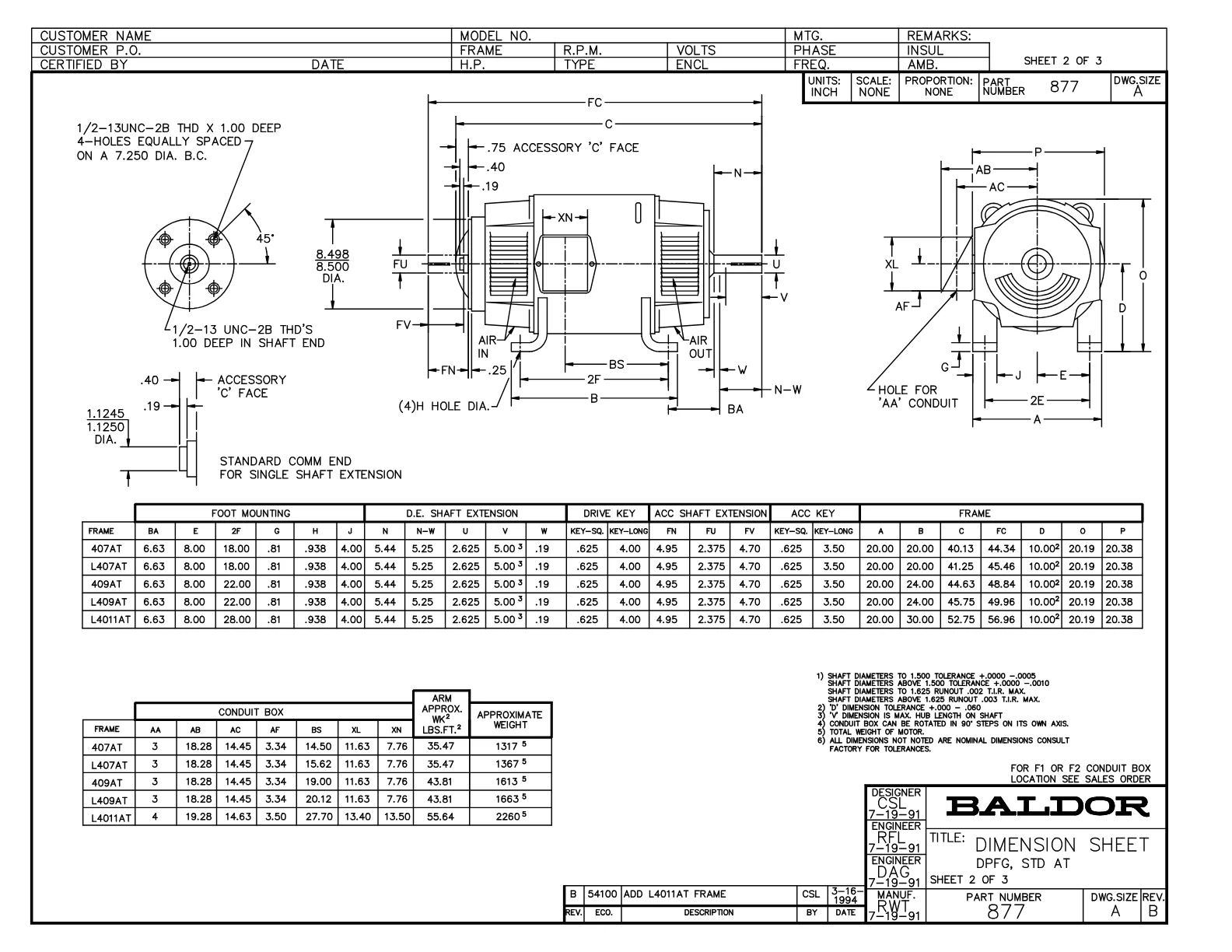

Dimension DrawingDimension SheetPDF·141 KB·English

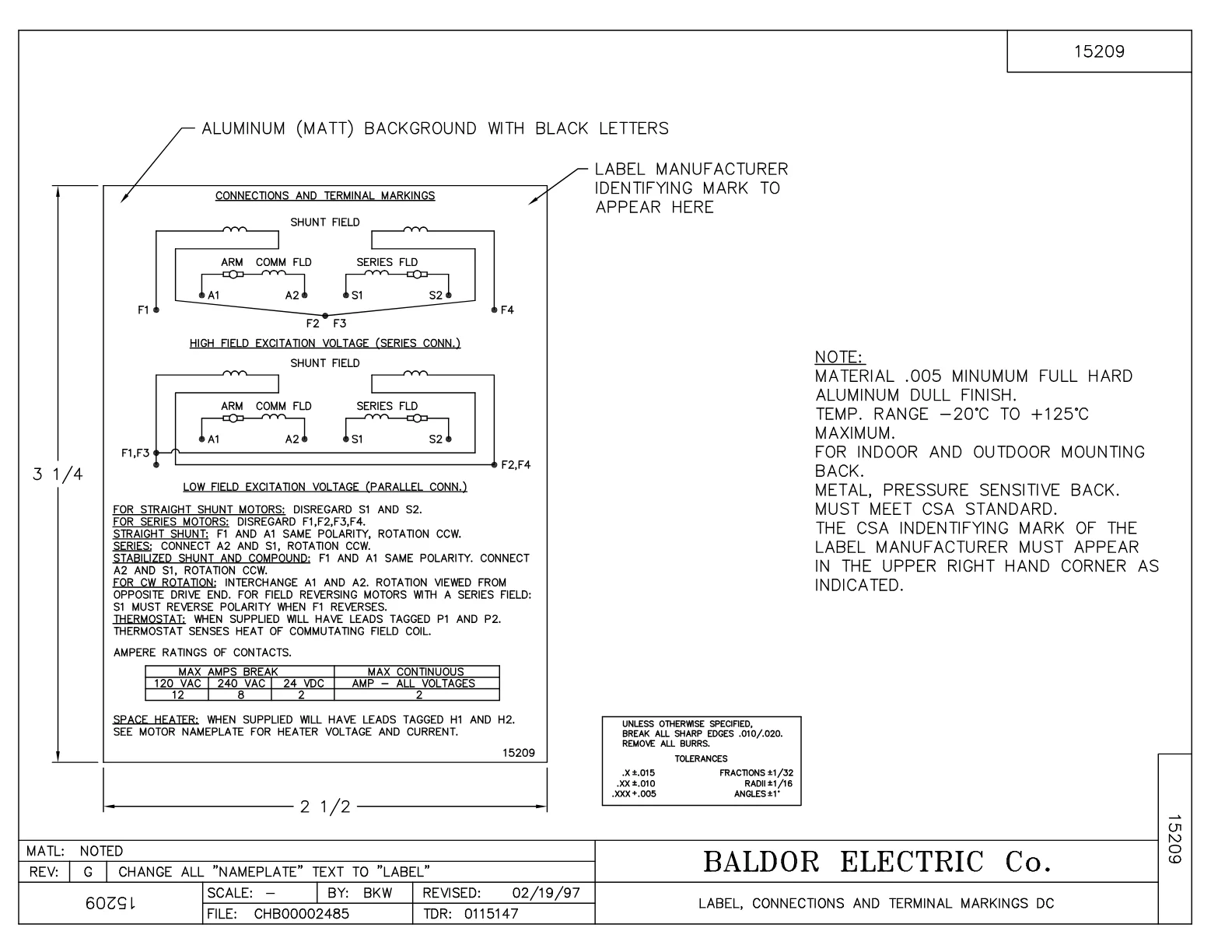

Wiring DiagramWiring DiagramPDF·92 KB·English

DatasheetDatasheetPDF·605 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor D50125P motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
40019-3	BRUSH,400 FR. SERIES E-77 SGL/CARBON	8 pcs	4 motors

Accessories 1

Genuine accessories that can be used with the Baldor D50125P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
