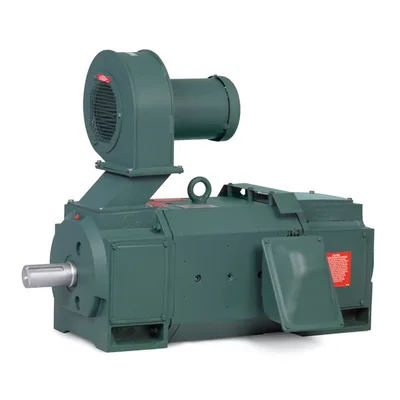

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor D5010RS-BV

Baldor-Reliance D5010RS-BV is a 10 HP, 1750 rpm DC electric motor with an SC2113ATZ frame, DP (drip-proof) enclosure and DPG-FV (guarded, force ventilated) design.

BaldorMFR # D5010RS-BVSKU # YLSHX7RMFDBMNZ

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDP

Field voltage (V)300 V

FrameSC2113ATZ

Frame materialExposed Laminations

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D5010RS-BV is a 10 HP, 1750 rpm DC electric motor with an SC2113ATZ frame, DP (drip-proof) enclosure and DPG-FV (guarded, force ventilated) design.

Baldor D5010RS-BV

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDP

Field voltage (V)300 V

FrameSC2113ATZ

Frame materialExposed Laminations

Output power10.000 HP

Agency approvalsCCSA US

Ambient temperature (°C)40 °C

Armature current (A)18.0 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTAB SHUNT

Frame prefixSC

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF1

Overall length28.38 IN

Service factor1.00

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568462645

Documents & CAD

For this product 5

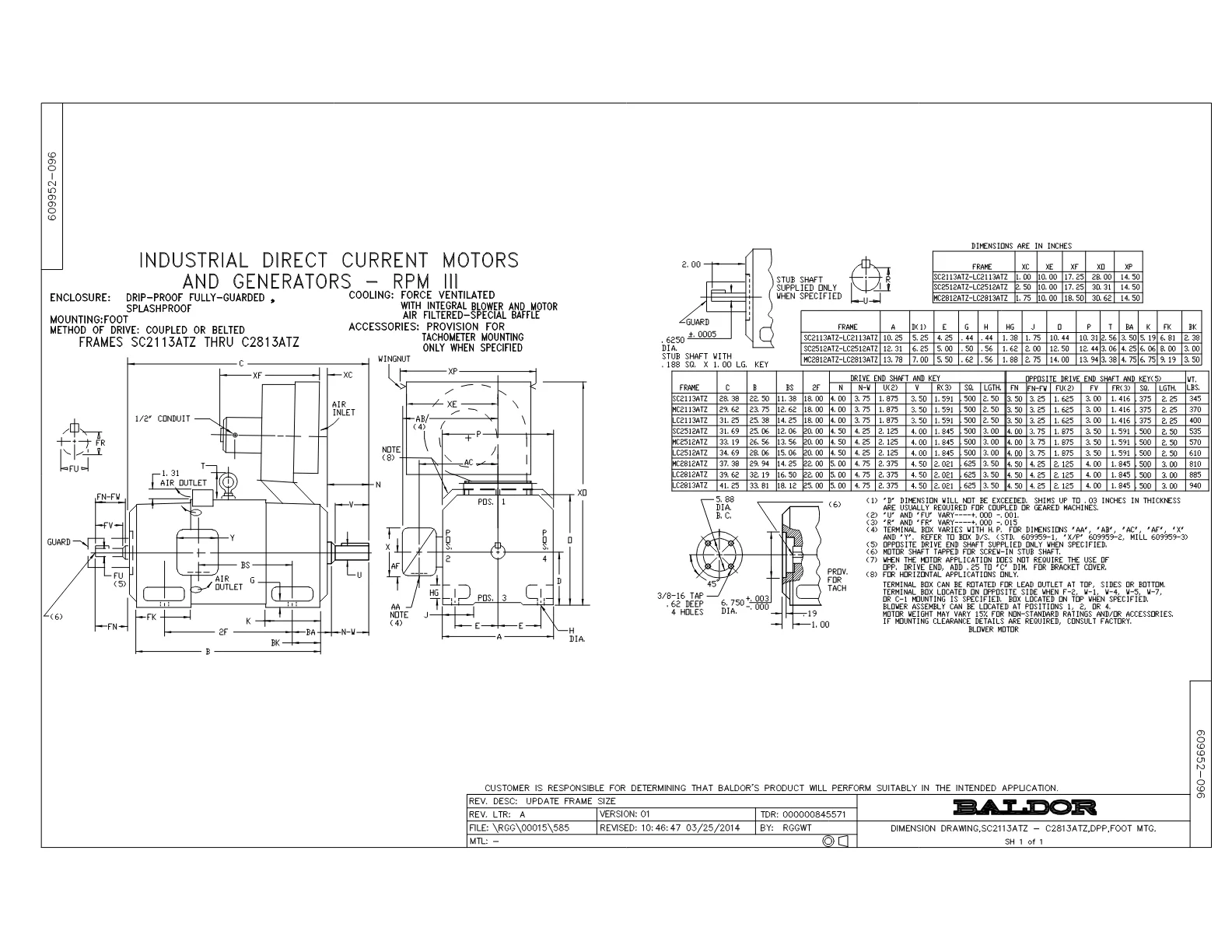

Dimension DrawingDimension SheetPDF·127 KB·English

Dimension DrawingDimension SheetPDF·132 KB·English

Dimension DrawingDimension SheetPDF·54 KB·English

Wiring DiagramWiring DiagramPDF·57 KB·English

DatasheetDatasheetPDF·736 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·88 KB·English

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor D5010RS-BV motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
419904-51E	BRUSH N	4 pcs	5 motors
706364051AA	BRHLD ADD HARDWARE	4 pcs	26 motors
610490001AH	.75HP,3450//2850RPM,3PH,60//50HZ,56C,351	1 pcs	39 motors
034017014AB	LCKW 3/8 STD. PLATED	4 pcs	376 motors
706320005A	CONDUIT BOX	1 pcs	26 motors
065564000B	GASK 250-280	1 pcs	26 motors
