How can I get a price quote for Baldor D50100RS-BV?

You can request a fast quote for Baldor D50100RS-BV from Yılsa Engineering. Reference part number YLSG4YKV99YBQDZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor D50100RS-BV in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor D50100RS-BV genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor D50100RS-BV?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor D50100RS-BV

Baldor-Reliance D50100RS-BV is a 100 HP, 1750 rpm DC electric motor with an MC3212ATZ frame, DP (drip-proof) enclosure and DPG-FV (guarded, force ventilated) design.

BaldorMFR # D50100RS-BVSKU # YLSG4YKV99YBQDZ

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDP

Field voltage (V)300 V

FrameMC3212ATZ

Frame materialExposed Laminations

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D50100RS-BV is a 100 HP, 1750 rpm DC electric motor with an MC3212ATZ frame, DP (drip-proof) enclosure and DPG-FV (guarded, force ventilated) design.

Baldor D50100RS-BV

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDP

Field voltage (V)300 V

FrameMC3212ATZ

Frame materialExposed Laminations

Output power100.000 HP

Agency approvalsCCSA US

Ambient temperature (°C)40 °C

Armature current (A)162.0 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTAB SHUNT

Frame prefixMC

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF2

Overall length39.50 IN

Service factor1.00

Shaft diameter2.624 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568462621

Documents & CAD

For this product 5

Dimension DrawingDimension SheetPDF·166 KB·English

Dimension DrawingDimension SheetPDF·101 KB·English

Dimension DrawingDimension SheetPDF·54 KB·English

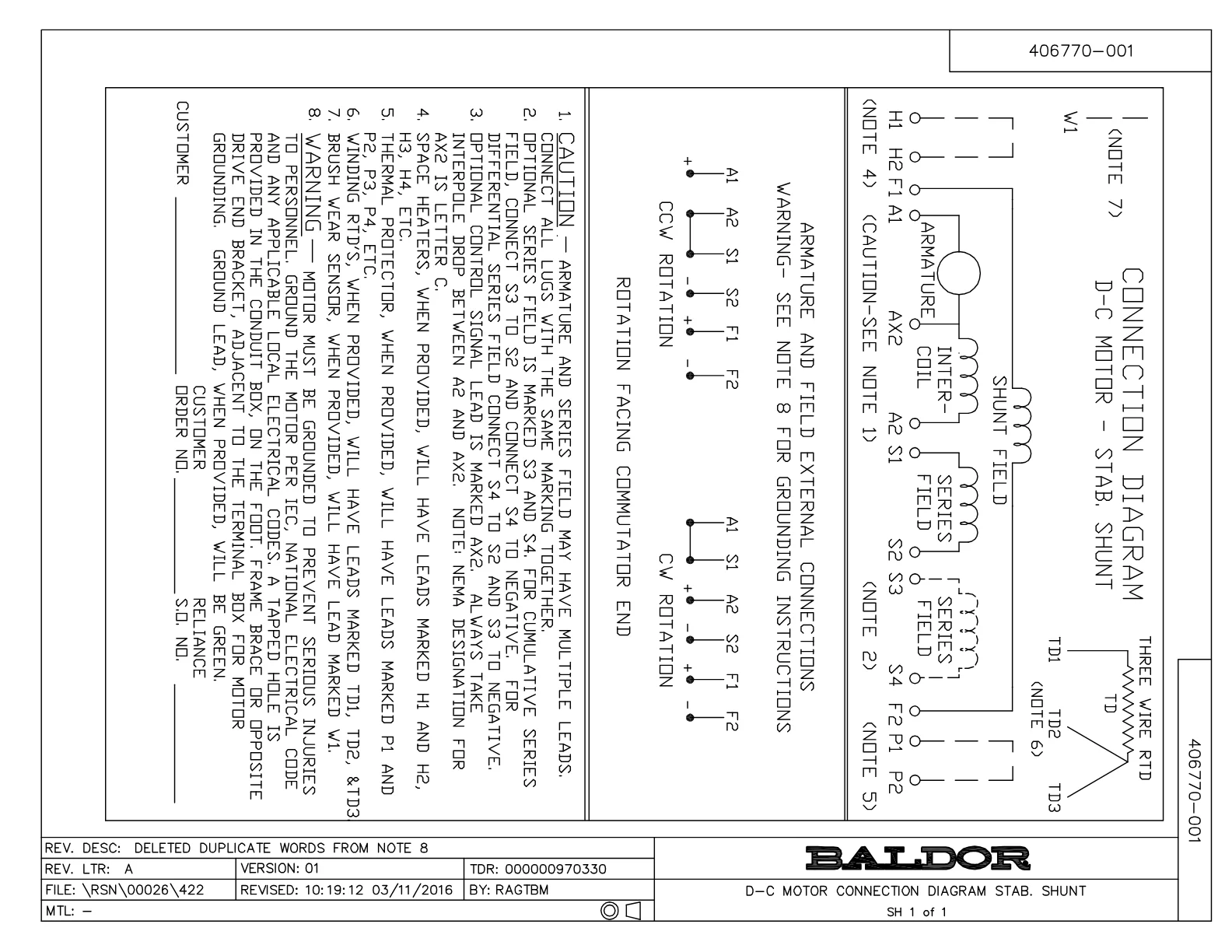

Wiring DiagramWiring DiagramPDF·57 KB·English

DatasheetDatasheetPDF·744 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·88 KB·English

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor D50100RS-BV motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
419904-52AB	BRUSH C	4 pcs	9 motors
036500013AB	M16 X 2.0 HX NUT,ODE BRKT 304589	8 pcs	45 motors
034017014AB	LCKW 3/8 STD. PLATED	4 pcs	376 motors
610490001DG	2HP,3450//2890RPM,3PH,60//50HZ,56C,3532M	1 pcs	10 motors
