How can I get a price quote for Baldor D2510P?

You can request a fast quote for Baldor D2510P from Yılsa Engineering. Reference part number YLS90N86Q31P6WK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor D2510P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor D2510P genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor D2510P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor D2510P

DC Electric Motor - Shunt Wound, Brushed, 240 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 259AT Frame

BaldorMFR # D2510PSKU # YLS90N86Q31P6WK

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)300 V

Frame259AT

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

DC Electric Motor - Shunt Wound, Brushed, 240 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 259AT Frame

Baldor D2510P

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)300 V

Frame259AT

Frame materialSteel

Output power10.000 HP

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)34.3 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTR. SHUNT

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF1

Overall length36.53 IN

Service factor1.00

Shaft diameter1.624 IN

Shaft extension locationDouble Shaft

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568125090

Motor FamilyShunt Wound

Motor TypeBrushed

Motor Horsepower10 hp

Field Full Load Current1.72 A

Drive End Bearing6209

Weight450.00 lbs

Opposite Drive End Bearing6207

Recommended ControlBc20H210-Cl

Recommended Tach. KitTkp2136Xpt

Typical ApplicationConveyors, Packaging Machinery and Other Applications for Scar Drive Motors

Documents & CAD

For this product 3

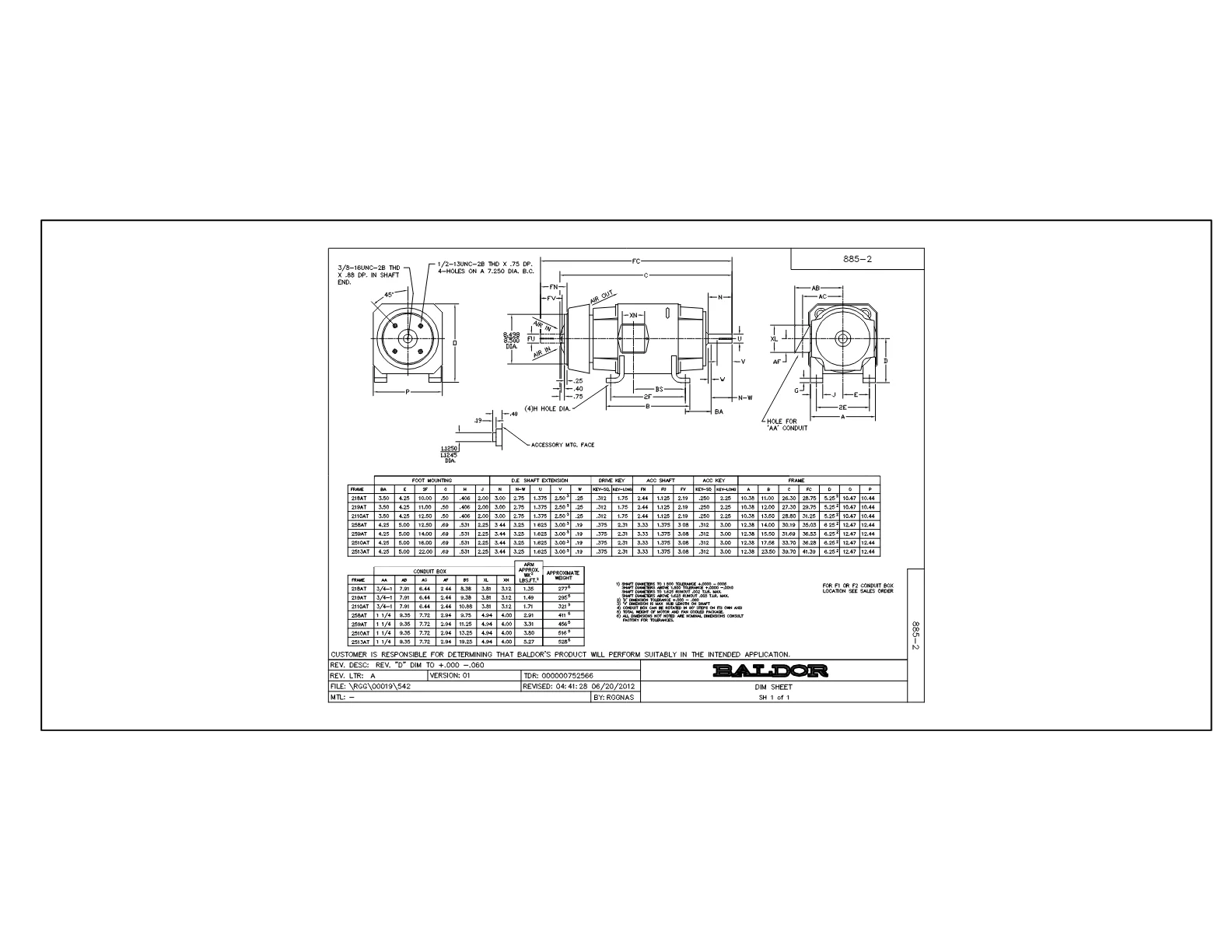

Dimension DrawingDimension SheetPDF·100 KB·English

Wiring DiagramWiring DiagramPDF·92 KB·English

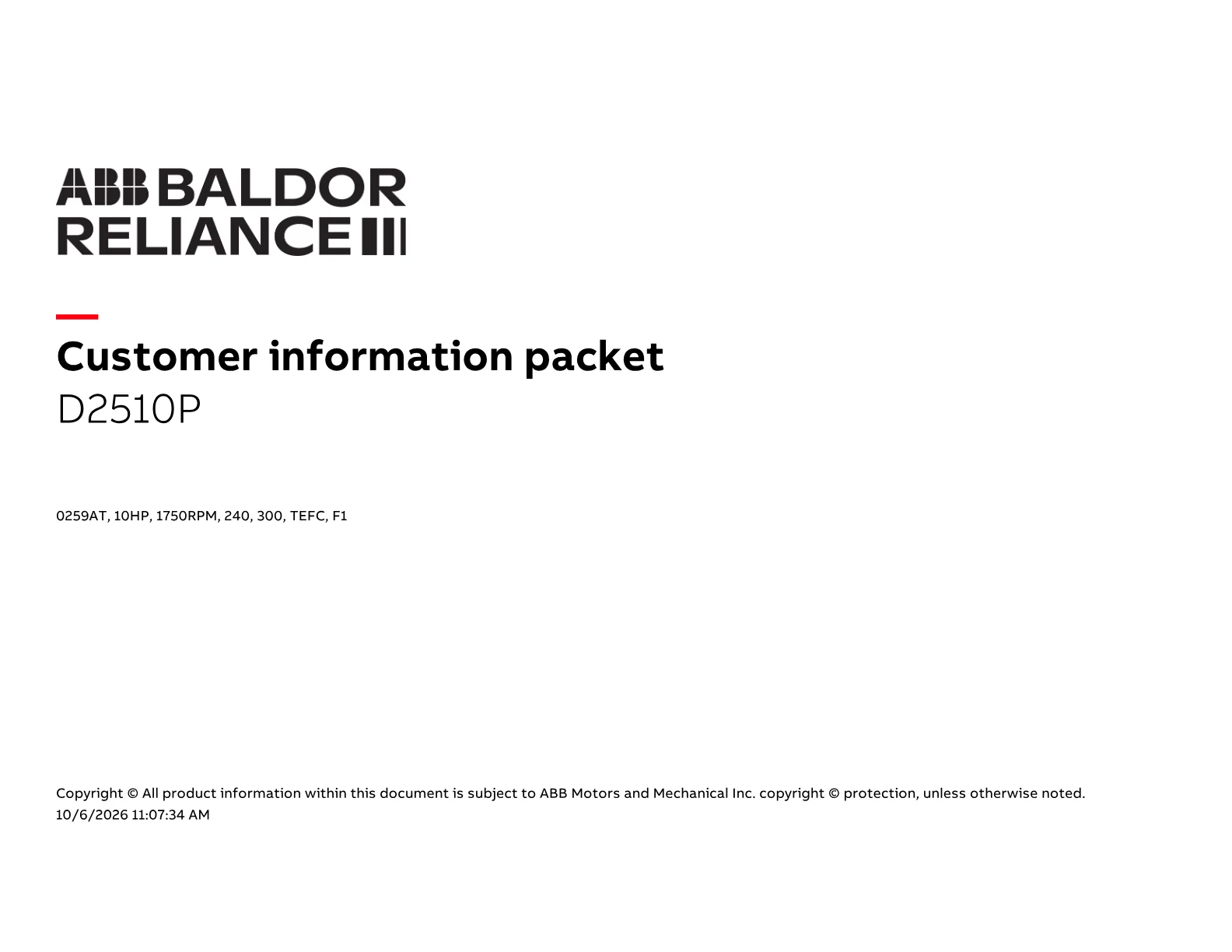

DatasheetDatasheetPDF·562 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor D2510P motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
150986-25-1SP	BRUSH,250 FR. SERIES E-41	2 pcs	9 motors

Accessories 1

Genuine accessories that can be used with the Baldor D2510P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
