How can I get a price quote for Baldor D2507P?

You can request a fast quote for Baldor D2507P from Yılsa Engineering. Reference part number YLSOBUYA0GM2ATT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor D2507P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor D2507P genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor D2507P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor D2507P

Baldor-Reliance D2507P is a 7.5 HP, 1750 rpm, 240/150 V DC electric motor with a 2110AT frame and TEFC (totally enclosed fan cooled) enclosure.

BaldorMFR # D2507PSKU # YLSOBUYA0GM2ATT

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)150 V · 300 V

Frame2110AT

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D2507P is a 7.5 HP, 1750 rpm, 240/150 V DC electric motor with a 2110AT frame and TEFC (totally enclosed fan cooled) enclosure.

Baldor D2507P

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)150 V · 300 V

Frame2110AT

Frame materialSteel

Output power7.500 HP

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)26.6 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTR. SHUNT

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF1

Overall length29.60 IN

Service factor1.00

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568136133

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·100 KB·English

Dimension DrawingDimension SheetPDF·78 KB·English

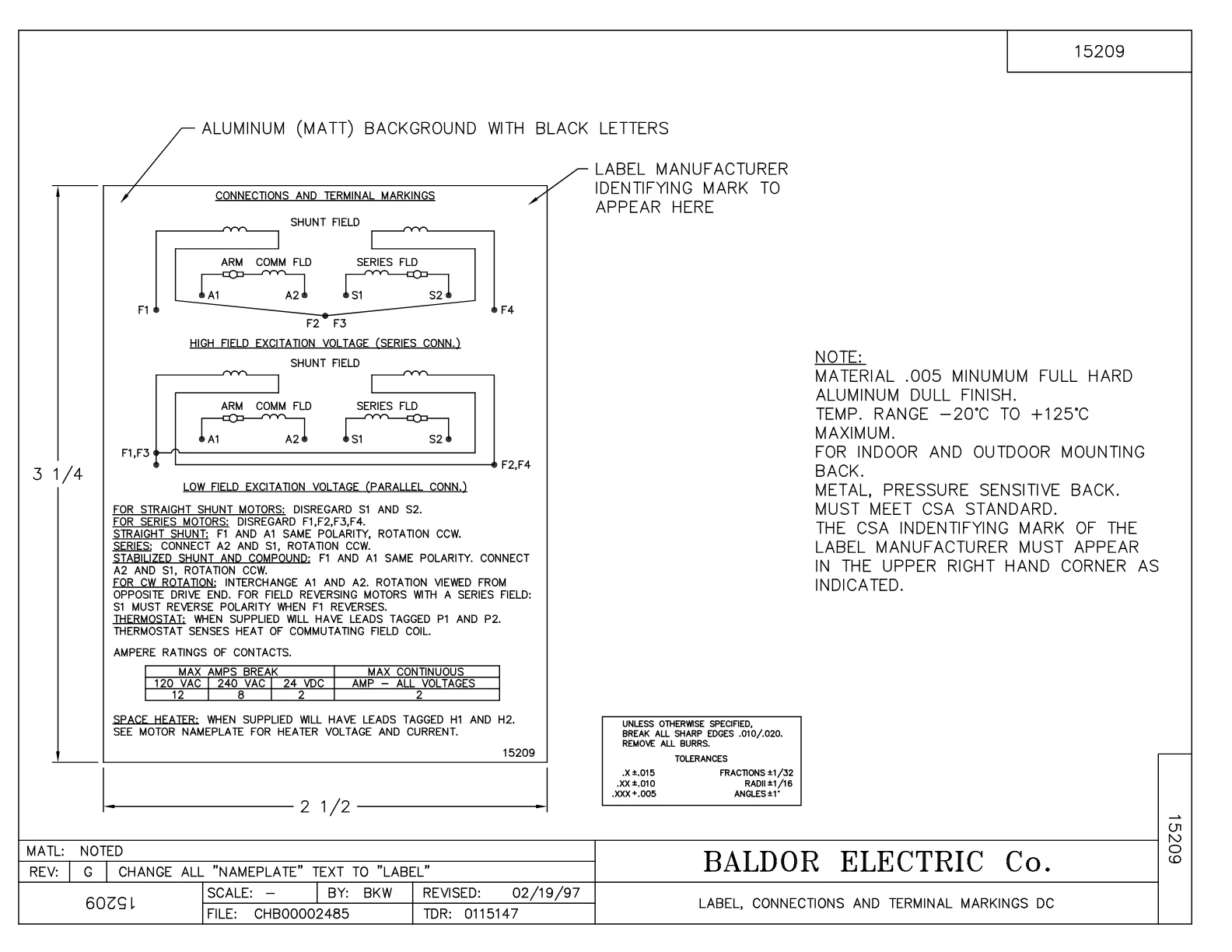

Wiring DiagramWiring DiagramPDF·92 KB·English

DatasheetDatasheetPDF·637 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor D2507P motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
150986-21-1SP	BRUSH,210 FR. SERIES T563 NATIONAL	2 pcs	6 motors

Accessories 1

Genuine accessories that can be used with the Baldor D2507P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
