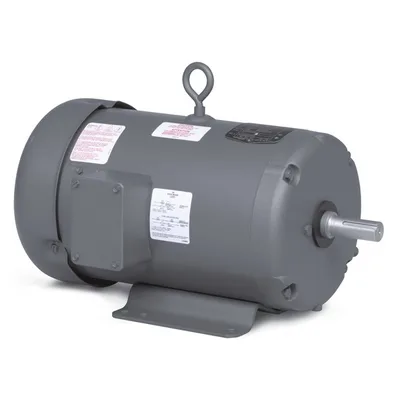

Baldor D2305

Baldor-Reliance D2305 is a 1.5 HP, 1750 rpm DC electric motor with a 184 frame and TEFC (totally enclosed fan cooled) enclosure from the WP Below Decks Marine Duty family.

BaldorMFR # D2305SKU # YLSHRUUEMZW9BUJ

Armature voltage (V)230 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)230 V

Frame184

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D2305 is a 1.5 HP, 1750 rpm DC electric motor with a 184 frame and TEFC (totally enclosed fan cooled) enclosure from the WP Below Decks Marine Duty family.

Baldor D2305

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)230 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)230 V

Frame184

Frame materialSteel

Output power1.500 HP

Hazardous area class and groupNone

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Armature current (A)5.8 a

Armature inertia30.342 lb-ft2

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeCOMPOUND

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 18 AWG · 2 @ 12 AWG

Mounting arrangementF1

Overall length16.79 IN

Product familyWP Below Decks Marine Duty

Pulley end bearing typeSealed Bearing

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Motor standardsNEMA

Hazardous area divisionNot Applicable

UPC781568124666

Performance

General characteristics· 230 Arm V, 1.5 HP

Armature resistance (ohms)1.3495 ohms

Series winding resistance (ohms)0.2714 ohms

Commutating winding resistance (ohms)0.8124 ohms

Shunt winding resistance (ohms)739.9142 ohms

Armature inertia30.3419 LI²

Documents & CAD

For this product 3

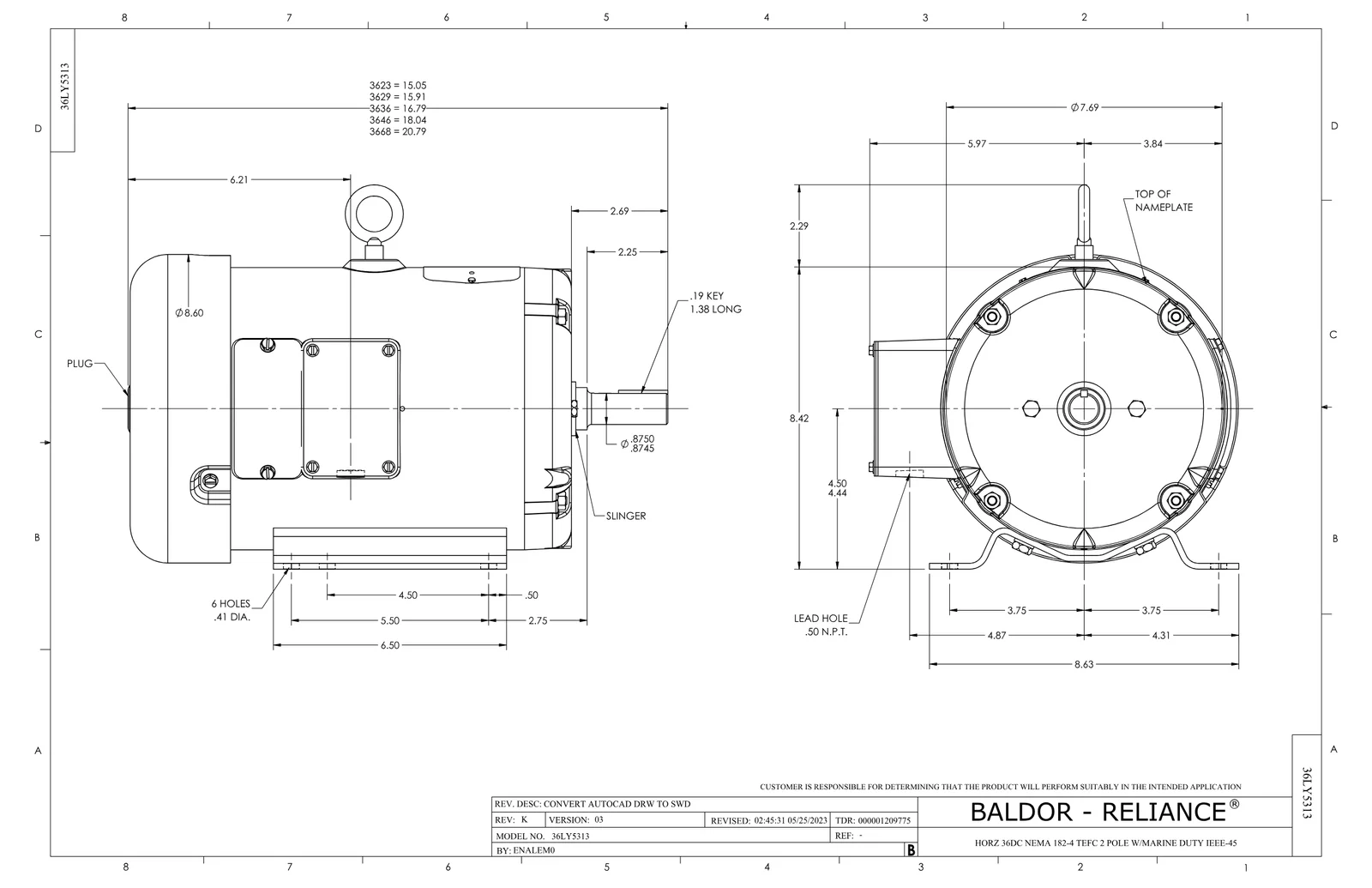

Dimension DrawingDimension SheetPDF·112 KB·English

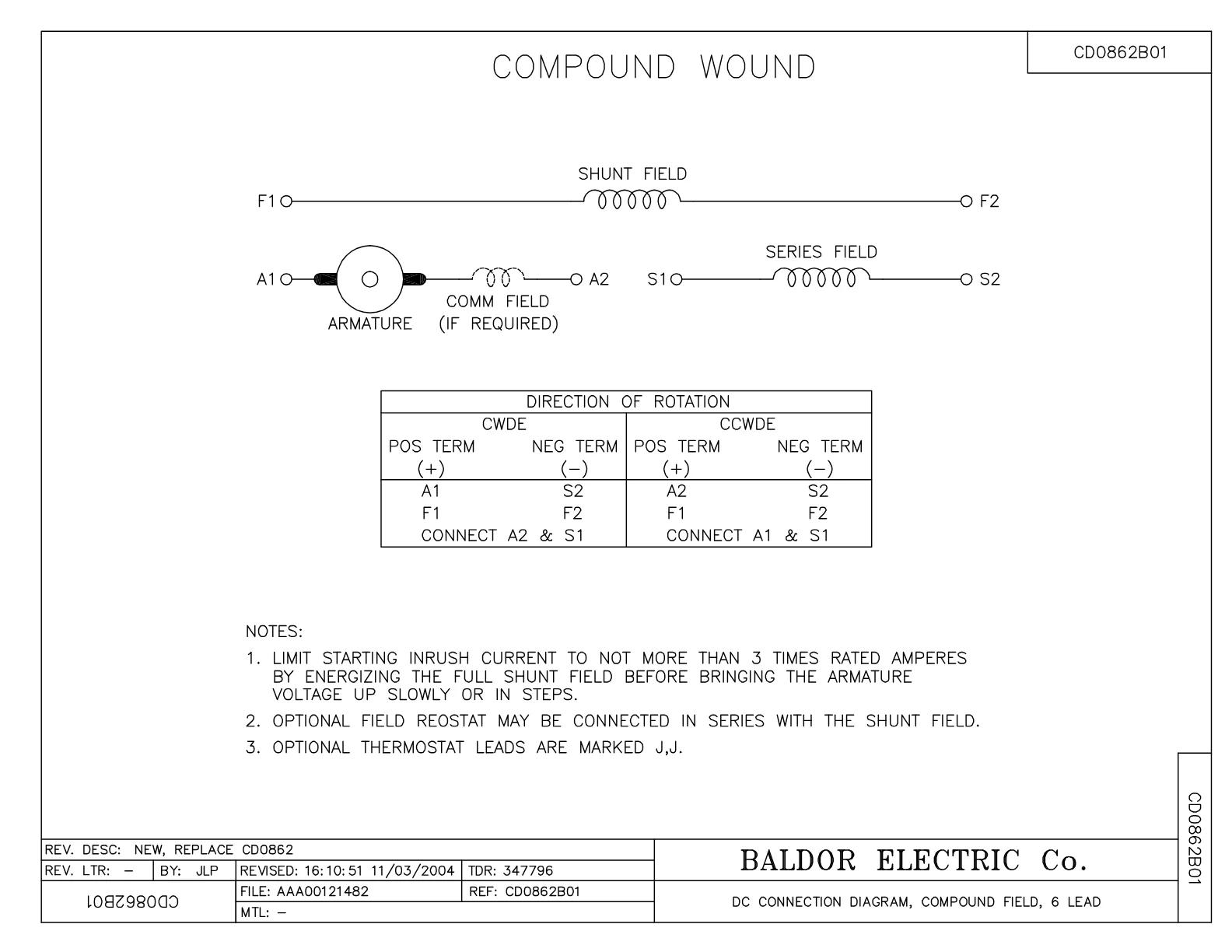

Wiring DiagramWiring DiagramPDF·36 KB·English

DatasheetDatasheetPDF·585 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor D2305 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
36GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK #SV-3	1 pcs	8 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
