Baldor D2304

Baldor-Reliance D2304 is a 1 HP, 1750 rpm general purpose DC electric motor with a 56 frame and TEFC (totally enclosed fan cooled) enclosure.

BaldorMFR # D2304SKU # YLSWYIN0JQHLD1V

Armature voltage (V)230 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)230 V

Frame56

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D2304 is a 1 HP, 1750 rpm general purpose DC electric motor with a 56 frame and TEFC (totally enclosed fan cooled) enclosure.

Baldor D2304

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)230 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)230 V

Frame56

Frame materialSteel

Output power1.000 HP

Hazardous area class and groupNone

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Armature current (A)4.0 a

Armature inertia13.657 lb-ft2

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeCOMPOUND

Heater indicatorNo Heater

Insulation classF

Lifting lugsNo Lifting Lugs

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 14 AWG · 2 @ 18 AWG

Mounting arrangementF1

Overall length15.44 IN

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Motor standardsNEMA

Hazardous area divisionNot Applicable

UPC781568124659

Performance

General characteristics· 230 Arm V, 1 HP

Armature resistance (ohms)3.18 ohms

Series winding resistance (ohms)7.34 ohms

Commutating winding resistance (ohms)2.35 ohms

Shunt winding resistance (ohms)868 ohms

Armature inertia13.657 LI²

Documents & CAD

For this product 2

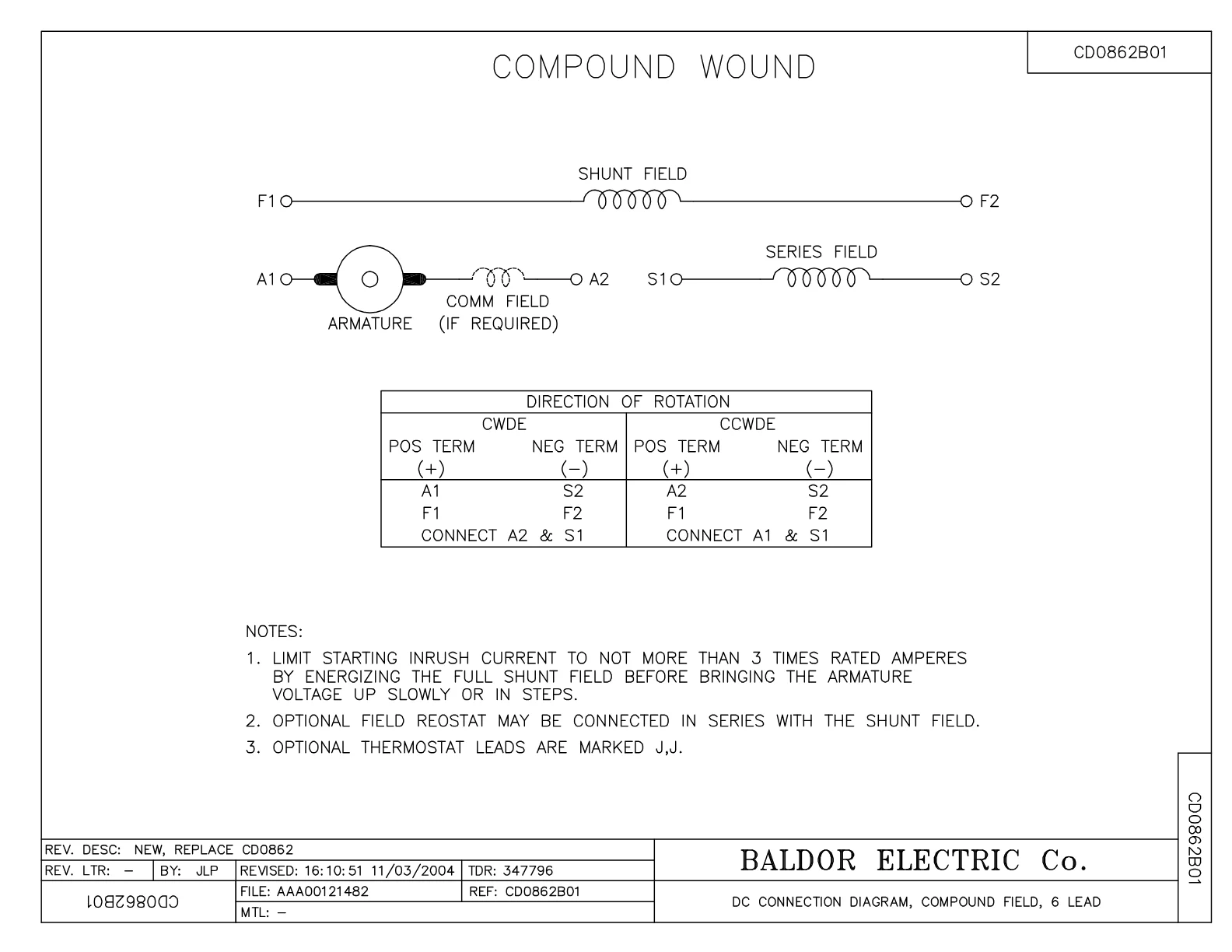

Wiring DiagramWiring DiagramPDF·36 KB·English

DatasheetDatasheetPDF·583 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·111 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor D2304 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
BP5201A14SP	BRUSH HOLDER ASSY	1 pcs	20 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
HA1005A03SP	SLINGER, OD 1.750, ID .938, 205 BRG	1 pcs	117 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
