Baldor D2030R DC Motors
DC Electric Motor - Wound Field, Brushed, 240 V, 1750 rpm rpm, SC2512ATZ Frame
ITEM #6907b1c0ad9cc32ae1313328 MFR #D2030R SKU #YLS4JNEZ21H6SFZ
Quick Specs
Motor Family: Wound Field
Motor Type: Brushed
Motor Horsepower: 30 hp
DC Armature Voltage: 240 V
Base RPM: 1750 rpm
Enclosure Type: DPG (Drip-Proof Guarded)
Overview
DC Electric Motor - Wound Field, Brushed, 240 V, 1750 rpm rpm, SC2512ATZ Frame
Specifications
Motor Family Wound Field
Motor Type Brushed
Motor Horsepower 30 hp
DC Armature Voltage 240 V
Base RPM 1750 rpm
Enclosure Type DPG (Drip-Proof Guarded)

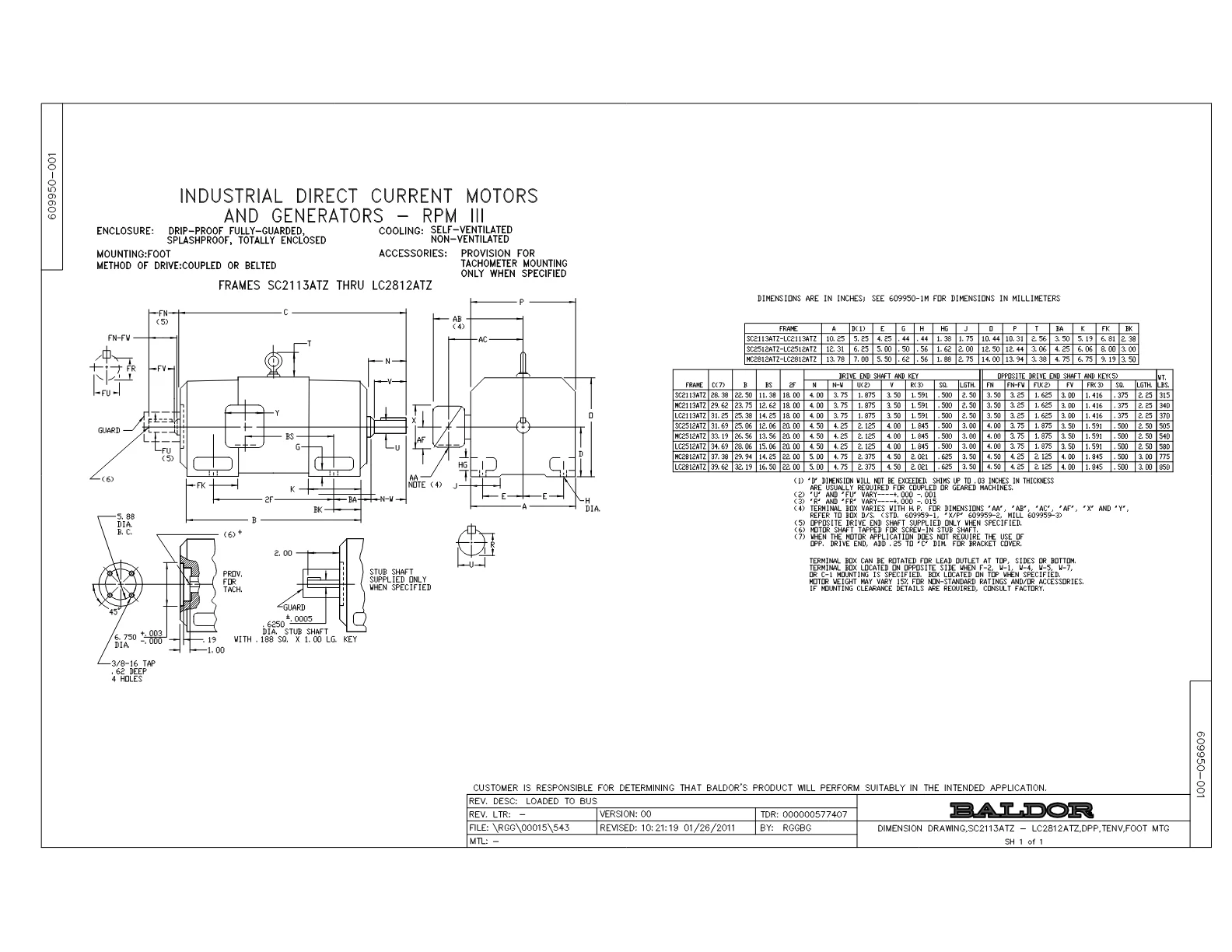

NEMA / IEC Frame Size SC2512ATZ
DC Field Voltage 150 V
Field Full Load Current 3.45 A
Insulation Class F
Standards Met NEMA
Weight 505.00 lbs
UPC_NO 781568462485
Mounting Type Rigid Base
