How can I get a price quote for Baldor D2030P?

You can request a fast quote for Baldor D2030P from Yılsa Engineering. Reference part number YLSXDI3XB8IBWNL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor D2030P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor D2030P genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor D2030P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor D2030P

Baldor-Reliance D2030P is a 30 HP, 1750 rpm, 240/150 V DC electric motor with a 288AT frame and DPFG (drip-proof fully guarded) enclosure.

BaldorMFR # D2030PSKU # YLSXDI3XB8IBWNL

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)150 V · 300 V

Frame288AT

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D2030P is a 30 HP, 1750 rpm, 240/150 V DC electric motor with a 288AT frame and DPFG (drip-proof fully guarded) enclosure.

Baldor D2030P

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)150 V · 300 V

Frame288AT

Frame materialSteel

Output power30.000 HP

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)106.0 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTR. SHUNT

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF1

Overall length32.75 IN

Service factor1.00

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568125298

Documents & CAD

For this product 3

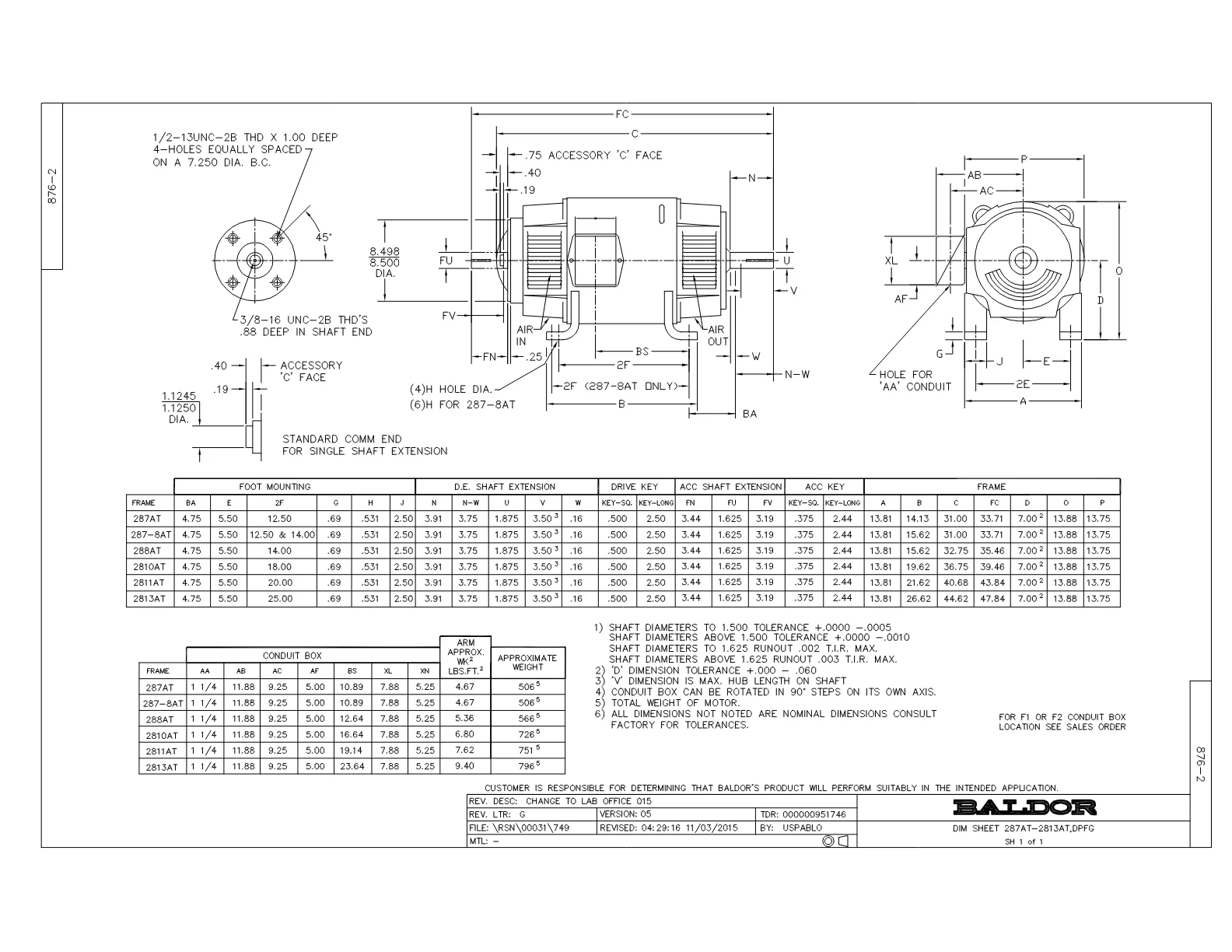

Dimension DrawingDimension SheetPDF·119 KB·English

Wiring DiagramWiring DiagramPDF·92 KB·English

DatasheetDatasheetPDF·581 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor D2030P motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
28610-1SP	BRUSH,280/320FR	4 pcs	14 motors

Accessories 1

Genuine accessories that can be used with the Baldor D2030P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
