How can I get a price quote for Baldor D2020R?

You can request a fast quote for Baldor D2020R from Yılsa Engineering. Reference part number YLSK782BXLM3894. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor D2020R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor D2020R genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor D2020R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor D2020R

DC Electric Motor - Wound Field, Brushed, 240 V, 1750 rpm rpm, LC2113ATZ Frame

BaldorMFR # D2020RSKU # YLSK782BXLM3894

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDP

Field voltage (V)150 V

FrameLC2113ATZ

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

DC Electric Motor - Wound Field, Brushed, 240 V, 1750 rpm rpm, LC2113ATZ Frame

Baldor D2020R

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDP

Field voltage (V)150 V

FrameLC2113ATZ

Frame materialSteel

Output power20.000 HP

Agency approvalsCCSA US

Ambient temperature (°C)40 °C

Armature current (A)74.0 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTAB SHUNT

Frame prefixLC

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF1

Overall length31.25 IN

Service factor1.00

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568462447

Motor FamilyWound Field

Motor TypeBrushed

Motor Horsepower20 hp

Field Full Load Current4.24 A

Weight370.00 lbs

Documents & CAD

For this product 4

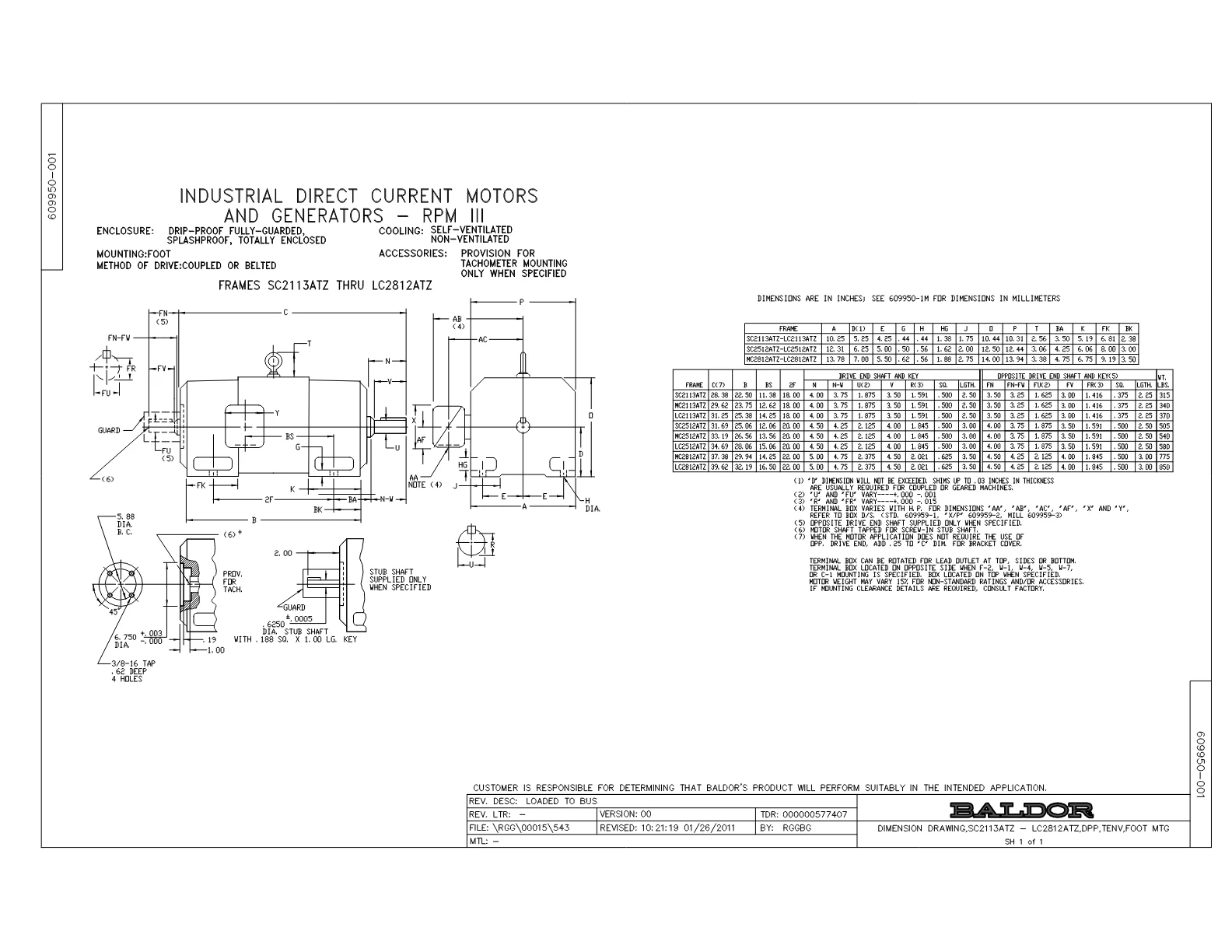

Dimension DrawingDimension SheetPDF·120 KB·English

Dimension DrawingDimension SheetPDF·132 KB·English

Wiring DiagramWiring DiagramPDF·57 KB·English

DatasheetDatasheetPDF·672 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor D2020R motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
