Baldor D2015P

Baldor-Reliance D2015P is a 15 HP, 1750/2300 rpm DC electric motor with a 258AT frame and DPFG (drip-proof fully guarded) enclosure.

BaldorMFR # D2015PSKU # YLSIUCZOJ5U9OV

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)150 V · 300 V

Frame258AT

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D2015P is a 15 HP, 1750/2300 rpm DC electric motor with a 258AT frame and DPFG (drip-proof fully guarded) enclosure.

Baldor D2015P

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)150 V · 300 V

Frame258AT

Frame materialSteel

Output power15.000 HP

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)55.0 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTR. SHUNT

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF1

Overall length29.84 IN

Service factor1.00

Shaft diameter1.624 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568125236

Documents & CAD

For this product 3

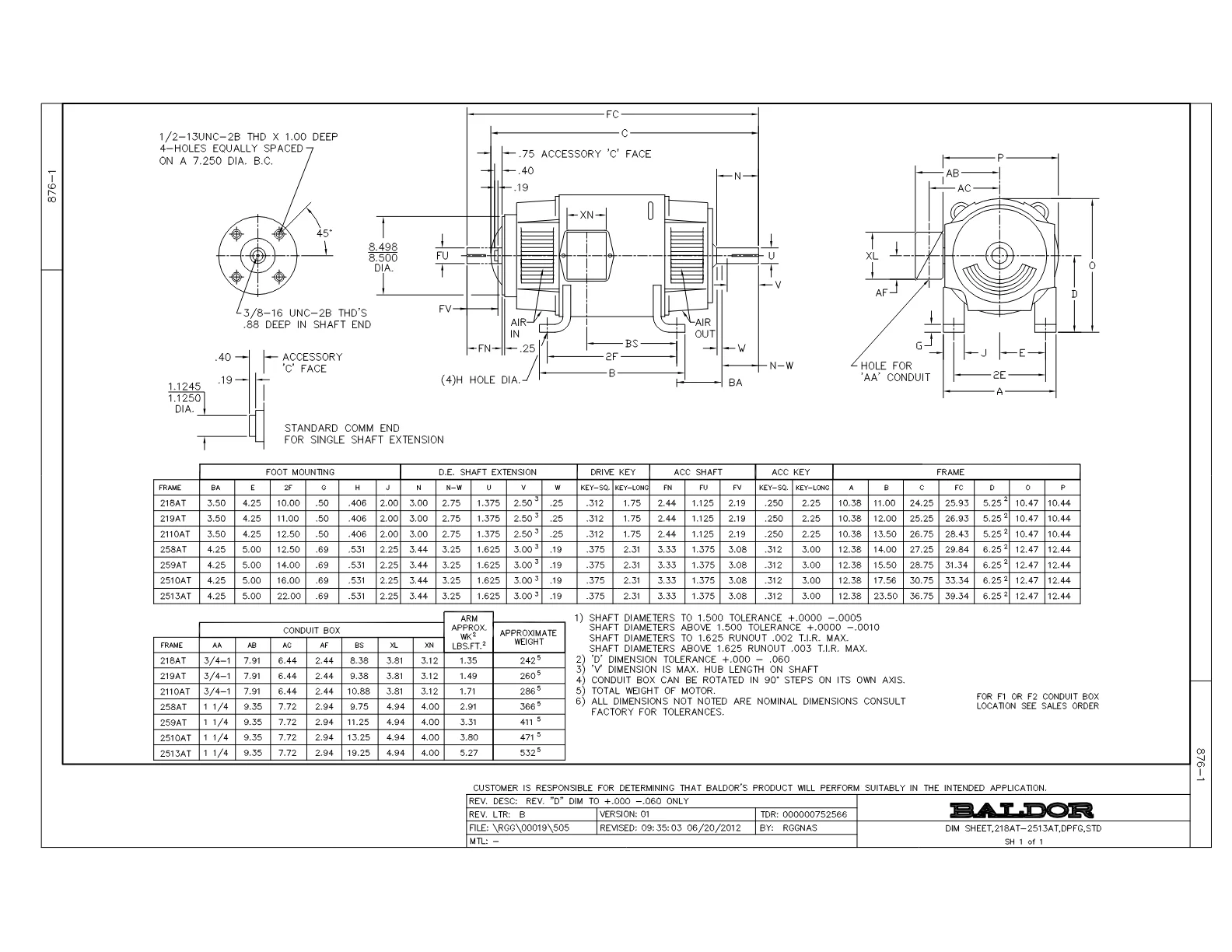

Dimension DrawingDimension SheetPDF·120 KB·English

Wiring DiagramWiring DiagramPDF·92 KB·English

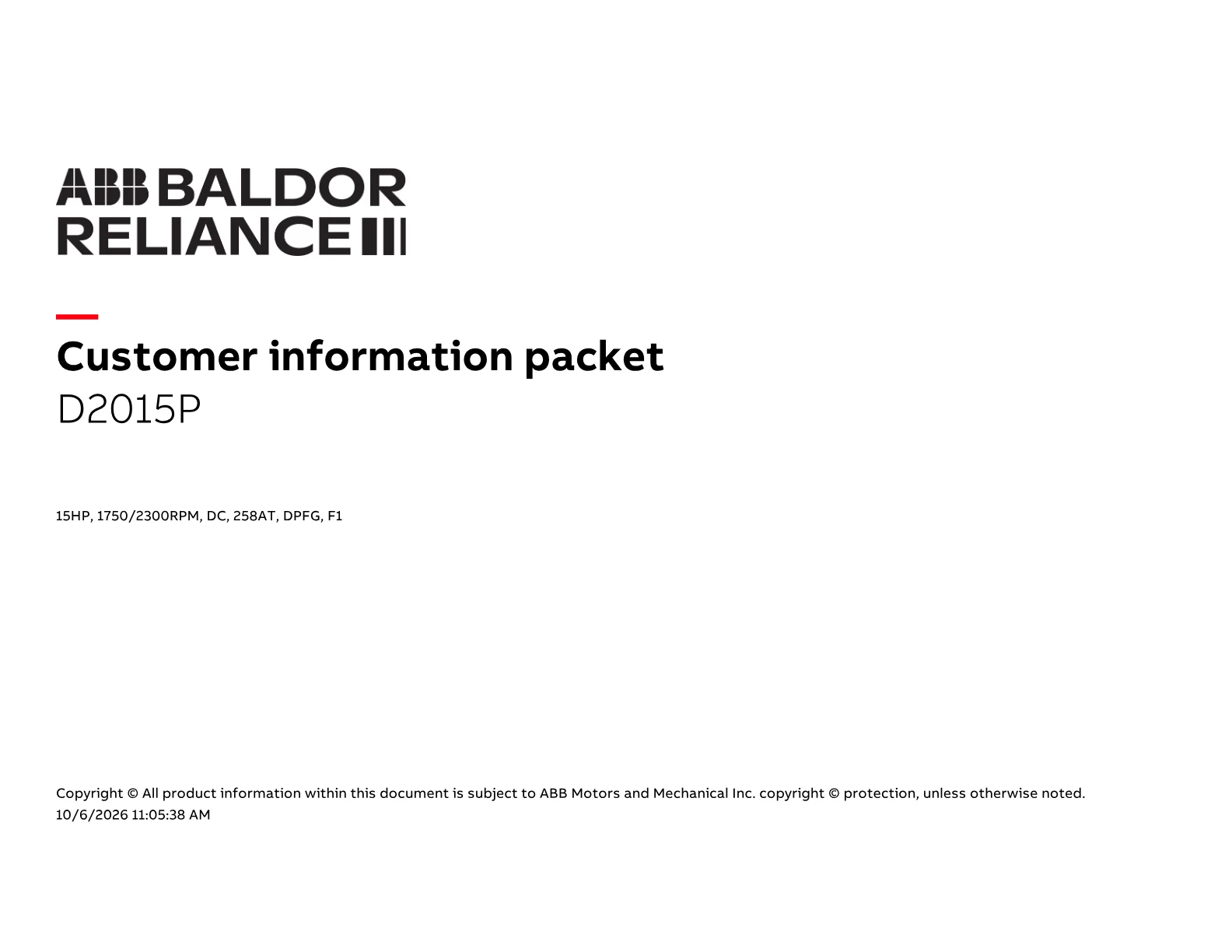

DatasheetDatasheetPDF·582 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor D2015P motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
150986-25-1SP	BRUSH,250 FR. SERIES E-41	4 pcs	9 motors
25062-1	LOUVER COVER,CE,FR-250 18GA C.R. STEEL	2 pcs	7 motors

Accessories 1

Genuine accessories that can be used with the Baldor D2015P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
