Baldor D2003R

DC Electric Motor - Wound Field, Brushed, 240 V, 1750 rpm rpm, DC189ATCZ Frame

BaldorMFR # D2003RSKU # YLS8I0HQUHEG5EV

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDP

Field voltage (V)150 V

FrameDC0189ATCZ

Frame materialExposed Laminations

Have questions?Chat on WhatsApp

About This Product

DC Electric Motor - Wound Field, Brushed, 240 V, 1750 rpm rpm, DC189ATCZ Frame

Baldor D2003R

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDP

Field voltage (V)150 V

FrameDC0189ATCZ

Frame materialExposed Laminations

Output power3.000 HP

Agency approvalsCCSA US

Ambient temperature (°C)40 °C

Armature current (A)11.0 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTAB SHUNT

Frame prefixDC

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF3

Overall length21.82 IN

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568462379

Motor FamilyWound Field

Motor TypeBrushed

Motor Horsepower3 hp

Field Full Load Current1.52 A

Weight130.00 lbs

Mounting TypeRigid Base

Documents & CAD

For this product 3

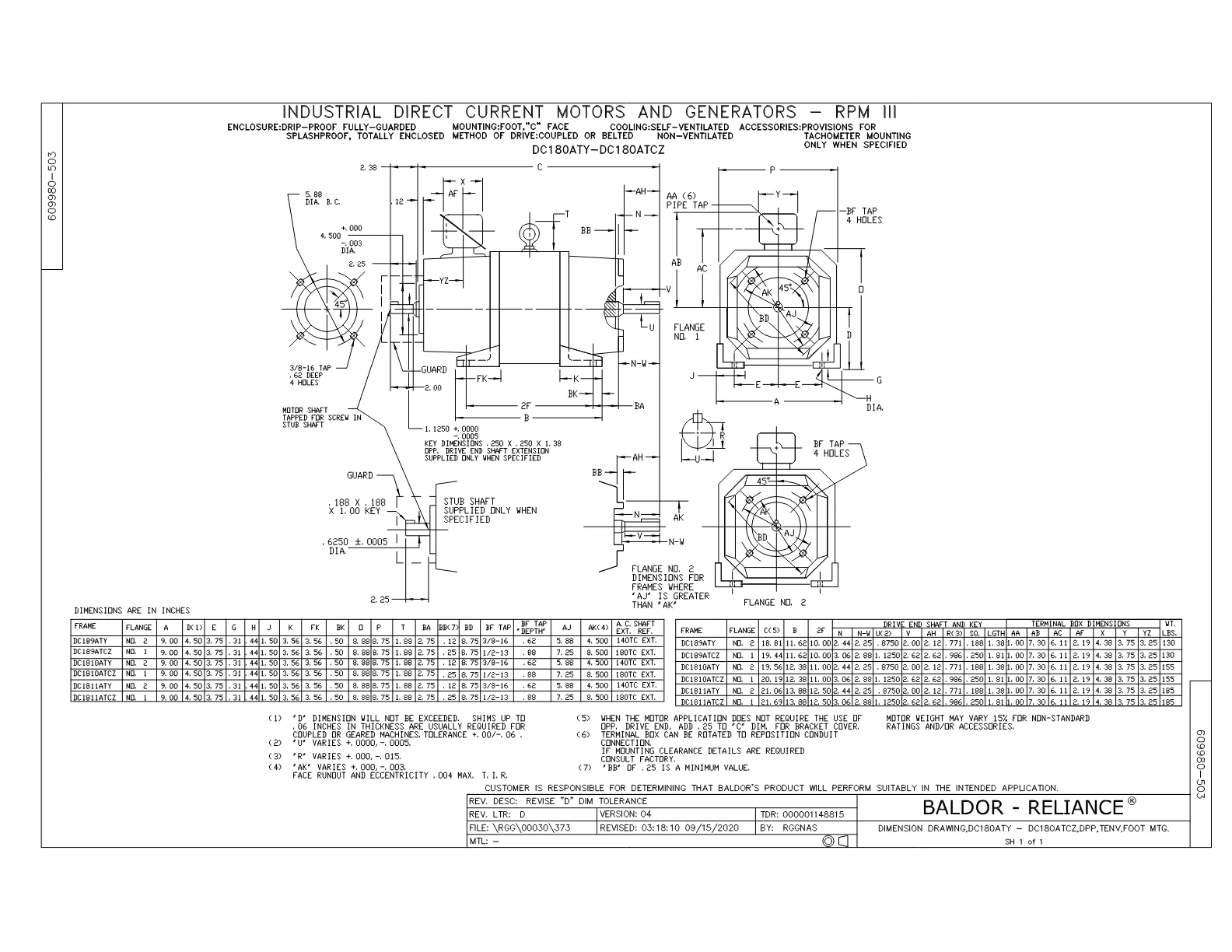

Dimension DrawingDimension SheetPDF·119 KB·English

Wiring DiagramWiring DiagramPDF·57 KB·English

DatasheetDatasheetPDF·540 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor D2003R motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
