How can I get a price quote for Baldor D1815R?

You can request a fast quote for Baldor D1815R from Yılsa Engineering. Reference part number YLSN6J1HOKSERKY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor D1815R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor D1815R genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor D1815R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor D1815R

Baldor-Reliance D1815R is a 1.50 HP, 1750 rpm, DC0189ATY frame, TENV enclosed DC electric motor.

BaldorMFR # D1815RSKU # YLSN6J1HOKSERKY

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTENV

Field voltage (V)200 V

FrameDC0189ATY

Frame materialExposed Laminations

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D1815R is a 1.50 HP, 1750 rpm, DC0189ATY frame, TENV enclosed DC electric motor.

Baldor D1815R

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTENV

Field voltage (V)200 V

FrameDC0189ATY

Frame materialExposed Laminations

Output power1.500 HP

Agency approvalsCCSA US

Ambient temperature (°C)40 °C

Armature current (A)7.2 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTR. SHUNT

Frame prefixDC

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF3

Overall length21.19 IN

Service factor1.00

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568462362

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·119 KB·English

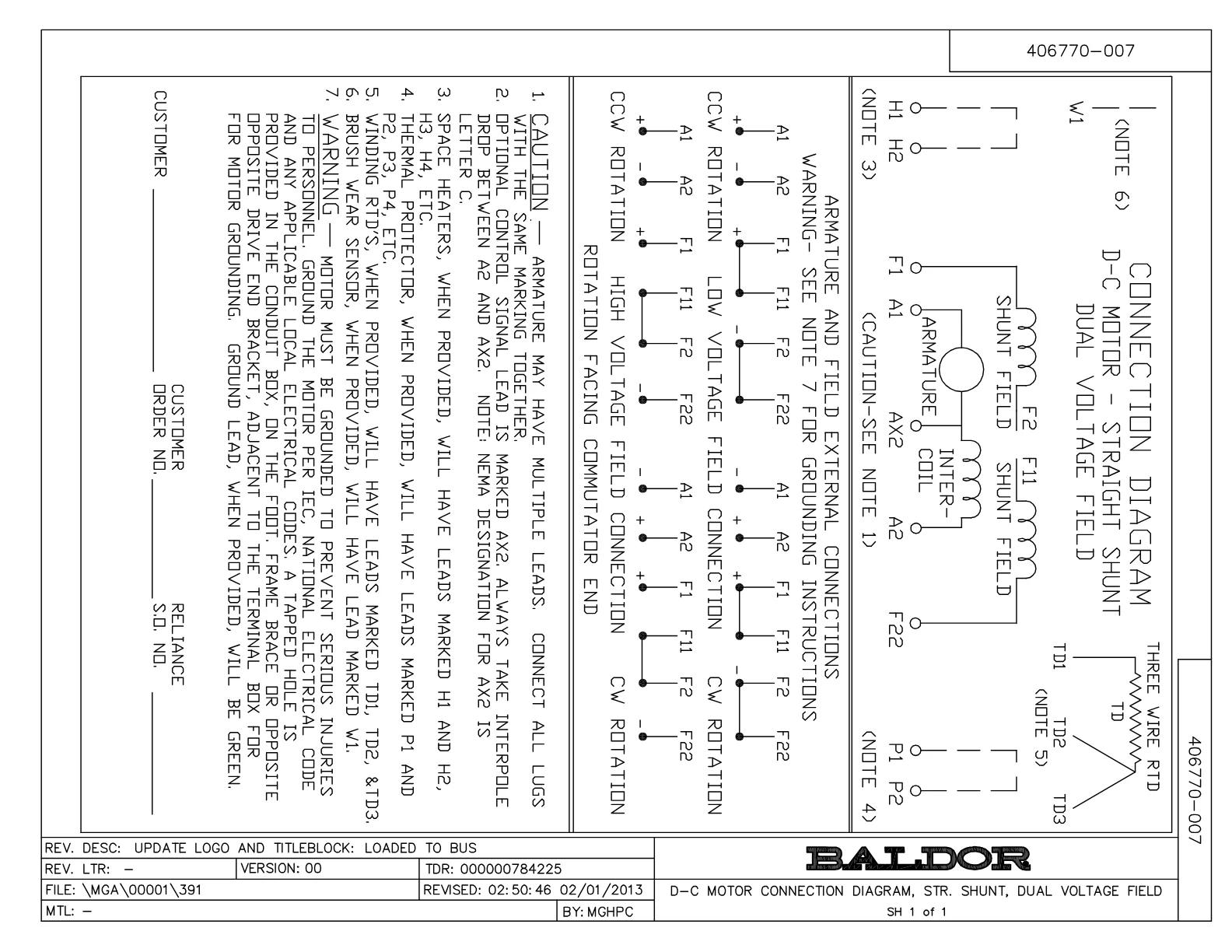

Wiring DiagramWiring DiagramPDF·62 KB·English

DatasheetDatasheetPDF·606 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor D1815R motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
