How can I get a price quote for Baldor D1151?

You can request a fast quote for Baldor D1151 from Yılsa Engineering. Reference part number YLSBWVXFZGFOIRO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor D1151 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor D1151 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor D1151?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor D1151

Baldor-Reliance D1151 is a 0.33 HP, 1750 rpm, 56 frame, TEFC enclosed WP below decks marine duty DC electric motor.

BaldorMFR # D1151SKU # YLSBWVXFZGFOIRO

Armature voltage (V)115 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Frame56

Frame materialSteel

Output power0.330 HP

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D1151 is a 0.33 HP, 1750 rpm, 56 frame, TEFC enclosed WP below decks marine duty DC electric motor.

Baldor D1151

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)115 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Frame56

Frame materialSteel

Output power0.330 HP

Hazardous area class and groupNone

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Armature current (A)3.2 a

Armature inertia3.042 lb-ft2

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeCOMPOUND

Heater indicatorNo Heater

Insulation classF

Lifting lugsNo Lifting Lugs

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 18 AWG · 2 @ 14 AWG

Mounting arrangementF1

Overall length12.54 IN

Product familyWP Below Decks Marine Duty

Pulley end bearing typeSealed Bearing

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Motor standardsNEMA

Hazardous area divisionNot Applicable

UPC781568124581

Performance

General characteristics· 115 Arm V, 0.33 HP

Armature resistance (ohms)3.5351 ohms

Series winding resistance (ohms)1.0818 ohms

Shunt winding resistance (ohms)339.14 ohms

Armature inertia3.042 LI²

Documents & CAD

For this product 2

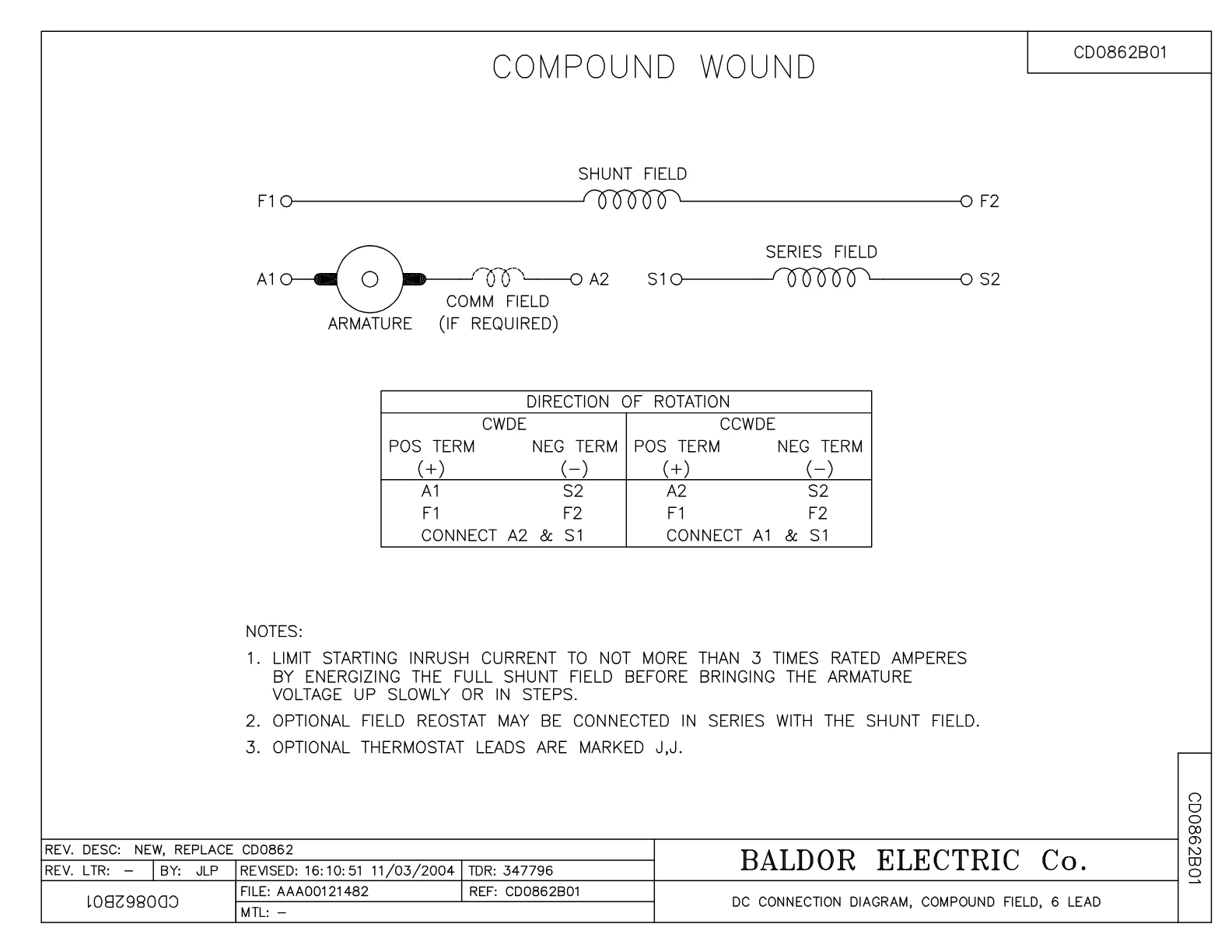

Wiring DiagramWiring DiagramPDF·36 KB·English

DatasheetDatasheetPDF·562 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·91 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor D1151 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
BP5000H03SP	BRUSH ASSY, GRADE H619	1 pcs	12 motors
HA1005A05SP	SLINGER, OD 1.50, ID .659, 203 BRG	1 pcs	112 motors
BP5201A10SP	BRUSH HOLDER ASSY W/BP4509A01 & B	1 pcs	12 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34FH4002A03SP	IEC FH NO GREASER W/.88 DIA SHAFT HOLE,	1 pcs	30 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
