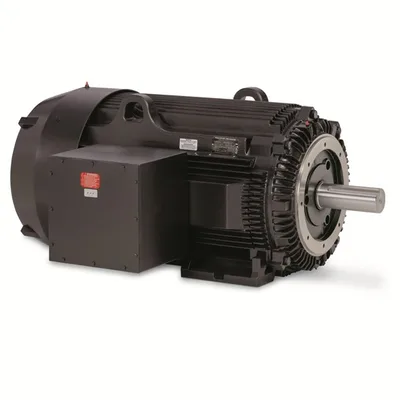

Baldor CXT33004T-5

Baldor-Reliance CXT33004T-5 is a 300 HP, 1785 rpm, 3-phase 575 V, 60 Hz, 449TC frame, TEFC enclosed general industrial three-phase induction motor.

BaldorMFR # CXT33004T-5SKU # YLSAVGCT3MMTGBD

EnclosureTEFC

Frame449TC

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency300.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CXT33004T-5 is a 300 HP, 1785 rpm, 3-phase 575 V, 60 Hz, 449TC frame, TEFC enclosed general industrial three-phase induction motor.

Baldor CXT33004T-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame449TC

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency300.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionDivision II

Agency approvalsNEMA_PREMIUM · CURUSEEV · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage267.000 A @ 575.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load96.2 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)267.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Maximum speed (rpm)3600 rpm

Motor lead quantity/wire size6 @ 1/0 AWG

Motor typeA44160M

Mounting arrangementF1

Number of poles4

Overall length53.47 IN

Power factor88

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeC-Face

Service factor1.00

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1785 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568983669

Nameplate

Catalog numberCXT33004T-5

CC number010A

Specification numberA44-0003-5582

Rating40C AMB-CONT

Phase3

Insulation classF

Maximum speed (rpm)3600

Maximum correction (kVAR)46

Drive end bearing6318

Opposite drive end bearing6318

EnclosureTEFC

Frame size449TC

Ingress protection (IP)54

GreasePOLYREX EM

Temperature code230

Constant torque2:1

Variable torque1000:1

Constant horsepower1:1.5

Inverter temperature classT2C

Usable at (V)N/A

Nameplate numberNP4152LUA

Documents & CAD

For this product 4

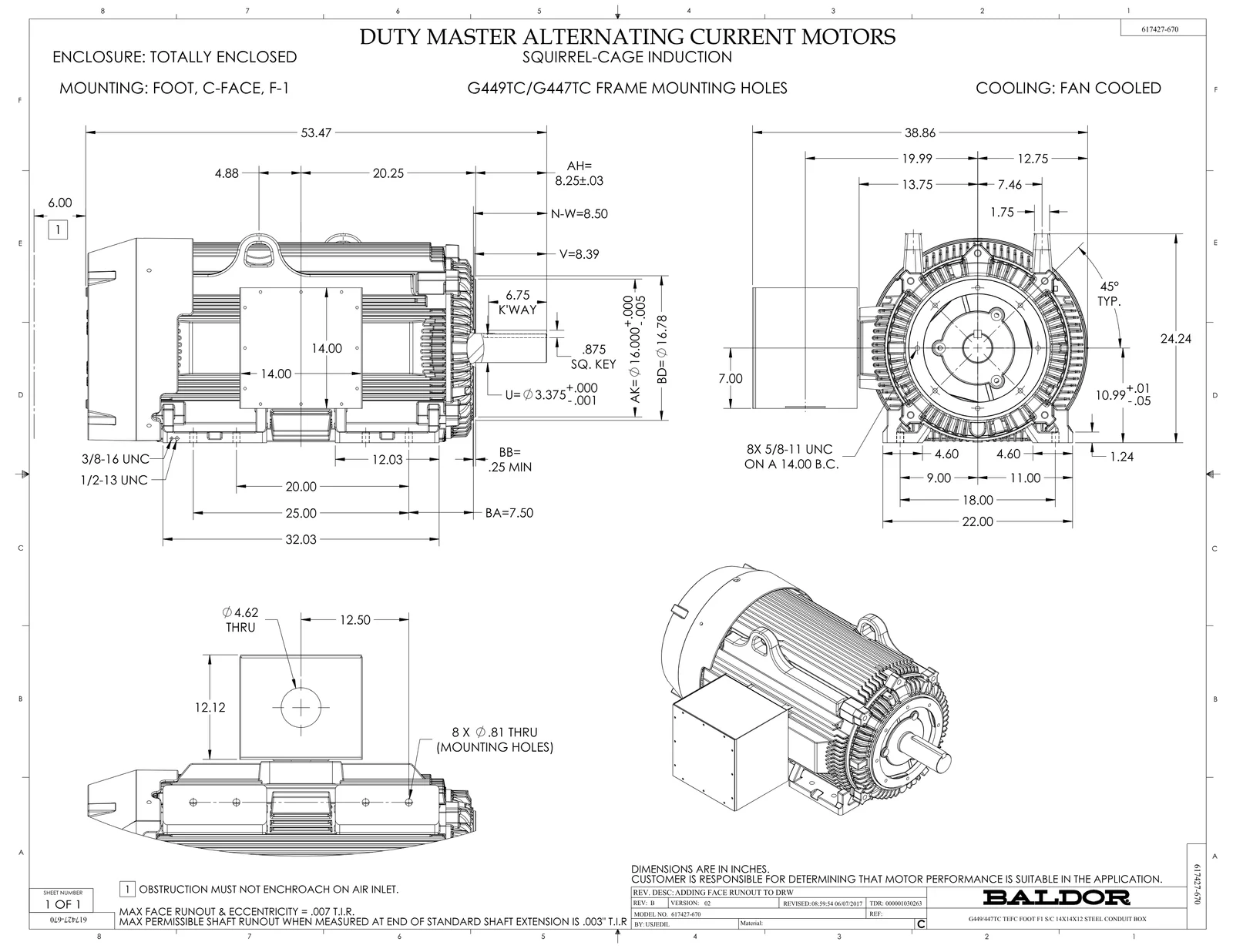

Dimension DrawingDimension SheetPDF·471 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

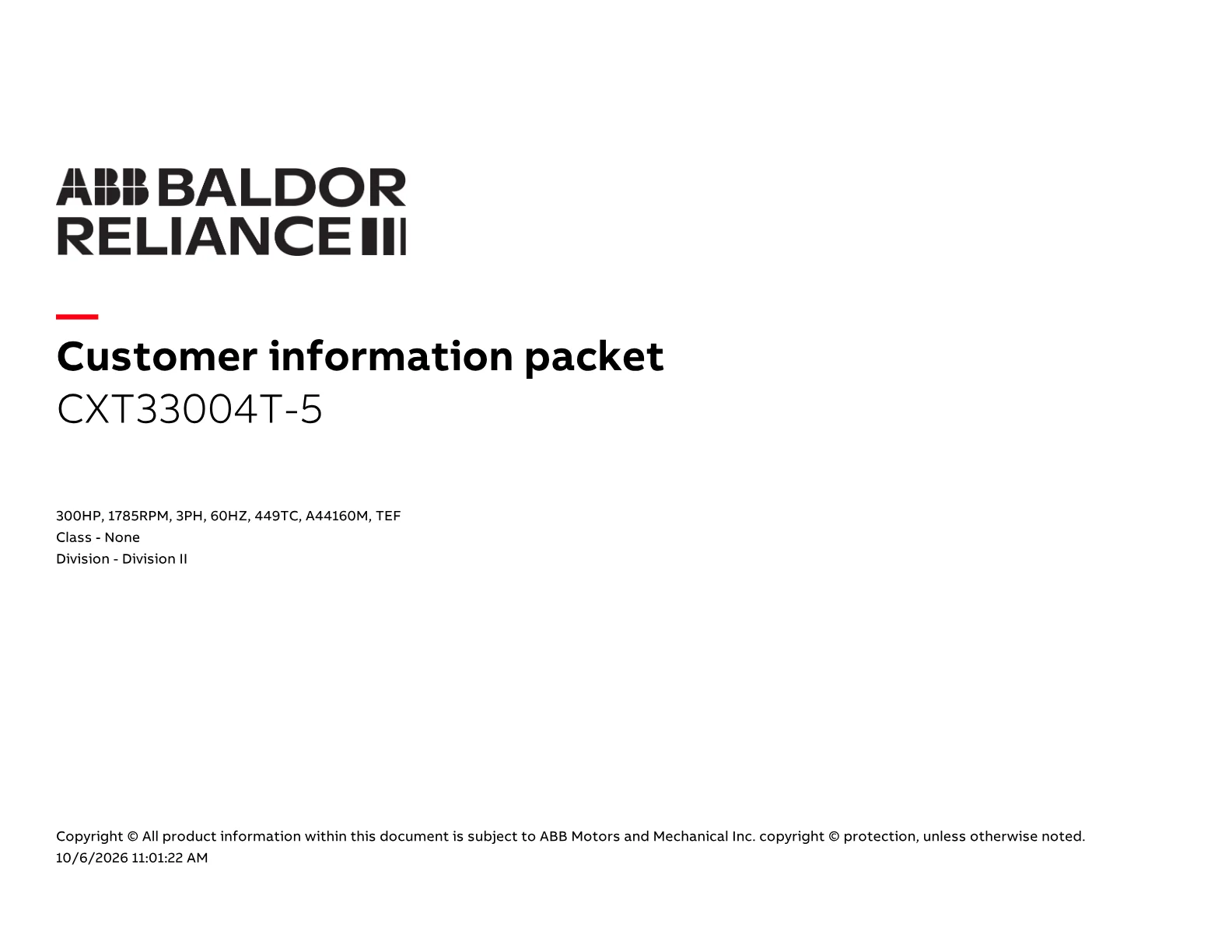

DatasheetDatasheetPDF·1.0 MB·English

Performance CurvePerformance CurvePDF·106 KB·English

Series documents 2· shared by this product series

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor CXT33004T-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
