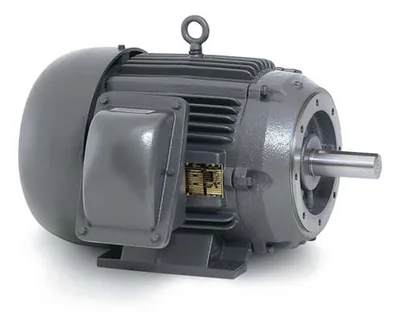

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor CXM05122

Explosion Proof General Purpose Motor - 3/4 hp / 1 hp, 3600 rpm / 3000 rpm, 3 ph, 230/460 V, 56C Frame, 50/60 Hz, 3450 rpm / 2850 rpm Base, Rigid Base Mount, Continuous Duty

BaldorMFR # CXM05122SKU # YLSTXGITFP14DJI

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ · .750 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Explosion Proof General Purpose Motor - 3/4 hp / 1 hp, 3600 rpm / 3000 rpm, 3 ph, 230/460 V, 56C Frame, 50/60 Hz, 3450 rpm / 2850 rpm Base, Rigid Base Mount, Continuous Duty

Baldor CXM05122

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ · .750 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency380.0 V @ 50 HZ · 230.0 V @ 60 HZ · 460.0 V @ 60 HZ · 190.0 V @ 50 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsUL · CSA EEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range6

Current at voltage2.800 A @ 230.0 V · 2.600 A @ 190.0 V · 1.400 A @ 460.0 V · 1.300 A @ 380.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load82.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.3 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

IP ratingNONE

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5400 rpm

Motor lead terminationFlying Leads

Motor type3516M

Mounting arrangementF1

Number of poles2

Overall length14.28 IN

Power factor82

Product familyGeneral Purpose

Pulley face codeC-Face

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter0.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568957493

Motor CategoryGeneral Purpose Motor

Motor Supply Voltage230/460 V

Base RPM3450 rpm / 2850 rpm

Weight32 lbs

Superseded Motor Part NumberCEM7013

Mounting TypeRigid Base

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

CC number010A

Temperature codeT3C

Specification number35-0000-0881

Inverter typePWM

Catalog numberCXM05122

Constant horsepower range from60

Constant horsepower range to90

Horsepower (HP)1//0.75

Constant torque frequency from (Hz)6

Constant torque frequency to (Hz)60

Voltage (V)230/460//190/380

Variable torque frequency from (Hz)6

Variable torque frequency to (Hz)60

Current (A)2.8/1.4//2.6/1.3

Magnetizing current (A).67

Speed (rpm)3450//2885

Maximum speed (rpm)5400

Frequency (Hz)60//50

Phase3

Insulation classF

Nominal efficiency (%)82.5

Service factor1.00

NEMA design letterB

SL HZ2.5

Inertia (WK²)0.05

Frame size56C

Rating40C AMB-CONT

Nameplate numberNP0887XPSLEV

Performance

General characteristics· 460 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)15.1 Ω

Temperature rise at rated load (°C)33° C

Start configurationDOL

Breakdown torque6.5 lb-ft

Pull-up torque4.8 lb-ft

Locked-rotor torque5.7 lb-ft

Starting current (A)12.1 A

Line-to-line resistance at 25 °C (ohms)15.2 Ω

Temperature rise at rated load (°C)29° C

Start configurationDOL

Breakdown torque5.97 lb-ft

Pull-up torque4.9 lb-ft

Locked-rotor torque5.82 lb-ft

Starting current (A)11.24 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	13	44	65	77	84	87	89
Efficiency %	0	70.5	80.5	83.6	84.6	84.4	83.7
Speed rpm	3593	3567	3539	3510	3479	3446	3410
Line amps A	0.68	0.75	0.9	1.09	1.33	1.56	1.88
Power W	70	270	468	671	876	1087	1302
Torque lb-ft	0	0.375	0.75	1.125	1.5	1.875	2.25

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·704 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

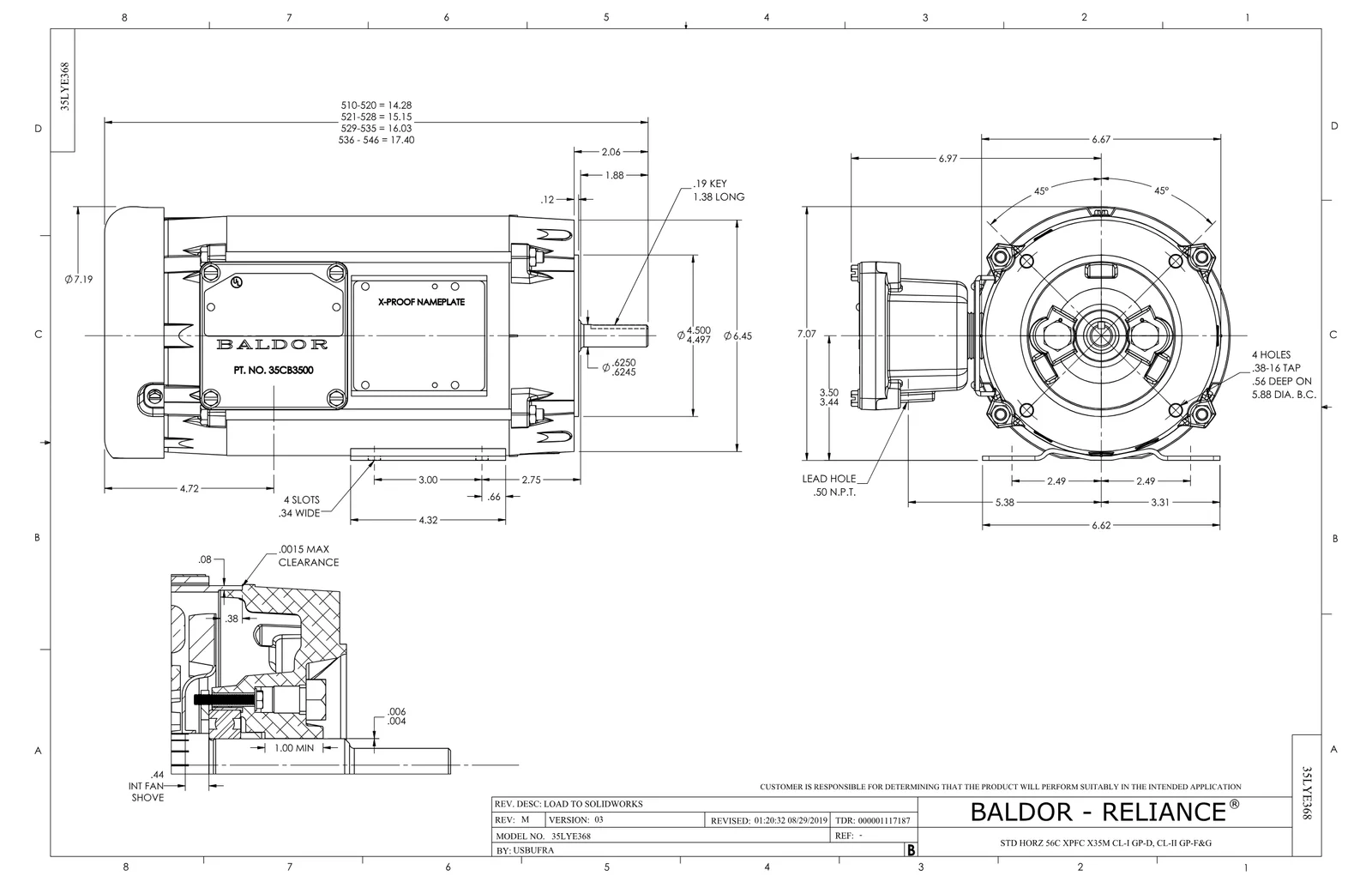

Dimension DrawingDimension SheetPDF·139 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor CXM05122 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
35FH4005A01SP	IEC FH NO GREASER W/PRIMED	1 pcs	134 motors
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
35EP3700A01SP	FR ENDPLATE, XPFC	1 pcs	90 motors
35EP3702A01SP	PU EP-205 BRG-35X-56C-143-5TC	1 pcs	56 motors
35CB3001A01SP	EXPL CONDUIT BOX, MACH, 1/2" PIPE TAP LE	1 pcs	103 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
