Baldor CXL21542

CXL21542

BaldorMFR # CXL21542SKU # YLSMPCWDAT06DNV

EnclosureTEFC

Frame215C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor CXL21542 (CXL21542) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor CXL21542 — price, stock availability and technical specifications.

Baldor CXL21542

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame215C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsUL · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage19.700 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load84.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)19.7 a

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor type3726LC

Mounting arrangementF1

Number of poles4

Overall length19.56 IN

Power factor96

Product familyGeneral Purpose

Pulley face codeStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1740 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568972618

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

Specification number37-0000-0350

Catalog numberCXL21542

Horsepower (HP)5

Temperature codeT3C

Voltage (V)230

Current (A)20

Speed (rpm)1740

Frequency (Hz)60

Phase1

Insulation classF

Service factor1.15

NEMA design letterL

Code letter (locked rotor kVA)G

Rating40C AMB-CONT

Frame size215C

NEMA nominal efficiency (%)84

Power factor96

Nameplate numberNP1426XPSL

Performance

General characteristics· 230 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.463 Ω / 1.7 Ohms B Ph

Temperature rise at rated load (°C)63° C

Temperature rise at service factor load (°C)79° C

Start configurationDOL

Breakdown torque30.2 lb-ft

Pull-up torque31.5 lb-ft

Locked-rotor torque35.3 lb-ft

Starting current (A)130 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	59	82	92	95	96	96	94	96
Efficiency %	0	67.5	81	85.2	85.5	83.7	80.1	84.4
Speed rpm	1799	1788	1775	1761	1746	1727	1702	1735
Line amps A	3.78	7.14	10.85	15.12	19.97	25.25	32.22	23.1
Power W	510	1341	2287	3311	4401	5579	6990	5108
Torque lb-ft	0	3.57	7.35	11.28	15.18	19.06	23.19	17.5

Documents & CAD

For this product 3

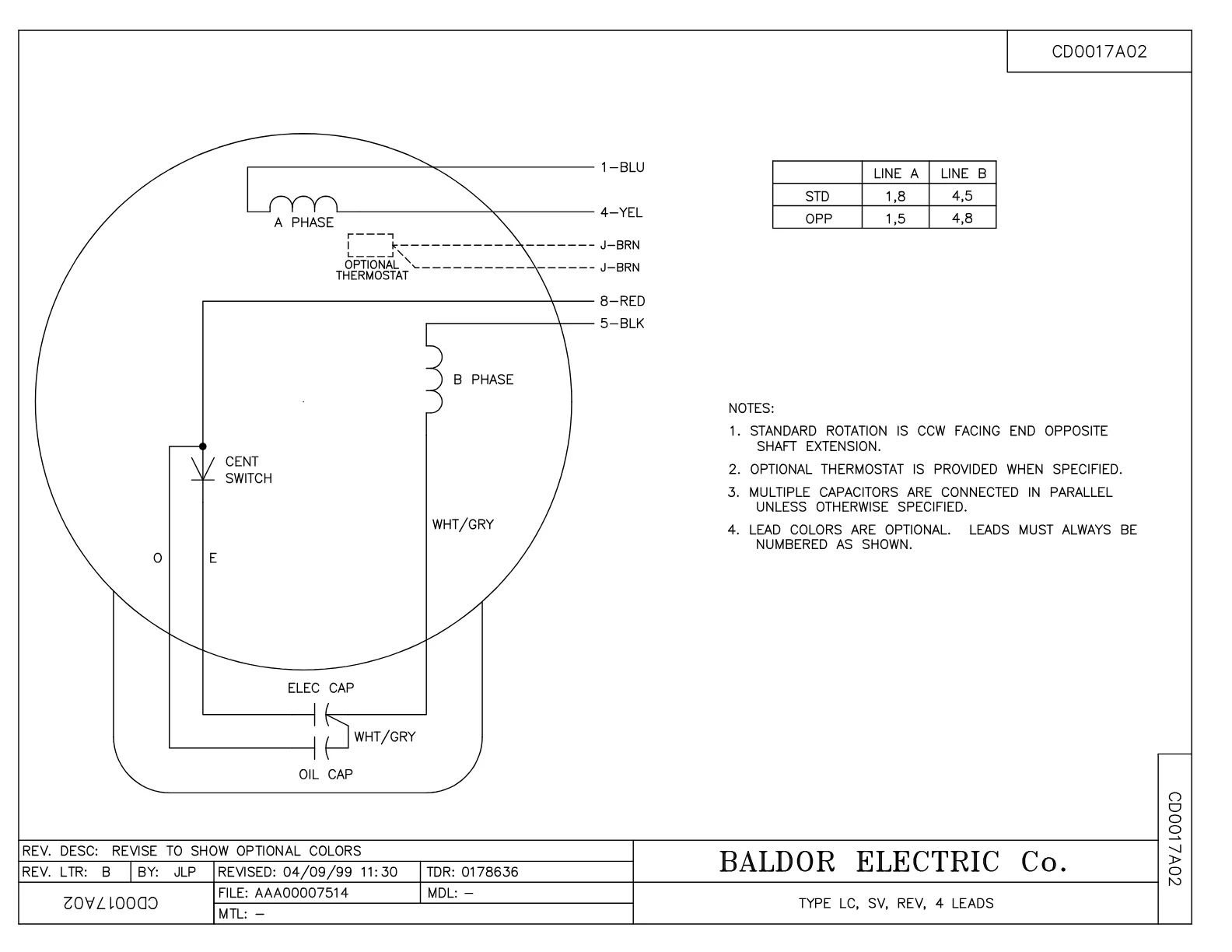

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·611 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

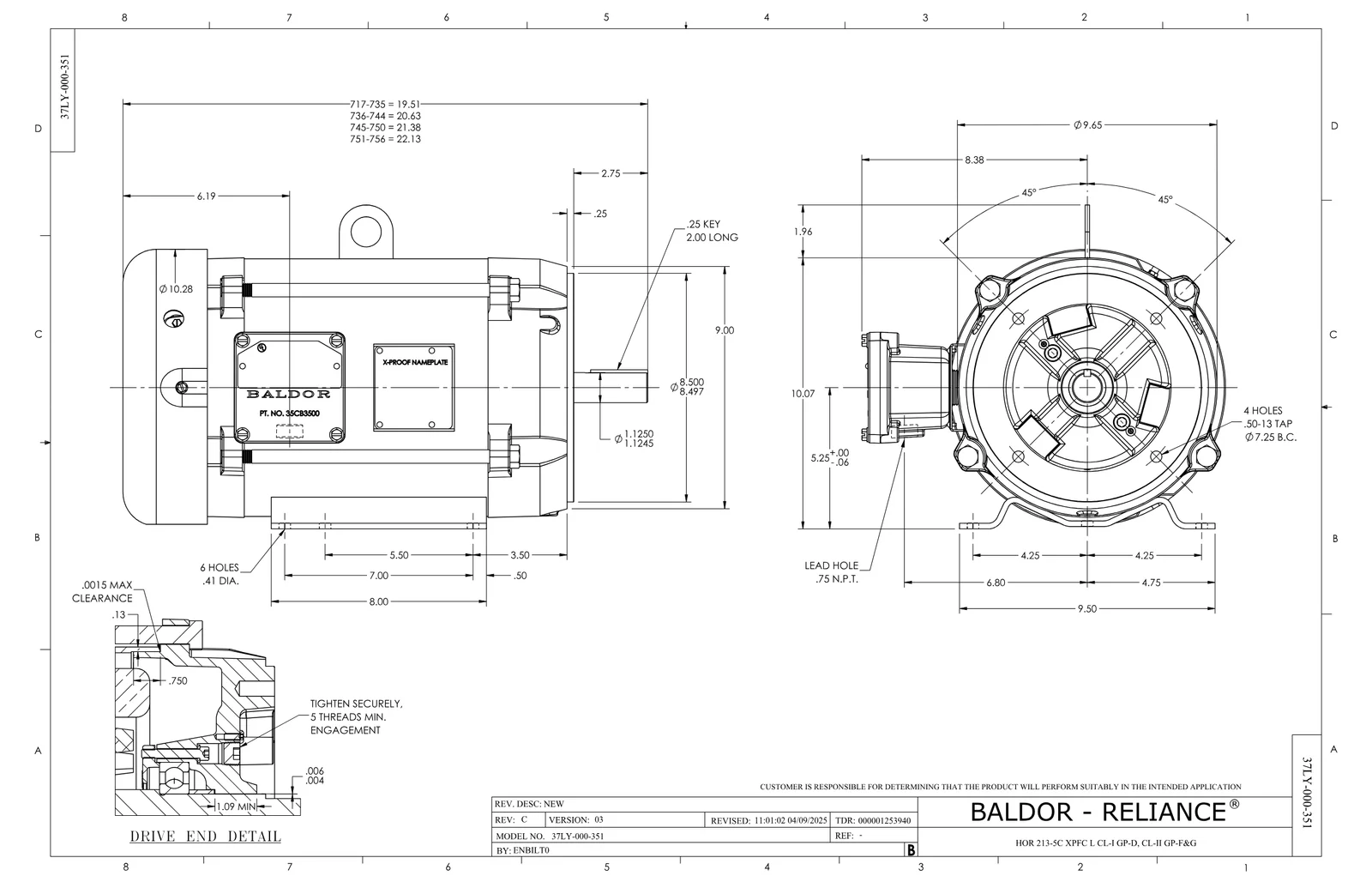

Dimension DrawingDimension SheetPDF·132 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor CXL21542 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
OC3060F10SP	CYL OIL CAP 60MFD/370V	1 pcs	14 motors
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	2 pcs	141 motors
35CB3001A02SP	EXPL PROOF CONDUIT BOX, 3/4"PIPE TAP LEA	1 pcs	100 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
