Baldor CXL05142A

Baldor-Reliance CXL05142A is a 1 HP, 1725 rpm, single-phase 115/230 V, 60 Hz, 56C frame, XPFC enclosed general purpose single-phase induction motor.

BaldorMFR # CXL05142ASKU # YLSF6TYJZODD9IX

EnclosureXPFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CXL05142A is a 1 HP, 1725 rpm, single-phase 115/230 V, 60 Hz, 56C frame, XPFC enclosed general purpose single-phase induction motor.

Baldor CXL05142A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureXPFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsCSA · UL

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.400 A @ 115.0 V · 6.200 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load67.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.2 a

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

IP ratingNONE

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor type3528L

Mounting arrangementF1

Number of poles4

Overall length15.17 IN

Power factor68

Product familyGeneral Purpose

Pulley face codeC-Face

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 1 locationEP

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568970126

Nameplate

Specification number35S154F092

Catalog numberCXL05142A

Horsepower (HP)1

Temperature codeT3C

Voltage (V)115/230

Current (A)12.4/6.2

Speed (rpm)1730

Frequency (Hz)60

Phase1

Insulation classB

Service factor1.00

NEMA design letterL

Code letter (locked rotor kVA)L

Rating40C AMB-CONT

Frame size56C

NEMA nominal efficiency (%)67

Usable at 208VN/A

Power factor77

Nameplate numberNP2204XPSL

Performance

General characteristics· 115 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)0.71477 Ω / 1.875 Ohms B Ph

Temperature rise at rated load (°C)67° C

Start configurationDOL

Breakdown torque8.59 lb-ft

Pull-up torque7.38 lb-ft

Locked-rotor torque11.3 lb-ft

Starting current (A)80 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	20	40	56	68	77	82	86
Efficiency %	0	49.8	63.3	68.1	68.8	67.1	62.5
Speed rpm	1795.5	1783.2	1769.8	1754	1737.3	1713.9	1677.8
Line amps A	7.98	8.39	9.24	10.6	12.4	14.8	18.3
Power W	183	386	599	831	1090	1395	1795
Torque lb-ft	0	0.7602	1.508	2.269	3.042	3.845	4.704

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·136 KB·English

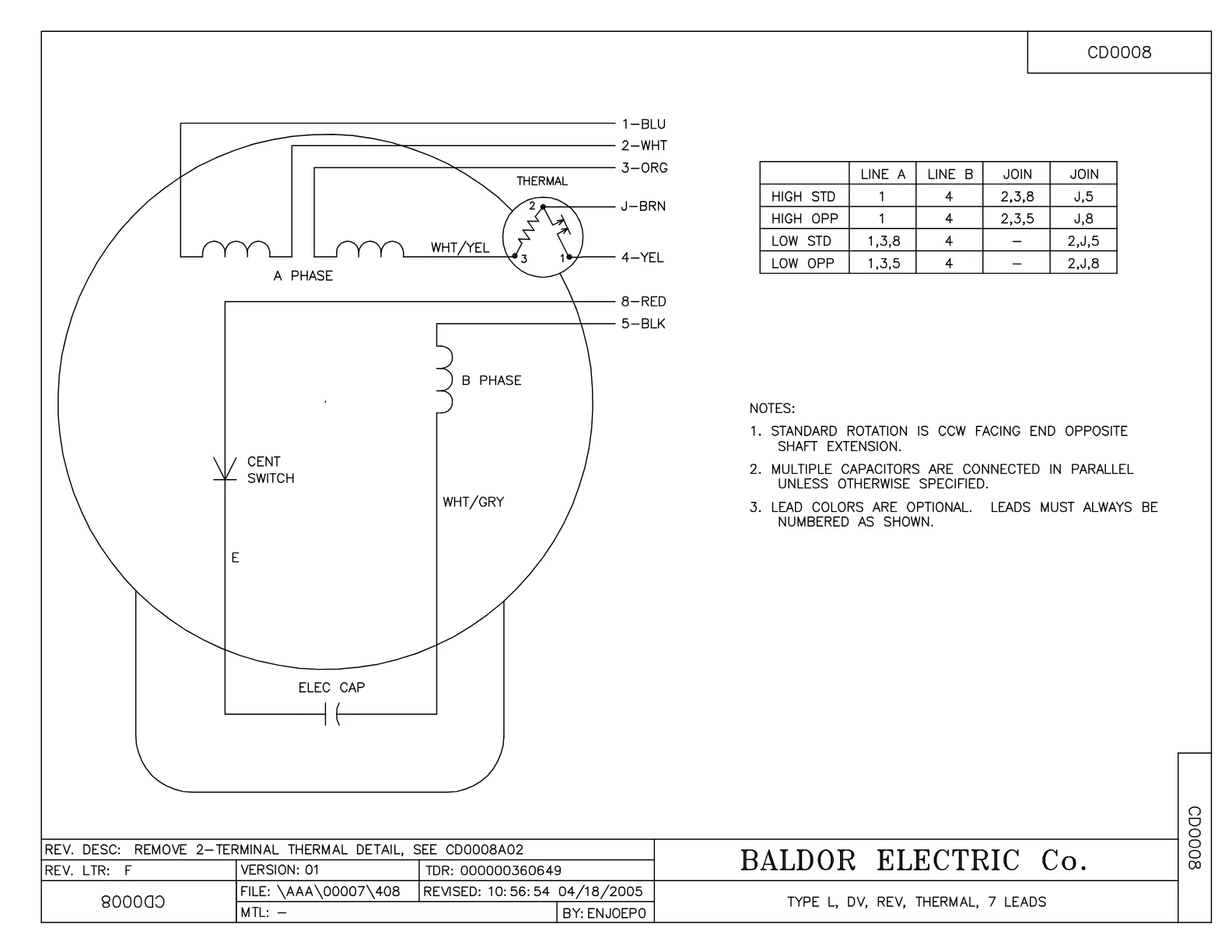

Wiring DiagramWiring DiagramPDF·34 KB·English

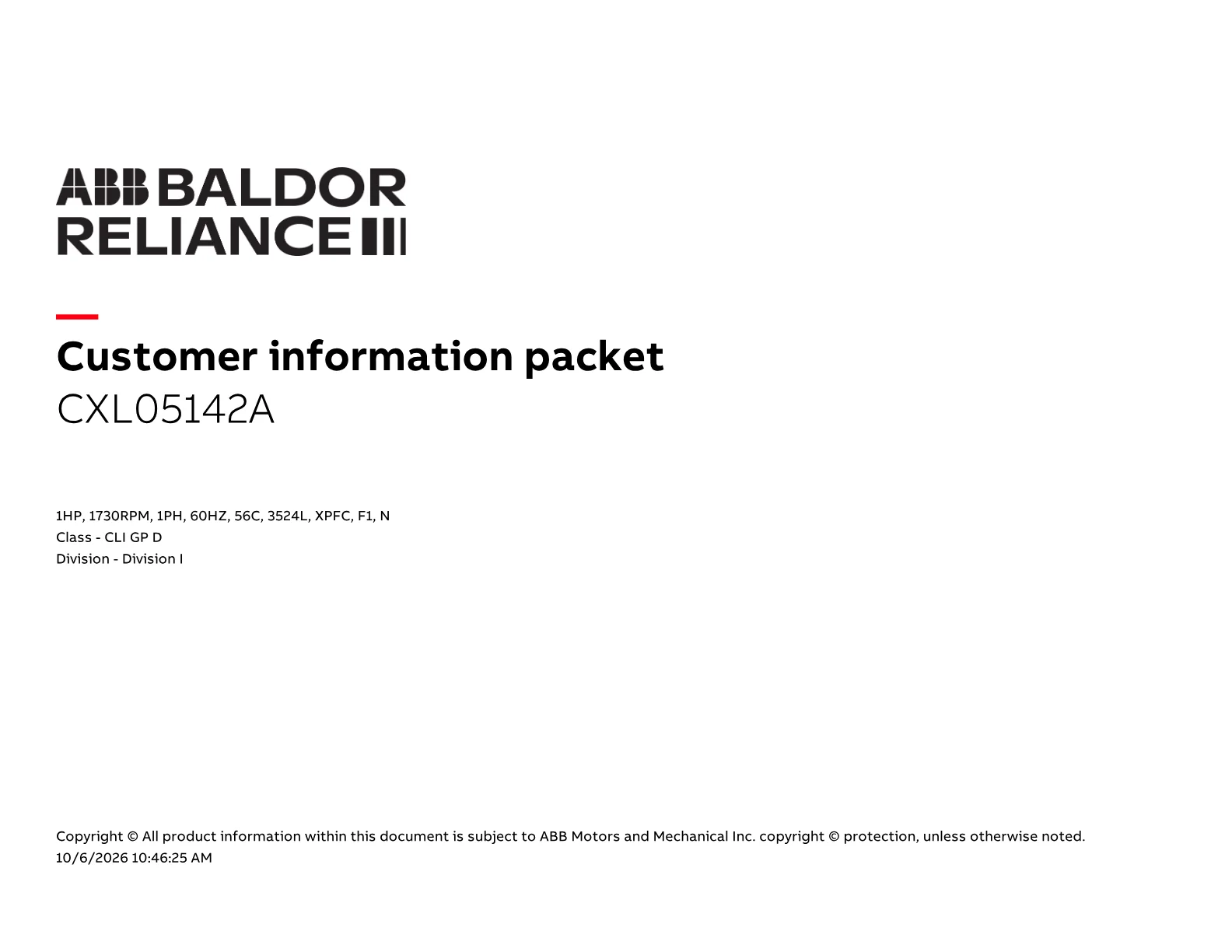

DatasheetDatasheetPDF·614 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor CXL05142A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
35CB3001A01SP	EXPL CONDUIT BOX, MACH, 1/2" PIPE TAP LE	1 pcs	103 motors
35EP3700A01SP	FR ENDPLATE, XPFC	1 pcs	90 motors
35EP3702A01SP	PU EP-205 BRG-35X-56C-143-5TC	1 pcs	56 motors
35FH4005A01SP	IEC FH NO GREASER W/PRIMED	1 pcs	134 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
