Baldor CXL050342A

Baldor-Reliance CXL050342A is a 0.33 HP, 1725 rpm, single-phase 115/208/230 V, 60 Hz, 56C frame, TEFC enclosed hazardous location single-phase induction motor.

BaldorMFR # CXL050342ASKU # YLSB4L4BOKFACZT

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.330 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CXL050342A is a 0.33 HP, 1725 rpm, single-phase 115/208/230 V, 60 Hz, 56C frame, TEFC enclosed hazardous location single-phase induction motor.

Baldor CXL050342A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.330 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsCSA · UL

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage6.000 A @ 115.0 V · 3.200 A @ 208.0 V · 3.000 A @ 230.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load60.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.0 a

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

IP ratingNONE

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead terminationFlying Leads

Motor type3414L

Mounting arrangementF1

Number of poles4

Overall length13.22 IN

Power factor60

Product familyHazardous Location Motor

Pulley face codeC-Face

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationES

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568972496

Nameplate

Specification number34-0000-0394

Catalog numberCXL050342A

Horsepower (HP).33

Temperature codeT3C

Voltage (V)115/208-230

Current (A)6/3.2-3

Speed (rpm)1725 34WG5597

Frequency (Hz)60

Phase1

Insulation classB

Service factor1.00

NEMA design letterN

Code letter (locked rotor kVA)L

Rating40C AMB-CONT

Frame size56C

NEMA nominal efficiency (%)60

Power factor60

Nameplate numberNP0016XPSL

Performance

General characteristics· 230 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)6.32 Ω / 4.93 Ohms B Ph

Temperature rise at rated load (°C)59° C

Start configurationDOL

Breakdown torque2.95 lb-ft

Pull-up torque2.55 lb-ft

Locked-rotor torque3.6 lb-ft

Starting current (A)13 A

Line-to-line resistance at 25 °C (ohms)1.5 Ω / 4.81 Ohms B Ph

Temperature rise at rated load (°C)59° C

Start configurationDOL

Breakdown torque2.95 lb-ft

Pull-up torque2.55 lb-ft

Locked-rotor torque3.6 lb-ft

Starting current (A)26 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	22	31	41	52	60	67	73
Efficiency %	0	33	41	52	60	61.5	61.5
Speed rpm	1795	1780	1760	1745	1725	1705	1680
Line amps A	2.6	2.6	2.7	2.8	3	3.3	3.7
Power W	132	192	305	357	408	492	582
Torque lb-ft	0	0.25	0.5	0.75	1	1.25	1.5

Documents & CAD

For this product 3

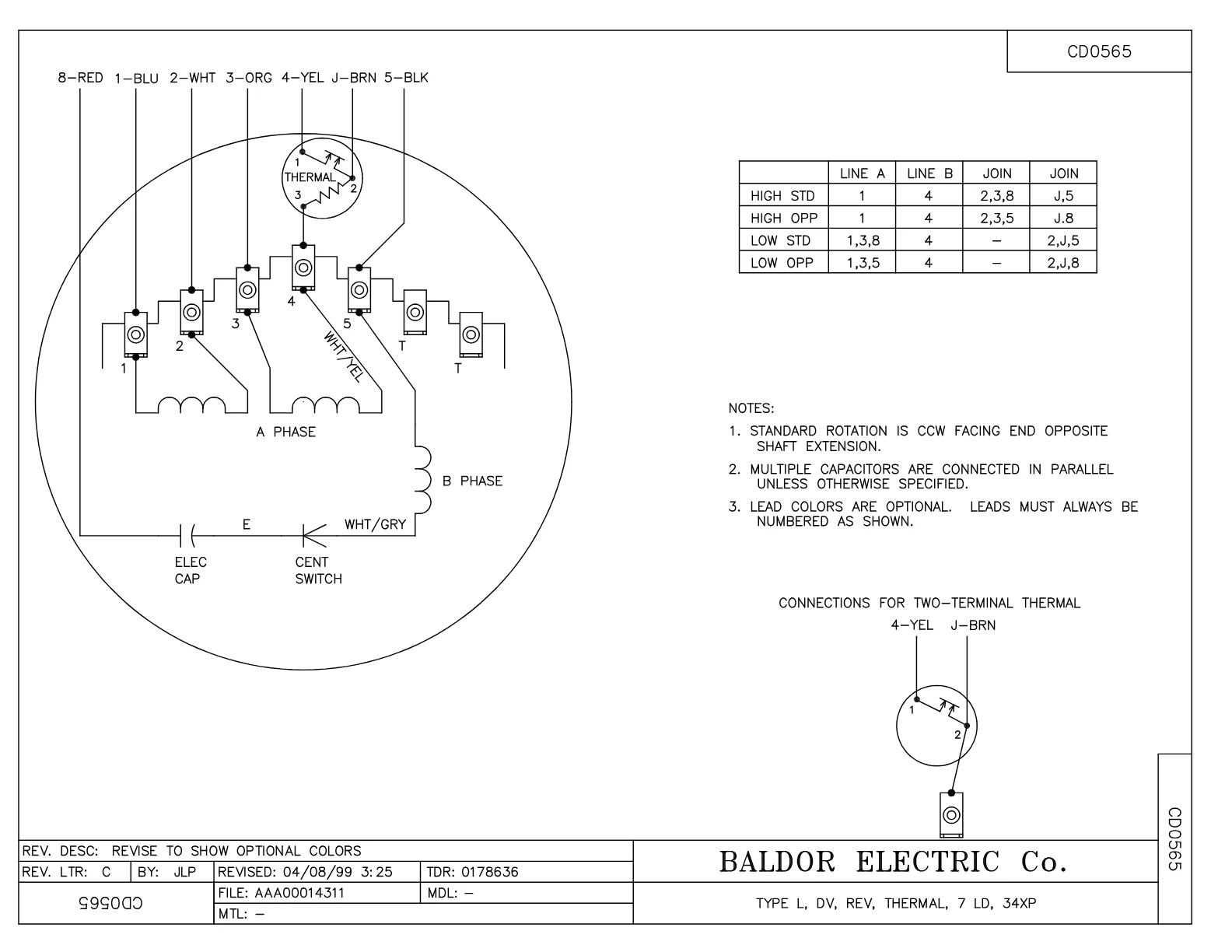

Wiring DiagramWiring DiagramPDF·46 KB·English

DatasheetDatasheetPDF·677 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·109 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor CXL050342A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
34FH4002A01SP	IEC FH NO GREASER PRIMED	1 pcs	210 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34EP3705A01SP	PU ENDPLATE, MACH	1 pcs	31 motors
35CB3001A01SP	EXPL CONDUIT BOX, MACH, 1/2" PIPE TAP LE	1 pcs	103 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
