Baldor CTM3770T

Chiller/Cooling Tower Motor - 7-1/2 hp, 1800 rpm, 3 ph, 208-230/460 V, 213T Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 1765 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # CTM3770TSKU # YLS6EKKA9XN000E

EnclosureTEAO

Frame213T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Chiller/Cooling Tower Motor - 7-1/2 hp, 1800 rpm, 3 ph, 208-230/460 V, 213T Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 1765 rpm Base, Foot Mount, Continuous Duty

Baldor CTM3770T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame213T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage10.000 A @ 460.0 V · 20.000 A @ 230.0 V · 20.900 A @ 208.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load89.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)10.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeH

Lifting lugsVertical Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 14 AWG

Motor type0730M

Mounting arrangementF1

Number of poles4

Overall length19.54 IN

Power factor79

Product familyChemical Processing (Not DC)

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenNone

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568621134

Additional DetailsClass F insulated motor with 1.15 service factor that operates within class “B” temperature limits at rated horsepower. Corrosion resistant epoxy finish, double sealed bearings filled with moisture resistant grease, shaft seal/slinger, moisture resistant copper windings, double dipped and baked, stainless steel nameplates and corrosion resistant hardware. Designed for wet, high humidity environments.

ApplicationsFor use in the airstream on chillers and cooling towers.

Base RPM1765 rpm

Harmonization Code8501.52.4000

IP Rating44

Motor CategoryChiller/Cooling Tower Motor

Motor Supply Voltage208-230/460 V

Mounting TypeFoot

Weight164 lbs

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberCTM3770T

Specification number07N391T575H1

Horsepower (HP)7.5 AIR OVER

Voltage (V)208-230/460

Current (A)20.9-20/10

Speed (rpm)1760

Frame size213T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)89.5

Power factor79

Rating40C AMB-CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEAO

Nameplate numberNP1258

Performance

General characteristics· 460 V, 60 Hz, 7.5 hp

Line-to-line resistance at 25 °C (ohms)1.71 Ω

Temperature rise at rated load (°C)65° C

Temperature rise at service factor load (°C)79° C

Start configurationDOL

Breakdown torque65.3 lb-ft

Pull-up torque29 lb-ft

Locked-rotor torque43.2 lb-ft

Starting current (A)66.1 A

Line-to-line resistance at 25 °C (ohms)0.427 Ω

Temperature rise at rated load (°C)66° C

Temperature rise at service factor load (°C)82° C

Start configurationDOL

Breakdown torque52.6 lb-ft

Pull-up torque26.5 lb-ft

Locked-rotor torque38 lb-ft

Starting current (A)117 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	38	59	71	77	80	82	79
Efficiency %	0	80.7	87.7	89.5	90.1	89	87.1	89.4
Speed rpm	1799	1791	1783	1773	1763	1752	1741	1756
Line amps A	5.15	5.52	6.62	8.23	10.09	12.23	14.56	11.4
Power W	280	1663	3124	4664	6182	7825	9562	7168
Torque lb-ft	0	5.28	10.82	16.57	22.24	28	33.7	25.7

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·769 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

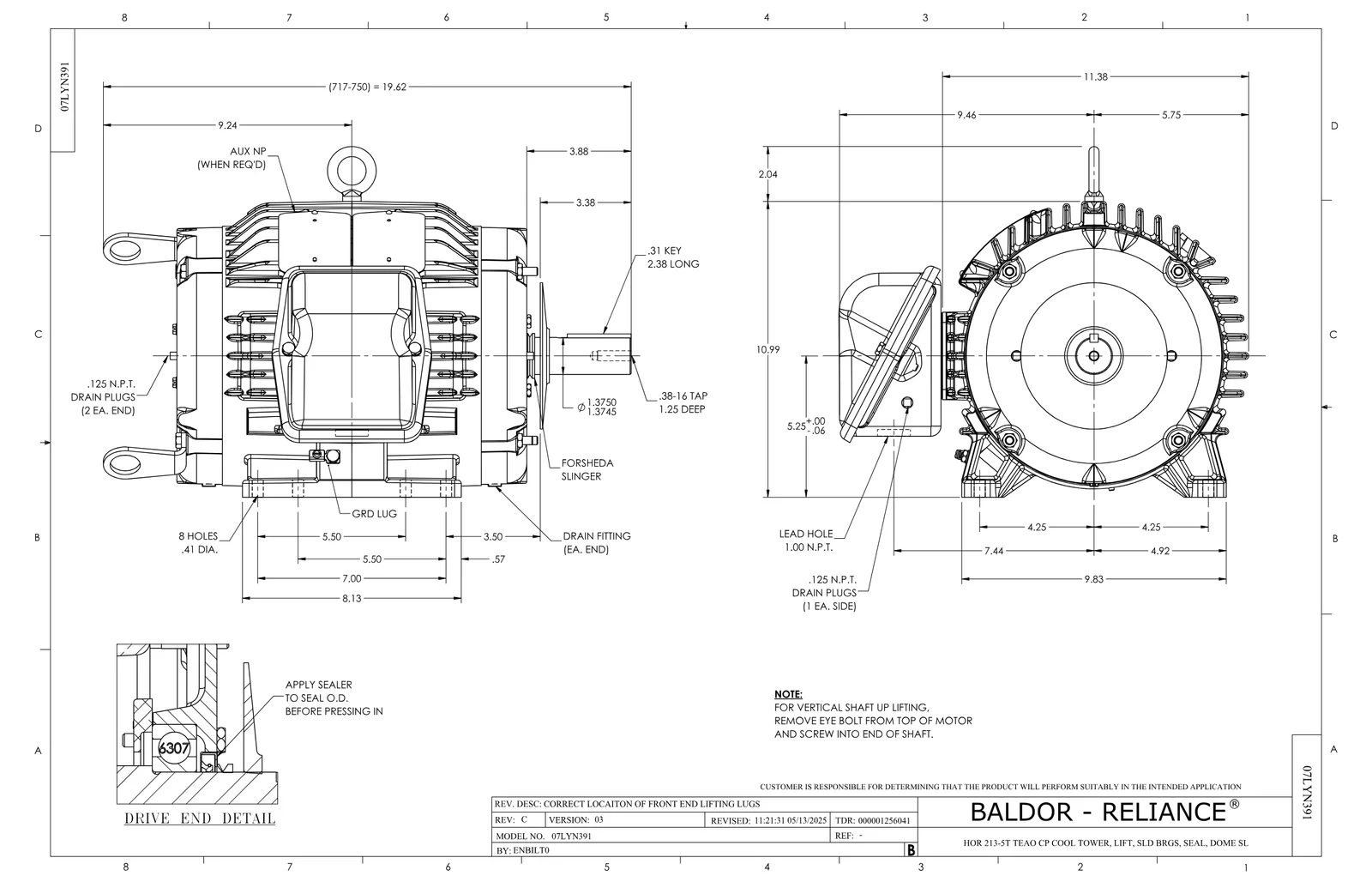

Dimension DrawingDimension SheetPDF·203 KB·English
