How can I get a price quote for Baldor CSPM4400T-4?

You can request a fast quote for Baldor CSPM4400T-4 from Yılsa Engineering. Reference part number YLSHPOKQSNO8N7G. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor CSPM4400T-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor CSPM4400T-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor CSPM4400T-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

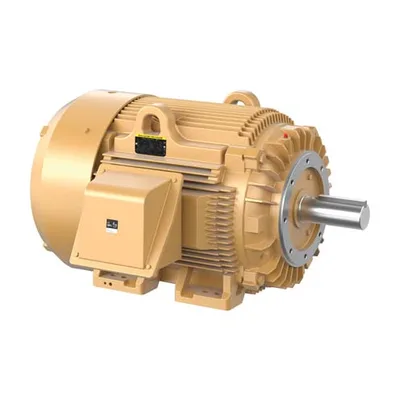

Baldor CSPM4400T-4

Super Premium SP4 Severe Duty Motor - 100 hp, 1800 rpm, 3 ph, 460 V, 405TC Frame, TEFC Enclosure, 60 Hz, 1790 rpm Base, Inverter Duty

BaldorMFR # CSPM4400T-4SKU # YLSHPOKQSNO8N7G

EnclosureTEFC

Frame405TC

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency100.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Super Premium SP4 Severe Duty Motor - 100 hp, 1800 rpm, 3 ph, 460 V, 405TC Frame, TEFC Enclosure, 60 Hz, 1790 rpm Base, Inverter Duty

Baldor CSPM4400T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame405TC

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency100.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D; CLII GP F,G

Hazardous area divisionDivision II

Agency approvalsCCSAUSEEV · CURUSEEV · NEMA PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage115.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load96.2 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)115.0 a

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeH

Lifting lugsStandard Lifting Lugs

Maximum speed (rpm)2700 rpm

Motor lead quantity/wire size3 @ 2 AWG

Motor typeA4076M

Mounting arrangementF1

Number of poles4

Overall length38.19 IN

Power factor83

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeC-Face

Service factor1.15

Shaft diameter2.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1790 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568599907

Motor Supply Voltage460 V

Base RPM1790 rpm

Drive End Bearing Size80BC03J30X

Opposite Drive End Bearing Size80BC03J30X

Mounting TypeC-Face / Foot Mount

IP RatingIP55

Weight1296 lbs.

Product TypeSevere Duty Motors

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 3

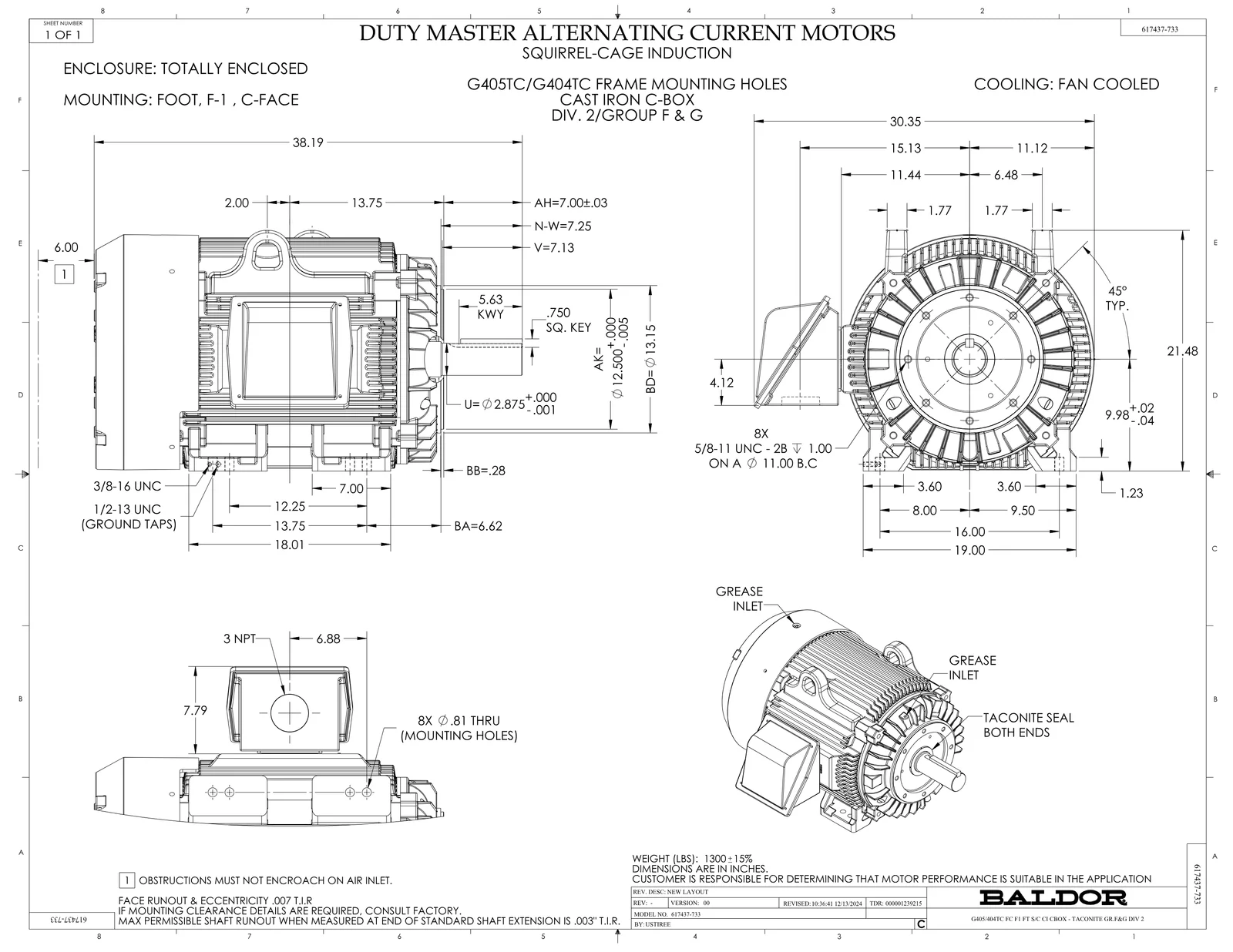

Dimension DrawingDimension SheetPDF·428 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·836 KB·English

Series documents 2· shared by this product series

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CSPM4400T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
078548001R	FAN KB 234/150 (84) 400	1 pcs	123 motors
076709000A	C/B Cover - 360	1 pcs	179 motors
067053000B	GASK 320-400	1 pcs	179 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.38 gal	1,997 motors
