How can I get a price quote for Baldor CSPM4310TS?

You can request a fast quote for Baldor CSPM4310TS from Yılsa Engineering. Reference part number YLSA6PPTS0OP4RN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor CSPM4310TS in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor CSPM4310TS genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor CSPM4310TS?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

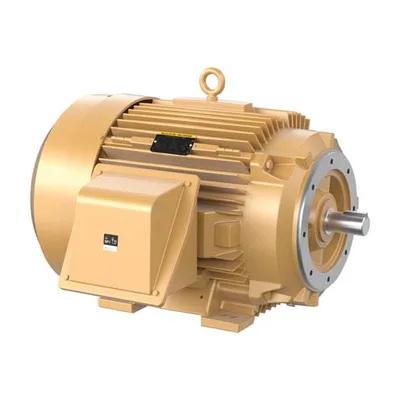

Baldor CSPM4310TS

Super Premium SP4 Severe Duty Motor - 60 hp, 3600 rpm, 3 ph, 230/460 V, 364TSC Frame, TEFC Enclosure, 60 Hz, 3555 rpm Base, Inverter Duty

BaldorMFR # CSPM4310TSSKU # YLSA6PPTS0OP4RN

EnclosureTEFC

Frame364TSC

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Super Premium SP4 Severe Duty Motor - 60 hp, 3600 rpm, 3 ph, 230/460 V, 364TSC Frame, TEFC Enclosure, 60 Hz, 3555 rpm Base, Inverter Duty

Baldor CSPM4310TS

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame364TSC

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D; CLII GP F,G

Hazardous area divisionDivision II

Agency approvalsNEMA PREMIUM · CURUSEEV · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage131.000 A @ 230.0 V · 145.000 A @ 208.0 V · 65.400 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.5 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)65.4 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

KVA codeG

Lifting lugsStandard Lifting Lugs

Maximum speed (rpm)4200 rpm

Motor lead quantity/wire size3 @ 4 AWG

Motor typeA36056M

Mounting arrangementF1

Number of poles2

Overall length31.36 IN

Power factor91

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeC-Face

Service factor1.15

Shaft diameter1.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3555 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568599860

Motor Supply Voltage230/460 V

Base RPM3555 rpm

Drive End Bearing Size65BC03J30X

Opposite Drive End Bearing Size65BC03J30X

Mounting TypeC-Face / Foot Mount

IP RatingIP55

Weight999 lbs.

Product TypeSevere Duty Motors

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 1

DatasheetDatasheetPDF·802 KB·English

Series documents 5· shared by this product series

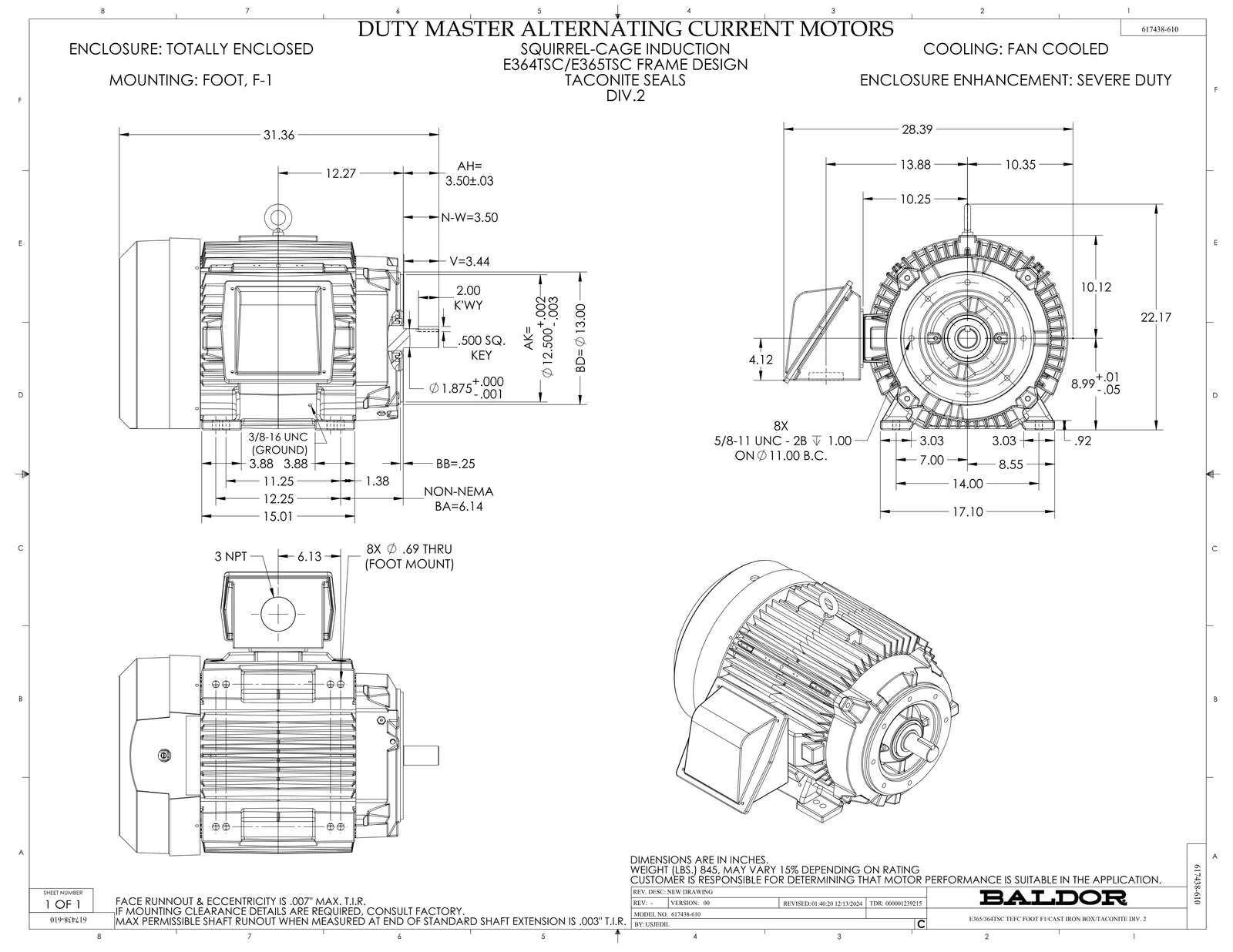

Dimension DrawingDimension SheetPDF·308 KB·English

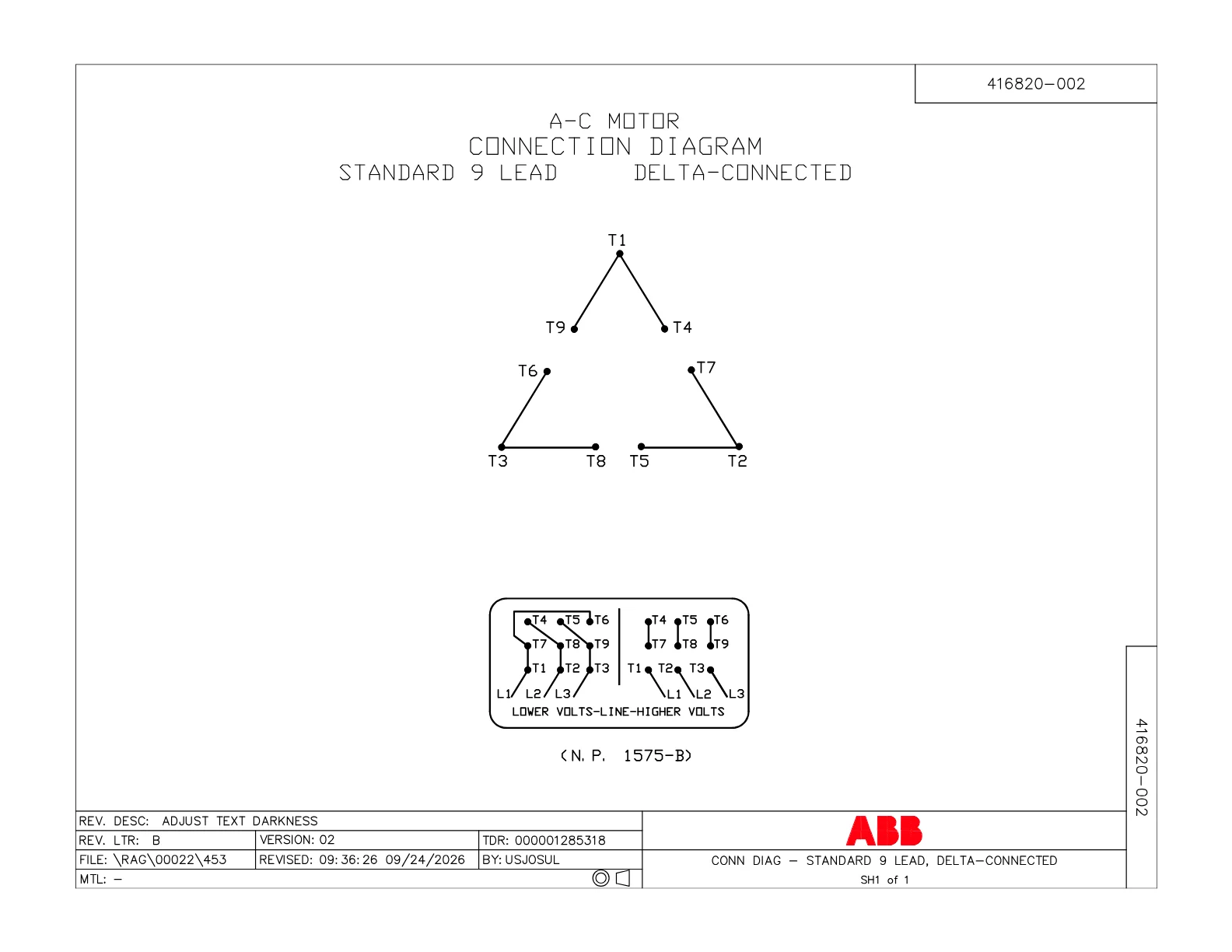

Wiring DiagramWiring DiagramPDF·28 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·113 KB·English

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor CSPM4310TS motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
702674001C	FAN 360	1 pcs	12 motors
034017012AB	LCKW 1/4 STD. PLATED 034017012AF	4 pcs	112 motors
034017014AB	LCKW 3/8 STD. PLATED	4 pcs	376 motors
076709000A	C/B Cover - 360	1 pcs	179 motors
067053000B	GASK 320-400	1 pcs	179 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.25 gal	1,997 motors
