Baldor CSPM3314T-G

Baldor-Reliance CSPM3314T-G is a 15 HP, 3515 rpm, 3-phase 230/460 V, 60 Hz, 215TC frame, ODP general purpose AC electric motor.

BaldorMFR # CSPM3314T-GSKU # YLSXMJD5XGCEVKG

EnclosureODP

Frame215TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CSPM3314T-G is a 15 HP, 3515 rpm, 3-phase 230/460 V, 60 Hz, 215TC frame, ODP general purpose AC electric motor.

Baldor CSPM3314T-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame215TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM (OLD LOGO) · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage17.000 A @ 460.0 V · 34.000 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load92.4 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)17.0 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeK

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5400 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 14 AWG

Motor type3756M

Mounting arrangementF1

Number of poles2

Overall length19.69 IN

Power factor88

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter1.375 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3515 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568663486

Nameplate

Catalog numberCSPM3314T-G

Weight187

Specification number37T744R601

EnclosureOPSB

CC number010A

Ingress protection (IP)23

Horsepower (HP)15

Magnetizing current (A)11.6/5.8

Voltage (V)230/460

NEMA nominal efficiency (%)92.4

Current (A)34/17

Power factor88

Rating40C AMB-CONT

Speed (rpm)3515

Maximum speed (rpm)5400

Frame size215TC

Frequency (Hz)60

Code letter (locked rotor kVA)K

Insulation classH

Service factor1.25

Service factor current (A)41.8/20.9

Phase3

NEMA design letterA

Drive end bearing6307

Opposite drive end bearing6206

LubricationPOLYREX EM

Constant horsepower60

TO90

Inertia (WK²)0.51

Constant torque6

TO60

SL HZ1.4

Variable torque3

TO60

Nameplate numberNP4423A01A01L

Performance

General characteristics· 460 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.406 Ω

Temperature rise at rated load (°C)63° C

Temperature rise at service factor load (°C)85° C

Start configurationDOL

Breakdown torque112 lb-ft

Pull-up torque43.2 lb-ft

Locked-rotor torque62 lb-ft

Starting current (A)161 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	6	53	76	85	88	90	90	90
Efficiency %	0	89.4	92.8	93.2	92.7	91.9	90.8	91.9
Speed rpm	3599	3580	3561	3539	3516	3491	3465	3491
Line amps A	5.75	6.81	9.54	13.1	16.95	20.9	25.31	20.9
Power W	297	2889	5787	8820	11890	14972	18241	14972
Torque lb-ft	0	5.08	10.62	16.36	22.09	27.75	33.67	27.8

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·611 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

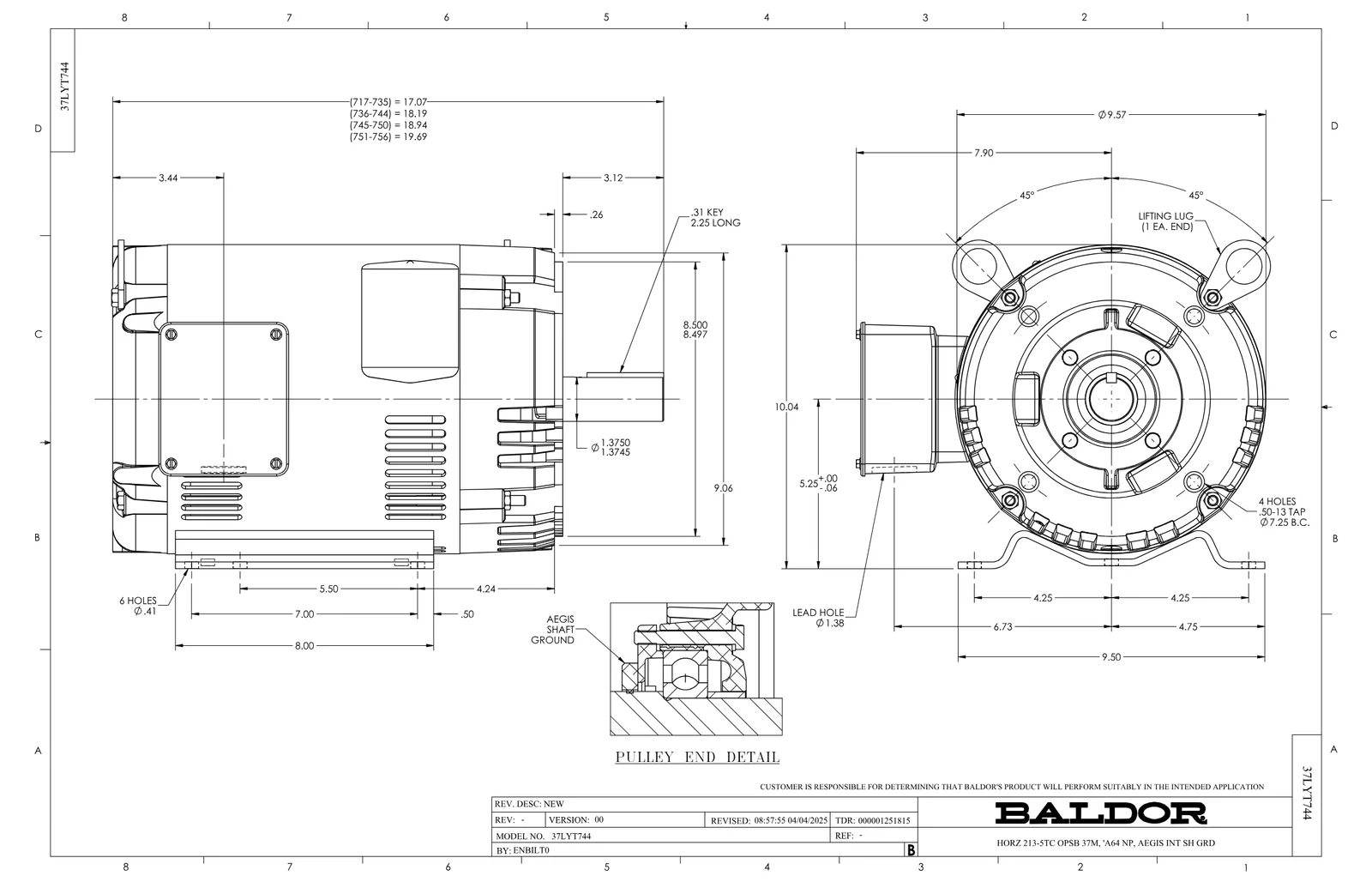

Dimension DrawingDimension SheetPDF·128 KB·English

CAD Files 5

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor CSPM3314T-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	2 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.028 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
