Baldor CSPM2513T-G

Baldor-Reliance CSPM2513T-G is a 15 HP, 1770 rpm, 3-phase 230/460 V, 60 Hz, 254TC frame, ODP general purpose AC electric motor.

BaldorMFR # CSPM2513T-GSKU # YLS00XZSYBXVWB

EnclosureODP

Frame254TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CSPM2513T-G is a 15 HP, 1770 rpm, 3-phase 230/460 V, 60 Hz, 254TC frame, ODP general purpose AC electric motor.

Baldor CSPM2513T-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame254TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM (OLD LOGO) · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage18.300 A @ 460.0 V · 36.600 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.6 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)18.3 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)2700 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 12 AWG

Motor type3958M

Mounting arrangementF1

Number of poles4

Overall length23.20 IN

Power factor82

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter1.625 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568661543

Nameplate

Catalog numberCSPM2513T-G

Weight289

Specification number39E776Y450

EnclosureOPSB

CC number010A

Ingress protection (IP)23

Horsepower (HP)15

Magnetizing current (A)15.2/7.6

Voltage (V)230/460

NEMA nominal efficiency (%)93.6

Current (A)36.6/18.3

Power factor82

Rating40C AMB-CONT

Speed (rpm)1770

Maximum speed (rpm)2700

Frame size254TC

Frequency (Hz)60

Code letter (locked rotor kVA)J

Insulation classH

Service factor1.25

Service factor current (A)29.6/24.8

Phase3

NEMA design letterA

Drive end bearing6309

Opposite drive end bearing6208

LubricationPOLYREX EM

Constant horsepower1.5

TO1

Inertia (WK²)2.54

Constant torque10

TO1

SL HZ1

Variable torque20

TO1

Nameplate numberNP4423A01A05L

Performance

General characteristics· 460 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.41963 Ω

Temperature rise at rated load (°C)23° C

Temperature rise at service factor load (°C)30° C

Start configurationDOL

Breakdown torque216 lb-ft

Pull-up torque102 lb-ft

Locked-rotor torque128 lb-ft

Starting current (A)174 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	39	61	73	79	83	85	83
Efficiency %	0	88.4	92.8	93.9	94.1	93.9	93.5	93.9
Speed rpm	1800	1795.9	1790.9	1786.2	1781.1	1776.1	1770.5	1776
Line amps A	9.46	10.4	12.6	15.4	18.8	22.5	26.4	22.5
Power W	349	3215	6067	8963	11919	14908	17974	14908
Torque lb-ft	0	11.14	22.14	33.19	44.37	55.53	66.86	55.5

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·642 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

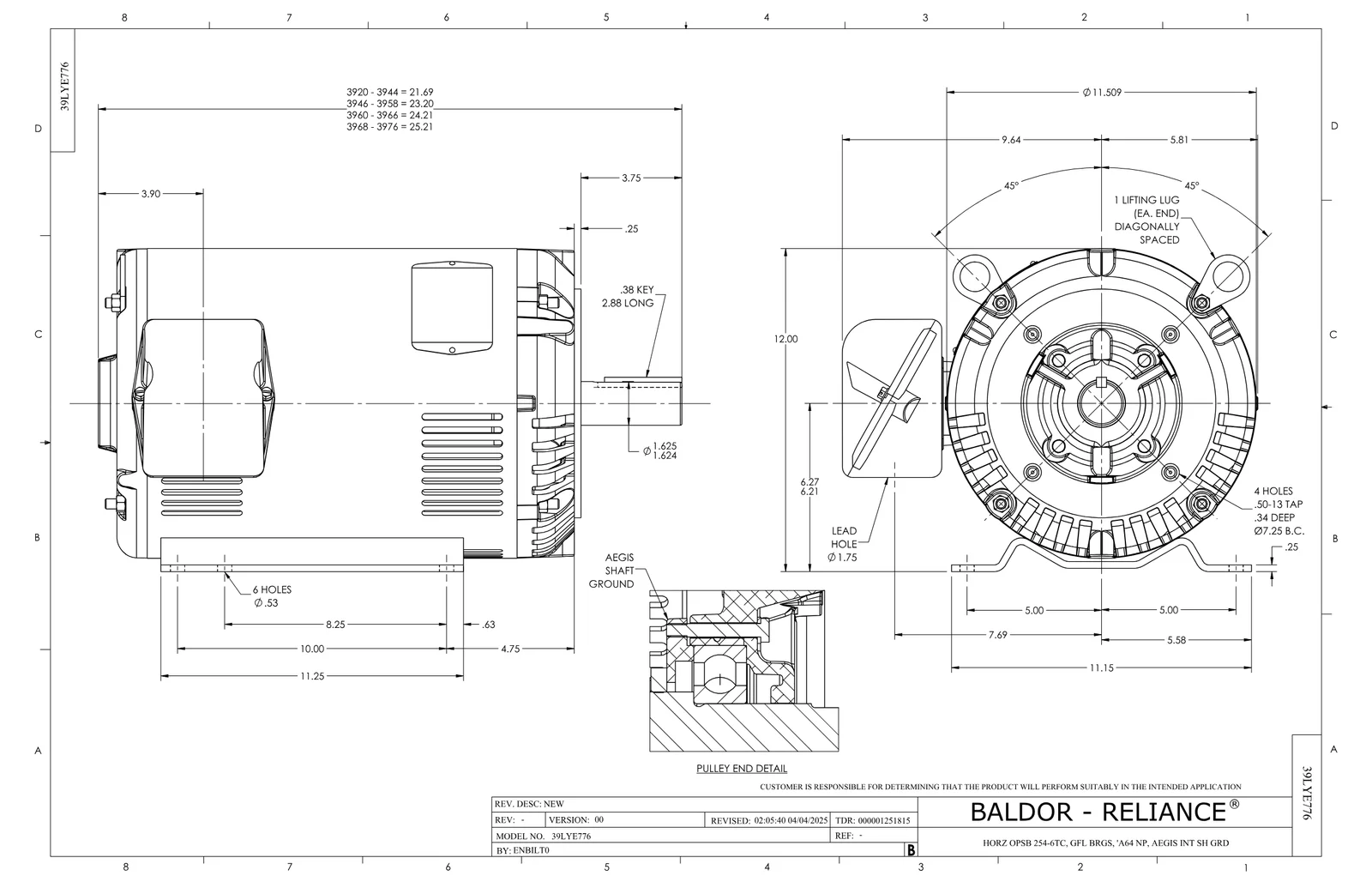

Dimension DrawingDimension SheetPDF·156 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 5

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CSPM2513T-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.05 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
