Baldor CM2333T-58

Baldor-Reliance CM2333T-58 is a 15 HP, 1460 rpm, 3-phase 380/415 V, 50 Hz, 254TC frame, TEFC general purpose AC electric motor.

BaldorMFR # CM2333T-58SKU # YLS7OVTIHQVSDIL

EnclosureTEFC

Frame254TC

Frame materialCast Iron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CM2333T-58 is a 15 HP, 1460 rpm, 3-phase 380/415 V, 50 Hz, 254TC frame, TEFC general purpose AC electric motor.

Baldor CM2333T-58

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame254TC

Frame materialCast Iron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency380.0 V @ 50 HZ · 415.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage22.000 A @ 380.0 V · 22.500 A @ 415.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load90.2 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)22.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 12 AWG

Motor type0760M

Mounting arrangementF1

Number of poles4

Overall length23.32 IN

Power factor82

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1460 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568709306

Nameplate

Catalog numberCM2333T-58

Specification number07K349Y251G2

Horsepower (HP)15

Voltage (V)380-415

Current (A)22-22.5

Speed (rpm)1460

Frame size254TC

Frequency (Hz)50

Phase3

Service factor1.00

Code letter (locked rotor kVA)J

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)90.2

Power factor82

Rating40C AMB-CONT

Drive end bearing6309

Opposite drive end bearing6307

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 415 V, 50 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.593 Ω

Temperature rise at rated load (°C)79° C

Start configurationDOL

Breakdown torque207 lb-ft

Pull-up torque86.4 lb-ft

Locked-rotor torque135 lb-ft

Starting current (A)165 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	5	40	60	71	77	80	82
Efficiency %	0	85.7	90.7	91.2	90.2	89.1	87
Speed rpm	1499	1491	1483	1473	1463	1452	1438
Line amps A	9.95	11.2	14.3	17.9	22.3	27.1	32.7
Power W	386	3189	6201	9176	12380	15650	19220
Torque lb-ft	0	12.9	26.7	40	53.7	67.6	81.8

Documents & CAD

For this product 4

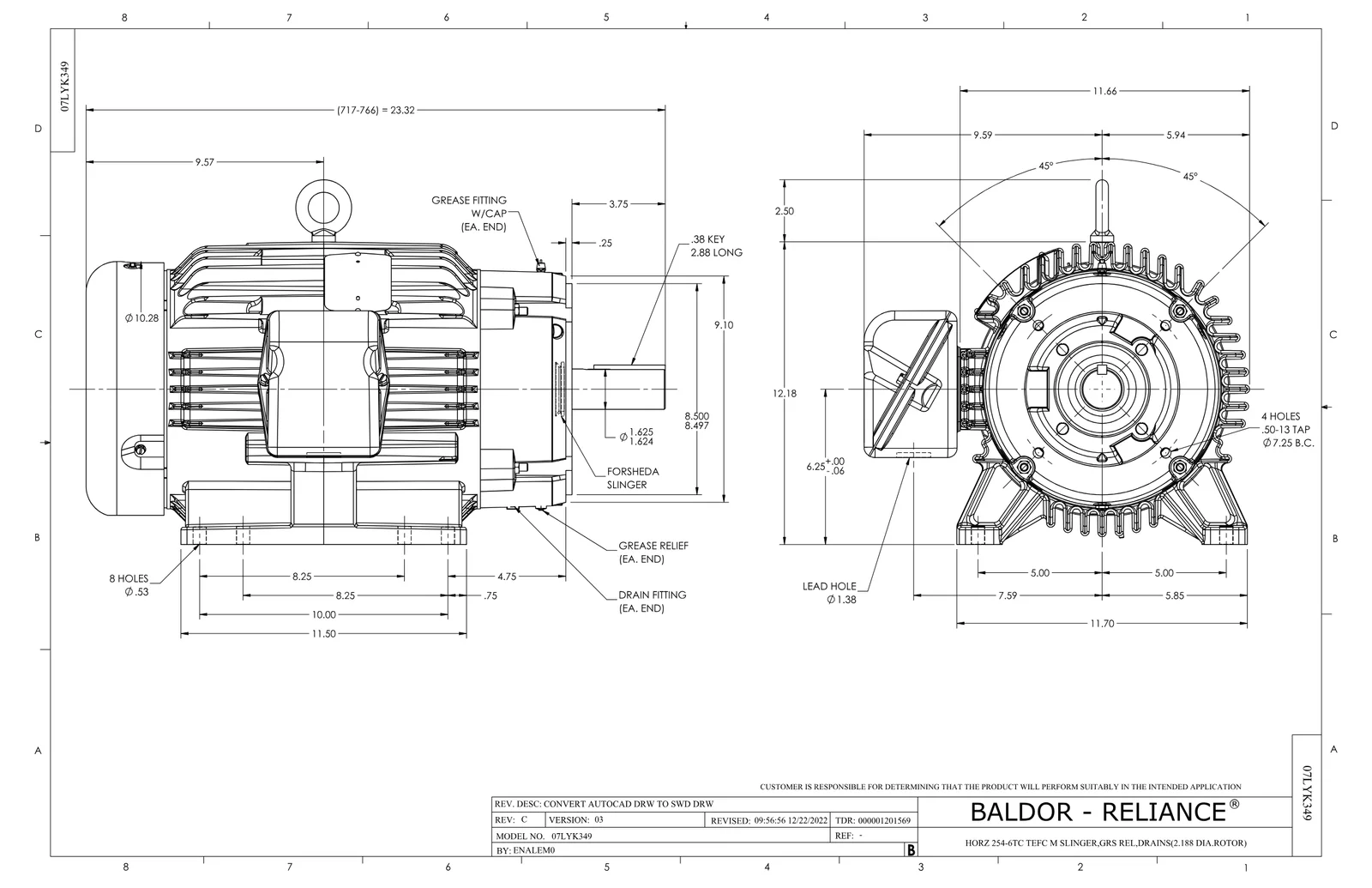

Dimension DrawingDimension SheetPDF·199 KB·English

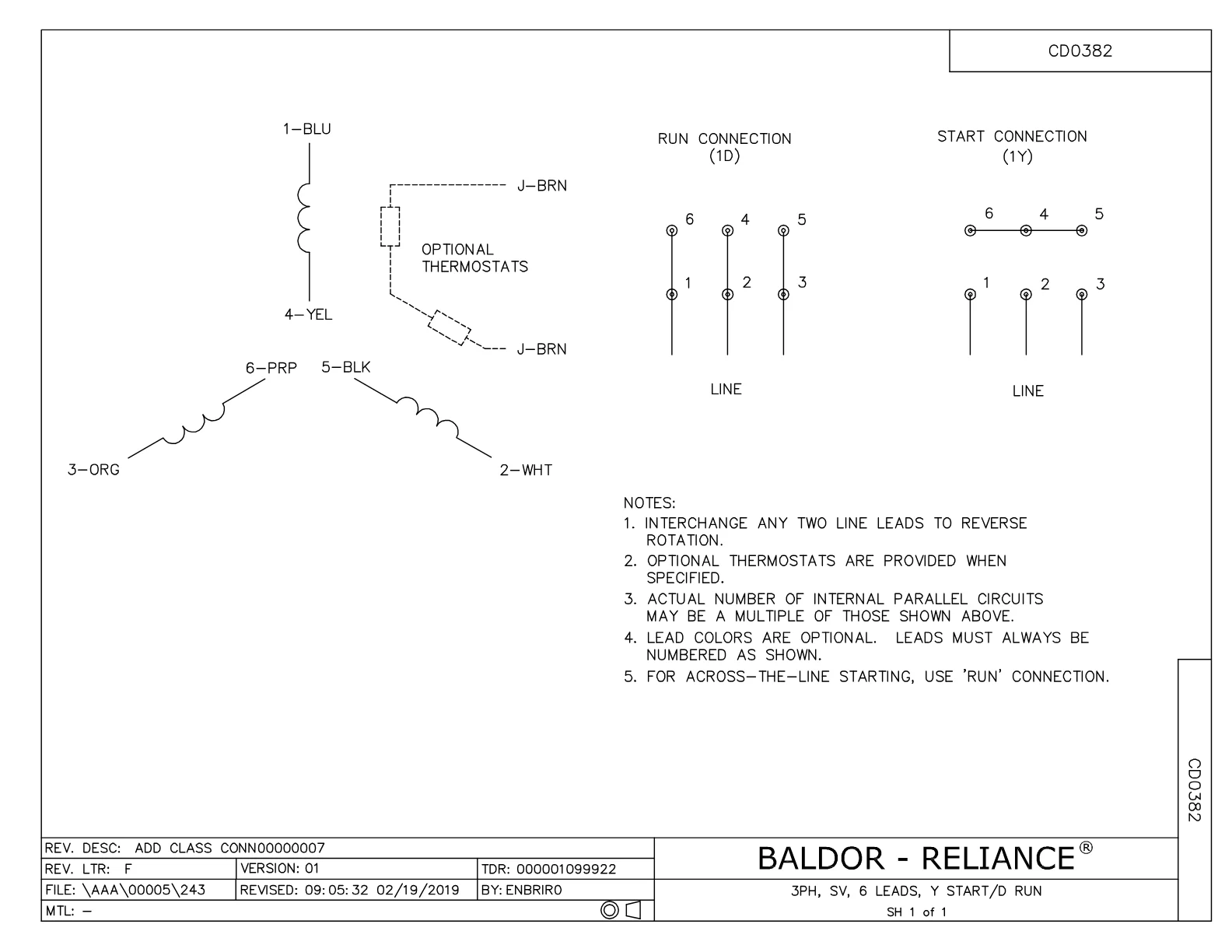

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·680 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor CM2333T-58 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	1 pcs	141 motors
09CB3002SP	CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30	1 pcs	88 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
07FH4007SP	PRIMED	1 pcs	189 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
09GS1013SP	GS FOR 09CB3501, 12CB1500 & 12CB1503 LID	1 pcs	245 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
