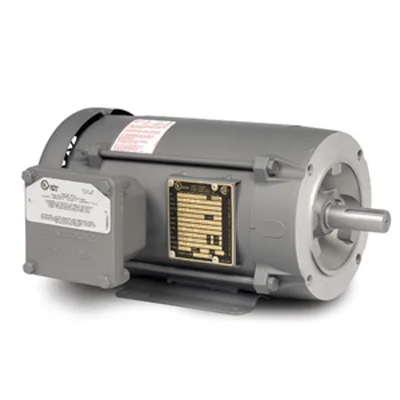

Baldor CL5020

Explosion Proof / Hazardous Location Motor - 5 hp, 1800 rpm, 1 ph, 230 V, 215C Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Foot Mount, Continuous Duty

BaldorMFR # CL5020SKU # YLS4N16NA8YO5QU

Motor CategoryGeneral Purpose Motor

Motor Phase1 ph

Motor Horsepower5 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage230 V

Frame Size215C

Have questions?Chat on WhatsApp

About This Product

Explosion Proof / Hazardous Location Motor - 5 hp, 1800 rpm, 1 ph, 230 V, 215C Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Foot Mount, Continuous Duty

Baldor CL5020

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryGeneral Purpose Motor

Motor Phase1 ph

Motor Horsepower5 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage230 V

Frame Size215C

Enclosure TypeEPFC (Explosion Proof Fan Cooled)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Base RPM1725 rpm

Full Load Current21.00 A

Full Load Efficiency84.00 %

Amps @ Voltage21.0 A @ 230 V

Volts @ Frequency230 V @ 60 Hz

Shaft Diameter1.1250 in

Overall Length C Dimension20.69 in

Service Factor1.00

Frame MaterialSteel

Insulation ClassB

Standards MetCSA, UL

Temperature CodeT2C

Group & ClassDivision 1, Class I - Group D

Harmonization Code8501.40.6040

Weight170 lbs

ApplicationsIdeal for use on pumps, blowers, valves, and gearboxes where hazardous fumes and dust are present requiring Div 1 UL listed and/or CSA approved enclosures.

Additional DetailsUL & CSA approved for Class I, Group D; Class I, Group D, ClassII, Group F & G. Totally enclosed heavy gauge steel and cast iron construction.Corrosion resistant epoxy paint. Single and Three Phase designs. 1.0 ServiceFactor. Three Phase 143T frame and larger have 60Hz & 50Hz data included onthe nameplate. Super-E® explosion proof motors have NEMA Premium® efficiencyand 3 year warranty. Fixed speed sine wave operation only. No Drip Cover.

Mounting TypeC-Face / Foot

Product TypeExplosion Proof (Hazardous Location) Motors
