Baldor CL3710T

Baldor-Reliance CL3710T is a 7.5 HP, 1745 rpm, single-phase 208/230 V, 60 Hz, 215TC frame, TEFC general purpose AC electric motor.

BaldorMFR # CL3710TSKU # YLSWAWD8H6AIVT7

EnclosureTEFC

Frame215TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency7.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CL3710T is a 7.5 HP, 1745 rpm, single-phase 208/230 V, 60 Hz, 215TC frame, TEFC general purpose AC electric motor.

Baldor CL3710T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame215TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency7.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage29.000 A @ 230.0 V · 31.000 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)29.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor type3734LC

Mounting arrangementF1

Number of poles4

Overall length19.75 IN

Power factor97

Product familyGeneral Purpose

Pulley face codeC-Face

Rodent screenNone

Service factor1.00

Shaft diameter1.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1745 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568920206

Nameplate

Catalog numberCL3710T

Specification number37-0000-0099

Horsepower (HP)7.5

Voltage (V)208-230

Current (A)31-29

Speed (rpm)1745

Frame size215TC

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)G

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)86.5

Power factor97

Rating40C AMB-CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 7.5 hp

Line-to-line resistance at 25 °C (ohms)0.263 Ω / 0.705 Ohms B Ph

Temperature rise at rated load (°C)90° C

Start configurationDOL

Breakdown torque62.7 lb-ft

Pull-up torque41.1 lb-ft

Locked-rotor torque64 lb-ft

Starting current (A)186 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	54	91	97	98	97	97	96
Efficiency %	0	70.9	83.8	86.8	86.8	85	81.3
Speed rpm	1799	1787	1775	1761	1745	1726	1701
Line amps A	5.37	9.1	14.9	21.4	28.6	36.8	46.8
Power W	669	1912	3311	4816	6396	8197	10288
Torque lb-ft	0	5.34	11	16.7	22.4	28.4	34.6

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·109 KB·English

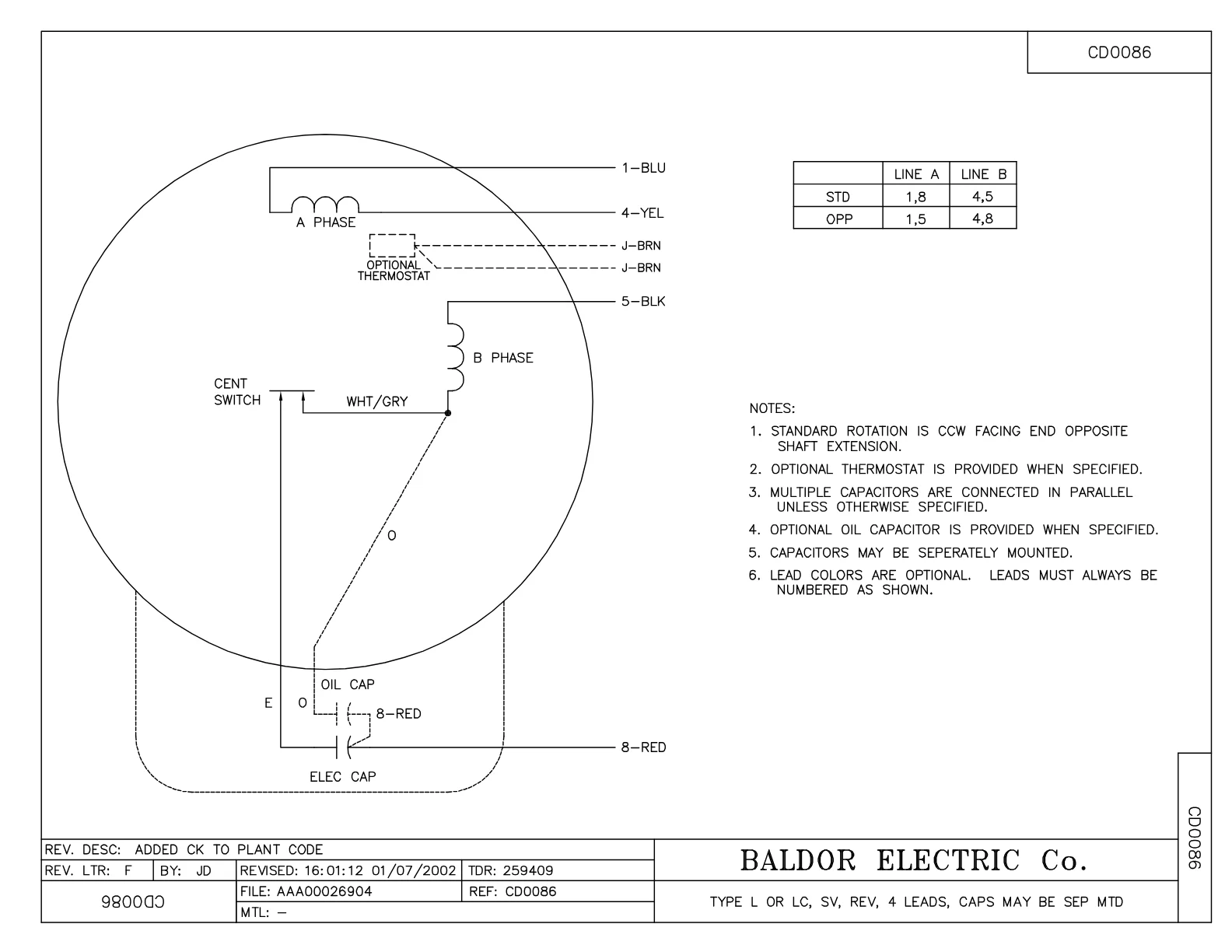

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·588 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor CL3710T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	1 pcs	69 motors
OC3035F09SP	CYL OIL CAP 35MFD/370V	1 pcs	18 motors
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	1 pcs	141 motors
37EP3101A01SP	FRONT TEFC 206 BRG 37 L&M, W/GREASER	1 pcs	7 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	3 pcs	45 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
