Baldor CL3619TM

Pressure Washer Motor - 3 hp, 1800 rpm, 1 ph, 208-230 V, 184TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Foot Mount, Continuous Duty

BaldorMFR # CL3619TMSKU # YLS8O8SN02TVCVX

EnclosureTEFC

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Pressure Washer Motor - 3 hp, 1800 rpm, 1 ph, 208-230 V, 184TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Foot Mount, Continuous Duty

Features and Benefits

Pressure cast aluminum end plates with ribbed design for rigidity
Ball bearings with a locked drive end bearing, heavy-gauge steel frame, and gasketed conduit box and capacitor cover
Applications: Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor

Baldor CL3619TM

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage13.200 A @ 230.0 V · 13.800 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load81.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)13.2 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 14 AWG, A PH

Motor type3634LC

Mounting arrangementF1

Number of poles4

Overall length16.54 IN

Power factor90

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568112441

Additional DetailsBall bearing design. 1 1/2 horsepower ratings are rated at 14 amps or less on 115 volts. Manual thermal overload located in the conduit box. UL and CSA recognized component approval. Capacitor start, capacitor run (two value capacitor).

Type Of BearingBall

ApplicationsPressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and doubled mount designs.

Base RPM1725 rpm

Harmonization Code8501.40.6040

IP Rating44

Motor CategoryPressure Washer Motor

Motor Supply Voltage208-230 V

Mounting TypeC-Face / Foot

Warranty2 Year Warranty

Weight93 lbs

Product TypeDefinite Purpose Motors

Documents & CAD

For this product 2

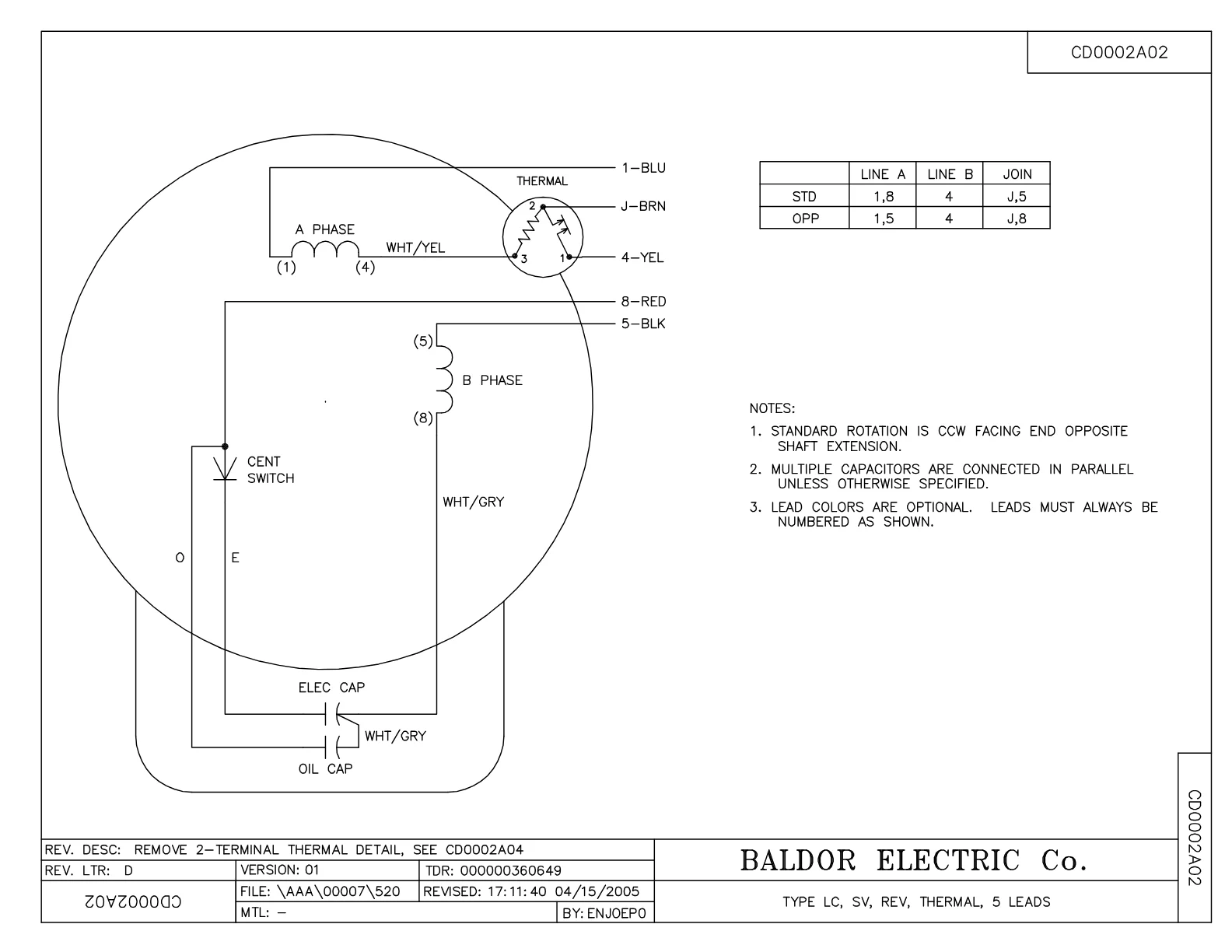

Wiring DiagramWiring DiagramPDF·32 KB·English

DatasheetDatasheetPDF·497 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·102 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor CL3619TM motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
36EP3104A01	FREP MACH W/GRSR, RAISED FH PADS	1 pcs	141 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
