Baldor CL3612TM

Baldor-Reliance CL3612TM is a 5 HP, 1725 rpm, single-phase 208/230 V, 60 Hz, 184TC frame, TEFC general purpose AC electric motor.

BaldorMFR # CL3612TMSKU # YLSNPQBKZN4YAB4

EnclosureTEFC

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CL3612TM is a 5 HP, 1725 rpm, single-phase 208/230 V, 60 Hz, 184TC frame, TEFC general purpose AC electric motor.

Baldor CL3612TM

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsWEEE · CE · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage23.000 A @ 230.0 V · 23.600 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load80.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)23.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3646LC

Mounting arrangementF1

Number of poles4

Overall length18.05 IN

Power factor88

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568112465

Nameplate

Catalog numberCL3612TM

Specification number36F189W279

Horsepower (HP)5

Voltage (V)208-230

Current (A)23.6-23

Speed (rpm)1725

Frame size184TC

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)J

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)80

Power factor88

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureTEFC

Nameplate numberNP1257L

Performance

General characteristics· 208 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.349 Ω / 1.42 Ohms B Ph

Temperature rise at rated load (°C)92° C

Start configurationDOL

Breakdown torque34.5 lb-ft

Pull-up torque29.6 lb-ft

Locked-rotor torque37.9 lb-ft

Starting current (A)146 A

Line-to-line resistance at 25 °C (ohms)0.353 Ω / 2.23 Ohms B Ph

Temperature rise at rated load (°C)97° C

Start configurationDOL

Breakdown torque43 lb-ft

Pull-up torque36 lb-ft

Locked-rotor torque46 lb-ft

Starting current (A)163 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	26	64	88	88	92	94	93
Efficiency %	0	70.7	79.5	83.4	81.5	78.7	73.4
Speed rpm	1798	1784	1765	1743	1721	1697	1662
Line amps A	6.67	10.2	12.9	18.4	23.6	29.6	37.8
Power W	361	1352	2368	3354	4528	5792	7338
Torque lb-ft	0	3.77	7.51	11.3	15.1	18.9	22.8

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·113 KB·English

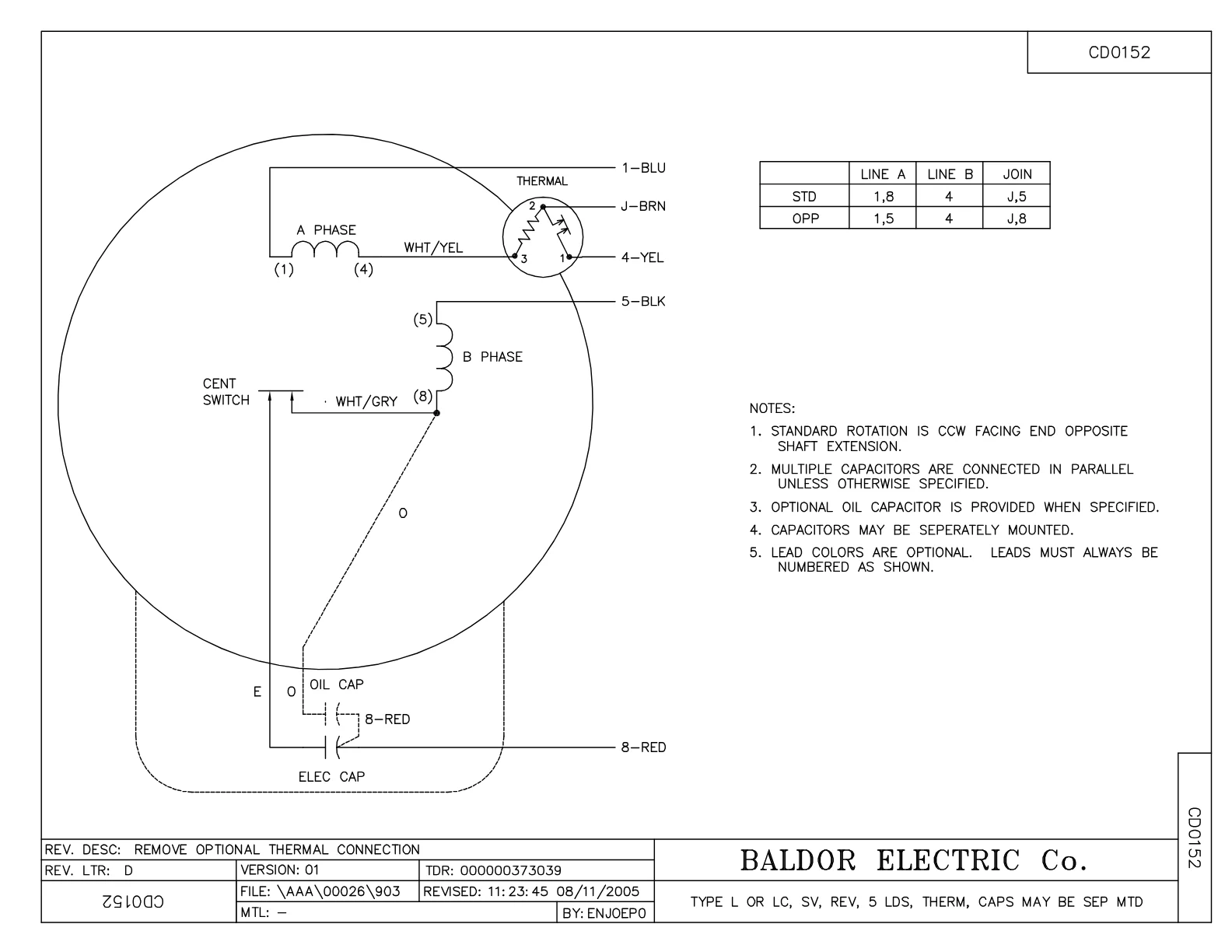

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·675 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor CL3612TM motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3030F11SP	CAPACITOR 30 MFD 370 VAC	1 pcs	33 motors
TPLED1027SP	THERMAL 1PH 1.5 MAN REF LED989 TDR #5817	1 pcs	6 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	2 pcs	45 motors
36EP3104A01	FREP MACH W/GRSR, RAISED FH PADS	1 pcs	141 motors
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
37GS3003SP	GASKET, CAPAC BOX LID X	1 pcs	5 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
