Baldor CL3516TM

Baldor-Reliance CL3516TM is a 2 HP, 1740 rpm, single-phase 208/230 V, 60 Hz, 145TC frame, TEFC general purpose AC electric motor.

BaldorMFR # CL3516TMSKU # YLS7XGJPV9XR2MX

EnclosureTEFC

Frame145TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CL3516TM is a 2 HP, 1740 rpm, single-phase 208/230 V, 60 Hz, 145TC frame, TEFC general purpose AC electric motor.

Baldor CL3516TM

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame145TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency2.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage8.200 A @ 230.0 V · 8.900 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load78.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)8.2 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 16 AWG, A PH

Motor type3534LC

Mounting arrangementF1

Number of poles4

Overall length14.16 IN

Power factor99

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1740 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568112427

Nameplate

Catalog numberCL3516TM

Specification number35KK375G819G1

Horsepower (HP)2

Voltage (V)208-230

Current (A)8.9-8.2

Speed (rpm)1740

Frame size145TC

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)78

Power factor99

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)1.6721 Ω / 3.8548 Ohms B Ph

Temperature rise at rated load (°C)80° C

Temperature rise at service factor load (°C)93° C

Start configurationDOL

Breakdown torque17.5 lb-ft

Pull-up torque12 lb-ft

Locked-rotor torque19.1 lb-ft

Starting current (A)65.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	87	97	99	99	99	99	99	99
Efficiency %	0	52.1	70.1	77.3	79.8	79.5	77.4	79.6
Speed rpm	1798.5	1785.1	1773.1	1758.2	1743.1	1722.5	1698.8	1731
Line amps A	2.03	3.29	4.71	6.38	8.19	10.3	12.7	9.46
Power W	398	731	1071	1455	1877	2354	2897	2163
Torque lb-ft	0	1.502	2.981	4.505	6.05	7.651	9.291	7.01

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·109 KB·English

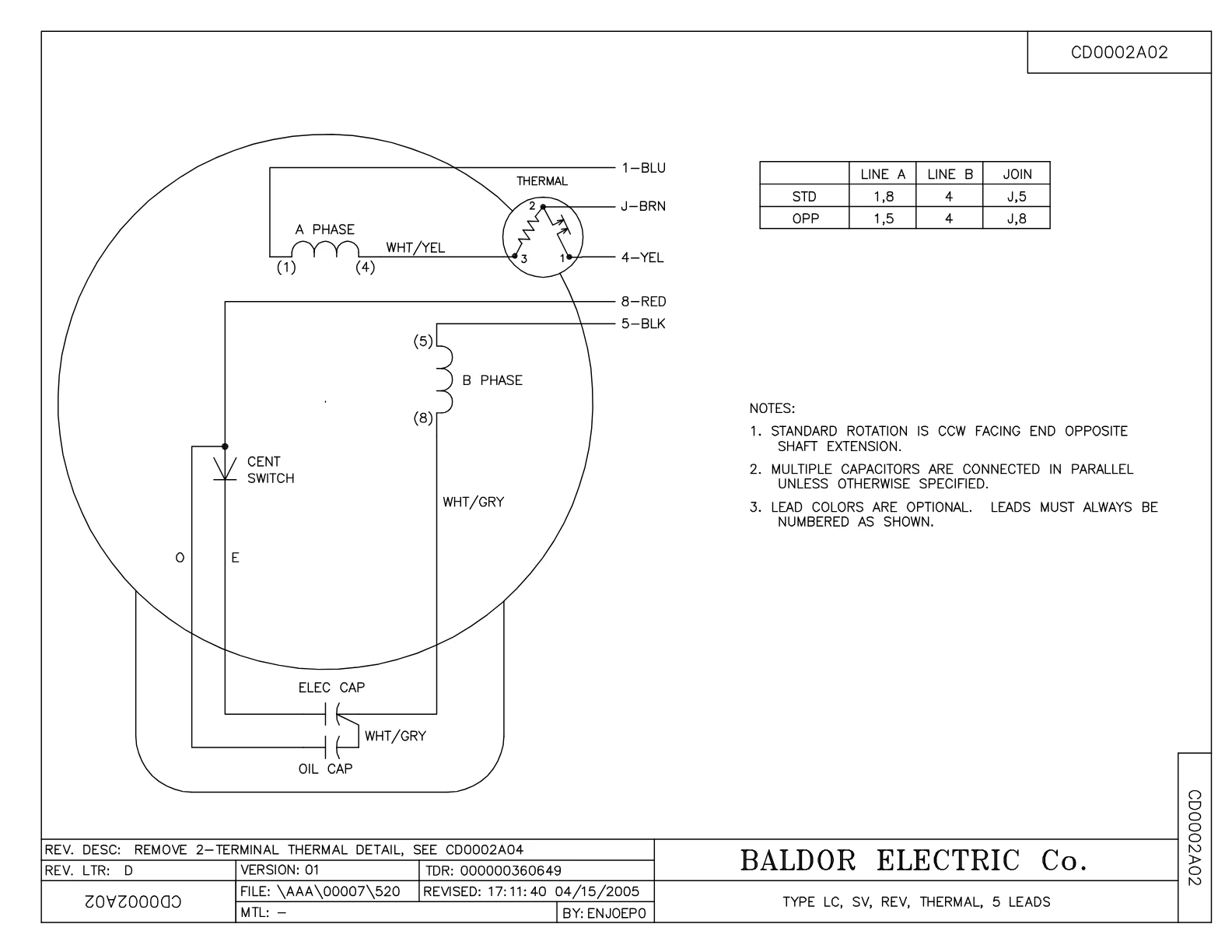

Wiring DiagramWiring DiagramPDF·32 KB·English

DatasheetDatasheetPDF·584 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor CL3516TM motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3030F11SP	CAPACITOR 30 MFD 370 VAC	1 pcs	33 motors
TPCRD4757SP	THERMAL 1PH 1.0 MAN REF CRD4707 TD	1 pcs	6 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	1 pcs	45 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35FH4005A84SP	IEC FH W/GRSR, NO DIMPLES PRIMED	1 pcs	167 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
