Baldor CJL1317A

Baldor-Reliance CJL1317A is a 2 HP, 3450 rpm, 1-phase 115/230 V, 60 Hz, 56J frame, ODP enclosed general purpose single-phase AC induction motor.

BaldorMFR # CJL1317ASKU # YLSRJA4I0HU3UHE

EnclosureODP

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CJL1317A is a 2 HP, 3450 rpm, 1-phase 115/230 V, 60 Hz, 56J frame, ODP enclosed general purpose single-phase AC induction motor.

Baldor CJL1317A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency2.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage13.000 A @ 230.0 V · 26.000 A @ 115.0 V

Design codeL

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)13.0 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 14 AWG, A&J

Motor type3528L

Mounting arrangementF1

Number of poles2

Overall length13.25 IN

Power factor69

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorExt Thread

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.20

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use Eve-Not Valiid

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568112922

Nameplate

Catalog numberCJL1317A

Specification number35T951W183G1

Horsepower (HP)2

Voltage (V)115/230

Current (A)26/13

Speed (rpm)3450

Frame size56J

Frequency (Hz)60

Phase1

Service factor1.20

Code letter (locked rotor kVA)G

NEMA design letterL

Insulation classB

NEMA nominal efficiency (%)70

Power factor69

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)0.842 Ω / 0.843 Ohms B Ph

Temperature rise at rated load (°C)77° C

Temperature rise at service factor load (°C)87° C

Start configurationDOL

Breakdown torque10.4 lb-ft

Pull-up torque5.9 lb-ft

Locked-rotor torque7.1 lb-ft

Starting current (A)79 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	22	38	53	65	71	80	84	78
Efficiency %	0	46	60	66	70	68	67.5	68.4
Speed rpm	3589	3569	3547	3523	3498	3469	3436	3475
Line amps A	9.3	9.5	10.3	11.4	13	14.7	16.8	13.8
Power W	471	827	1260	1706	2129	2717	3254	0
Torque lb-ft	0	0.75	1.5	2.25	3	3.75	4.5	0

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·112 KB·English

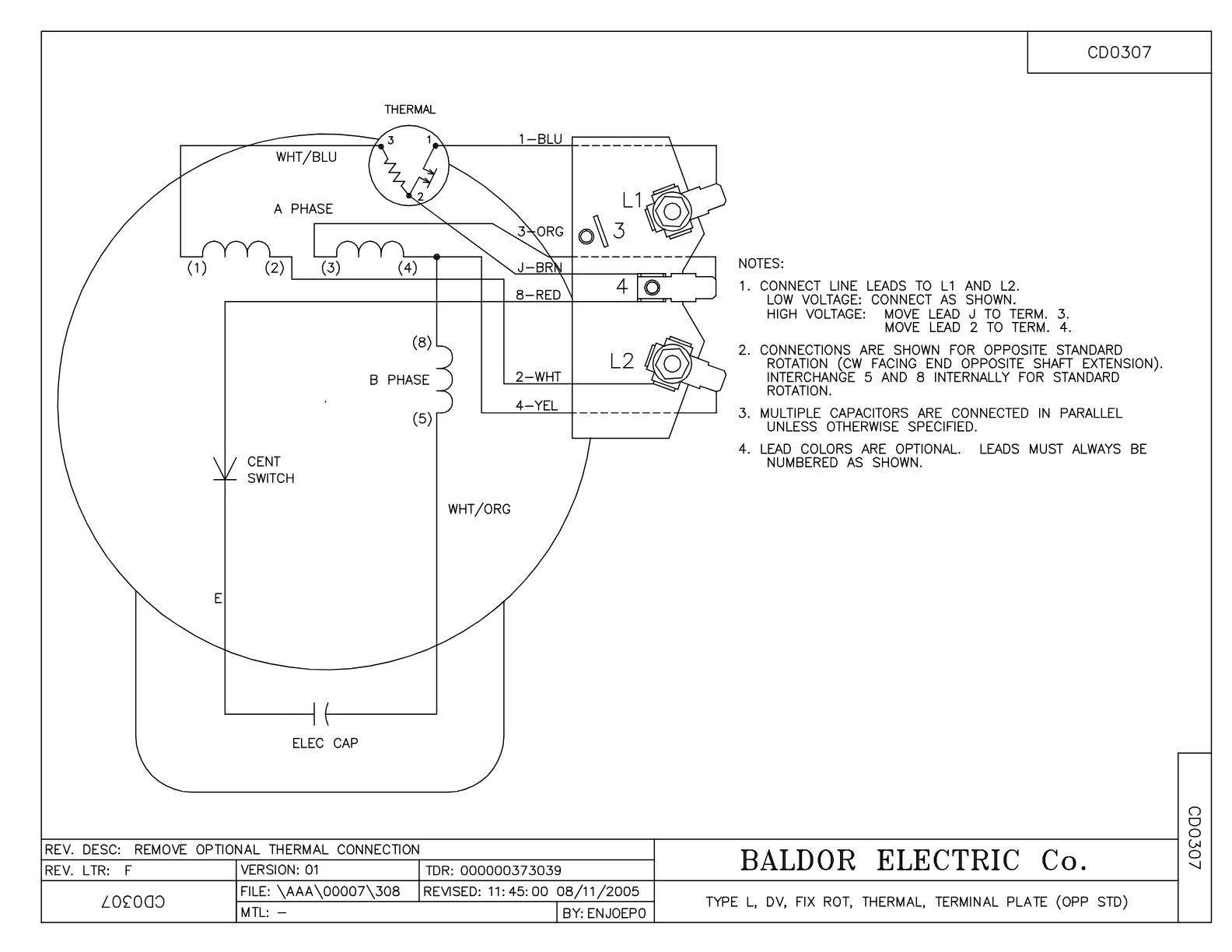

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·598 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor CJL1317A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1645A06SP	ELEC CAP, 645-774 MFD, 125V, 2.06D X 4.	1 pcs	56 motors
35EP3202A02SP	FR ENDPLATE, MACH	1 pcs	3 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
