Baldor CJL1205A

Baldor-Reliance CJL1205A is a 0.33 HP, 3450 rpm, 1-phase 115/230 V, 60 Hz, 56J frame, ODP enclosed general purpose single-phase AC induction motor.

BaldorMFR # CJL1205ASKU # YLSEIW5DGLZ0TH6

EnclosureODP

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.330 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CJL1205A is a 0.33 HP, 3450 rpm, 1-phase 115/230 V, 60 Hz, 56J frame, ODP enclosed general purpose single-phase AC induction motor.

Baldor CJL1205A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.330 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.100 A @ 230.0 V · 6.200 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load58.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.1 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationFlying Leads

Motor lead quantity/wire size5 @ 18 AWG

Motor type3416L

Mounting arrangementF1

Number of poles2

Overall length11.91 IN

Power factor61

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorExt Thread

Rodent screenNone

Service factor1.75

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568134504

Nameplate

Catalog numberCJL1205A

Specification number34F40-2534

Horsepower (HP).33

Voltage (V)115/230

Current (A)6.2/3.1

Speed (rpm)3450

Frame size56J

Frequency (Hz)60

Phase1

Service factor1.75

Code letter (locked rotor kVA)L

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)58

Power factor61

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)4.92 Ω / 3.95 Ohms B Ph

Temperature rise at rated load (°C)31° C

Temperature rise at service factor load (°C)43° C

Start configurationDOL

Breakdown torque1.7 lb-ft

Pull-up torque1.5 lb-ft

Locked-rotor torque1.6 lb-ft

Starting current (A)14.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	30	39	48	56	63	69	73	81
Efficiency %	0	26	40.6	49.5	55.3	59.1	61.6	66.7
Speed rpm	3578	3561	3544	3525	3505	3484	3461	3442
Line amps A	2.55	2.6	2.75	2.9	3.05	3.3	3.55	3.8
Power W	176	243	310	379	450	523	599	0
Torque lb-ft	0	0.125	0.25	0.375	0.5	0.625	0.75	0

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·101 KB·English

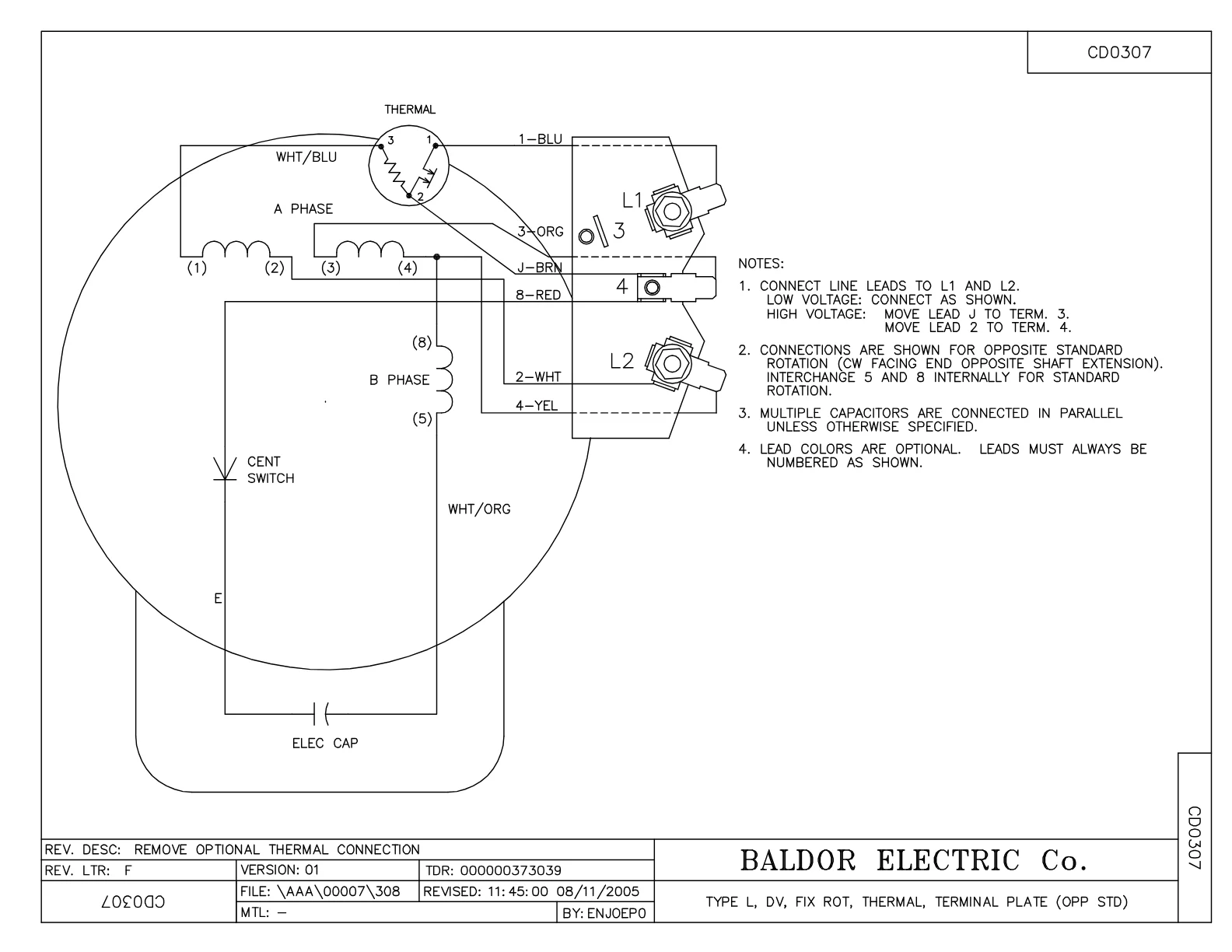

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·584 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor CJL1205A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1130A02SP	ELEC CAP, 130-156 MFD, 125V, 1.48D X 3.3	1 pcs	15 motors
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
34CB4800SP	CAPACITOR COVER, STAMPED PRIMED	1 pcs	79 motors
34EP3401A01SP	PU ENDPLATE, MACH	1 pcs	36 motors
HW4600B39SP	V-RING SLINGER 0.550 X 0.790 X .18 VITON	1 pcs	142 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
