Baldor CHM264A

Baldor-Reliance CHM264A is a 0.33 HP, 1140 rpm, 3-phase 230/460 V, 60 Hz, 48YZ frame, TEAO enclosed general purpose three-phase AC induction motor.

BaldorMFR # CHM264ASKU # YLSLTFCBJFMBQYZ

EnclosureTEAO

Frame48YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.330 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CHM264A is a 0.33 HP, 1140 rpm, 3-phase 230/460 V, 60 Hz, 48YZ frame, TEAO enclosed general purpose three-phase AC induction motor.

Baldor CHM264A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame48YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.330 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorResilient

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage.900 A @ 460.0 V · 1.800 A @ 230.0 V · 2.100 A @ 208.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)0.9 a

Front face codeResilient Mount

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 18 AWG

Motor type3414M

Mounting arrangementF1

Number of poles6

Overall length11.34 IN

Power factor51

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeResilient Mount

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.500 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1140 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568408902

Nameplate

Catalog numberCHM264A

Specification number34M250W530G1

Horsepower (HP).33

Voltage (V)230/460

Current (A)1.8/.9

Speed (rpm)1140

Frame size48YZ

Frequency (Hz)60

Phase3

Service factor1.25

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classB

NEMA nominal efficiency (%)70

Power factor51

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEAO

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)14.57 Ω

Start configurationDOL

Breakdown torque5.5 lb-ft

Pull-up torque4.2 lb-ft

Locked-rotor torque4.45 lb-ft

Starting current (A)7.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	10	19	30	42	51	58	64	58
Efficiency %	0	44	58	66	70	71	72	71
Speed rpm	1198	1185	1170	1155	1135	1120	1095	1120
Line amps A	1.5	1.5	1.6	1.7	1.8	1.9	2.1	1.9
Power W	60	143	215	280	345	420	486	420
Torque lb-ft	0	0.375	0.75	1.125	1.5	1.875	2.25	1.88

Documents & CAD

For this product 3

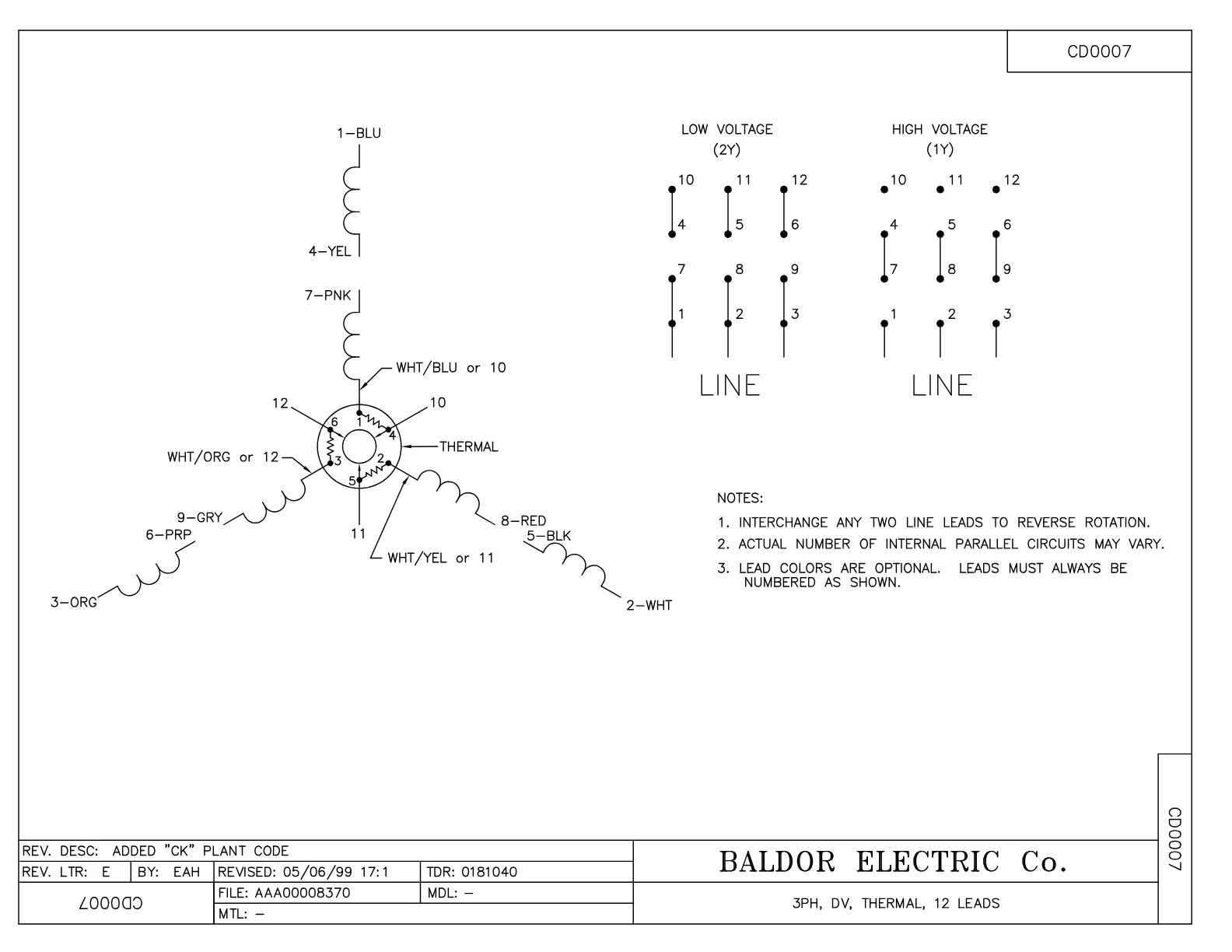

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·588 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·104 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor CHM264A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
