How can I get a price quote for Baldor CHL3523A?

You can request a fast quote for Baldor CHL3523A from Yılsa Engineering. Reference part number YLSV748OODC6MNP. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor CHL3523A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor CHL3523A genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor CHL3523A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

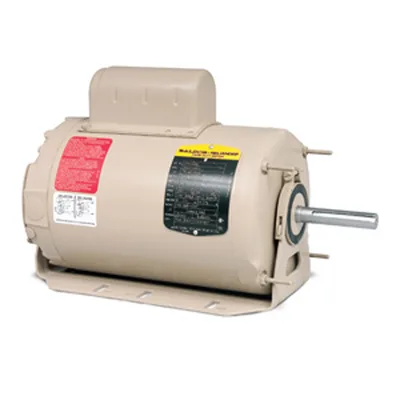

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor CHL3523A

Farm Duty - Direct Drive Motor - 1/2 hp, 1800 rpm, 1 ph, 115/230 V, 56Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 1725 rpm Base, Resilient Base Mount, Continuous Duty

BaldorMFR # CHL3523ASKU # YLSV748OODC6MNP

Motor CategoryDirect Drive Motor

Motor Phase1 ph

Motor Horsepower1/2 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage115/230 V

Frame Size56Z

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Direct Drive Motor - 1/2 hp, 1800 rpm, 1 ph, 115/230 V, 56Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 1725 rpm Base, Resilient Base Mount, Continuous Duty

Baldor CHL3523A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryDirect Drive Motor

Motor Phase1 ph

Motor Horsepower1/2 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage115/230 V

Frame Size56Z

Enclosure TypeTEAO (Totally Enclosed Air Over)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Base RPM1725 rpm

Full Load Current7.40 / 3.70 A

Full Load Efficiency68.00 %

Amps @ Voltage7.4 A @ 115 V; 4.3 A @ 208 V; 3.7 A @ 230 V

Volts @ Frequency115 V @ 60 Hz; 230 V @ 60 Hz

Shaft Diameter0.6250 in

Overall Length C Dimension12.72 in

Service Factor1.25

Frame MaterialSteel

Insulation ClassB

Standards MetCSA, UR

Harmonization Code8501.40.4040

Weight28 lbs

ApplicationsConfinement houses, exhaust fans, air handling fans, unit heaters.

Additional DetailsDouble sealed ball bearings, rugged steel frame, corrosion resistant epoxy finish. 1” extended thru bolts. Permanent split capacitor.

Mounting TypeResilient Base

Product TypeFarm Duty Motors
