How can I get a price quote for Baldor CHC3528A?

You can request a fast quote for Baldor CHC3528A from Yılsa Engineering. Reference part number YLSPRGC3OYSR46G. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor CHC3528A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor CHC3528A genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor CHC3528A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

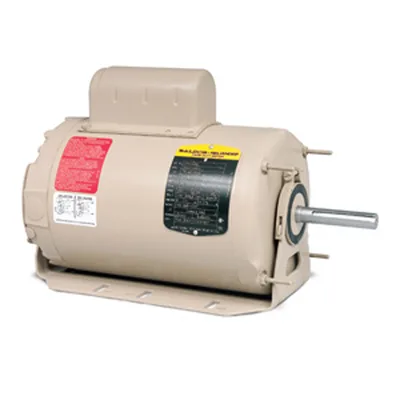

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor CHC3528A

Farm Duty - Direct Drive Motor - 3/4 hp, 1200 rpm, 1 ph, 115/230 V, 56Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, Resilient Base Mount, Continuous Duty

BaldorMFR # CHC3528ASKU # YLSPRGC3OYSR46G

Motor CategoryDirect Drive Motor

Motor Phase1 ph

Motor Horsepower3/4 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage115/230 V

Frame Size56Z

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Direct Drive Motor - 3/4 hp, 1200 rpm, 1 ph, 115/230 V, 56Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, Resilient Base Mount, Continuous Duty

Baldor CHC3528A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryDirect Drive Motor

Motor Phase1 ph

Motor Horsepower3/4 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage115/230 V

Frame Size56Z

Enclosure TypeTEAO (Totally Enclosed Air Over)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Full Load Current4.50 A

Full Load Efficiency71.00 %

Amps @ Voltage9.0 A @ 115 V; 4.5 A @ 230 V

Volts @ Frequency115 V @ 60 Hz; 230 V @ 60 Hz

Shaft Diameter0.6250 in

Overall Length C Dimension14.42 in

Warranty2 Year Warranty

Type Of BearingBall

Service Factor1.00

Frame MaterialSteel

Insulation ClassB

Standards MetCSA, UR

Harmonization Code8501.40.4040

Weight50 lbs

ApplicationsConfinement houses, exhaust fans, air handling fans, unit heaters.

Additional DetailsDouble sealed ball bearings, rugged steel frame, corrosion resistant epoxy finish. 1” extended thru bolts. Permanent split capacitor.

Mounting TypeResilient Base

Product TypeFarm Duty Motors
