Baldor CHC3526A

Farm Duty - Direct Drive Motor - 1/2 hp, 900 rpm, 1 ph, 115/230 V, 56Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 825 rpm Base, Resilient Base Mount, Continuous Duty

BaldorMFR # CHC3526ASKU # YLSMO5EGIRH7NJ3

EnclosureTEAO

Frame56Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Direct Drive Motor - 1/2 hp, 900 rpm, 1 ph, 115/230 V, 56Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 825 rpm Base, Resilient Base Mount, Continuous Duty

Baldor CHC3526A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame56Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)900 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorResilient

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.100 A @ 230.0 V · 8.200 A @ 115.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load57.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.1 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeF

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3534C

Mounting arrangementF1

Number of poles8

Overall length14.40 IN

Power factor68

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeResilient Mount

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)850 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568121467

Motor CategoryDirect Drive Motor

Motor Supply Voltage115/230 V

Base RPM825 rpm

Warranty2 Year Warranty

Type Of BearingBall

Harmonization Code8501.40.4040

Weight49 lbs

ApplicationsConfinement houses, exhaust fans, air handling fans, unit heaters.

Additional DetailsDouble sealed ball bearings, rugged steel frame, corrosion resistant epoxy finish. 1” extended thru bolts. Permanent split capacitor.

Mounting TypeResilient Base

Product TypeFarm Duty Motors

Nameplate

Catalog numberCHC3526A

Specification number35H317Z931

Horsepower (HP).5 AIR OVER

Voltage (V)115/230

Current (A)8.2/4.1

Speed (rpm)850

Frame size56Z

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)F

NEMA design letter-

Insulation classF

NEMA nominal efficiency (%)57.5

Power factor68

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEAO

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)7.3869 Ω / 23.414 Ohms B Ph

Start configurationDOL

Breakdown torque5.34 lb-ft

Pull-up torque0.883 lb-ft

Locked-rotor torque1.02 lb-ft

Starting current (A)11.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	26	39	50	60	68	74	80
Efficiency %	0	33.6	49.4	56.8	59.4	58.4	52.3
Speed rpm	895	887.5	877	864.5	849.2	829.9	794.6
Line amps A	3.24	3.28	3.44	3.73	4.14	4.69	5.6
Power W	197	293	396	513	647	802	1029
Torque lb-ft	0	0.7816	1.57	2.377	3.187	3.972	4.776

Documents & CAD

For this product 3

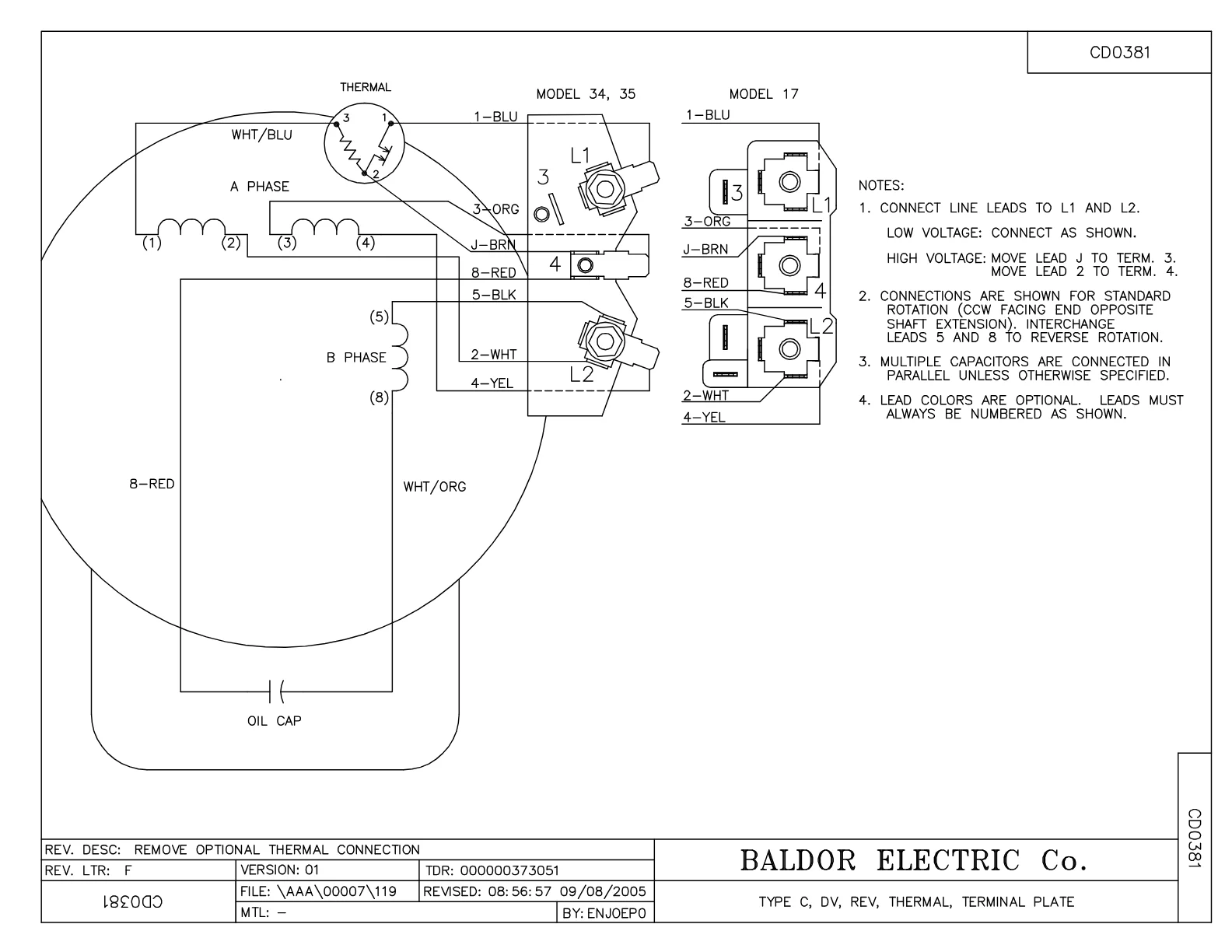

Wiring DiagramWiring DiagramPDF·45 KB·English

DatasheetDatasheetPDF·615 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·126 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor CHC3526A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3010F12SP	CYL OIL CAP 10MFD/370V	1 pcs	2 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
