Baldor CHC3525A

Farm Duty - Direct Drive Motor - 1/2 hp, 1200 rpm, 1 ph, 115/230 V, 56Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 1100 rpm Base, Resilient Base Mount, Continuous Duty

BaldorMFR # CHC3525ASKU # YLS14BWDA6Q64MF

EnclosureTEAO

Frame56Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Direct Drive Motor - 1/2 hp, 1200 rpm, 1 ph, 115/230 V, 56Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 1100 rpm Base, Resilient Base Mount, Continuous Duty

Baldor CHC3525A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame56Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorResilient

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage2.600 A @ 230.0 V · 5.200 A @ 115.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.6 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeC

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel

Motor lead terminationNone

Motor lead quantity/wire size7 @ 18 AWG

Motor type3528C

Mounting arrangementF1

Number of poles6

Overall length13.53 IN

Power factor92

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeResilient Mount

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)1100 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568121450

Motor CategoryDirect Drive Motor

Motor Supply Voltage115/230 V

Base RPM1100 rpm

Warranty2 Year Warranty

Type Of BearingBall

Harmonization Code8501.40.4040

Weight43 lbs

ApplicationsConfinement houses, exhaust fans, air handling fans, unit heaters.

Additional DetailsDouble sealed ball bearings, rugged steel frame, corrosion resistant epoxy finish. 1” extended thru bolts. Permanent split capacitor.

Mounting TypeResilient Base

Product TypeFarm Duty Motors

Nameplate

Catalog numberCHC3525A

Specification number35H317Z930G1

Horsepower (HP).5 AIR OVER

Voltage (V)115/230

Current (A)4.8/2.4

Speed (rpm)1130

Frame size56Z

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)C

NEMA design letter-

Insulation classF

NEMA nominal efficiency (%)66

Power factor95

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEAO

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)11.494 Ω / 4.1333 Ohms B Ph

Temperature rise at rated load (°C)48° C

Start configurationDOL

Breakdown torque4.79 lb-ft

Pull-up torque1.5 lb-ft

Locked-rotor torque1.88 lb-ft

Starting current (A)7.73 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	96	97	98	98	100	99	99
Efficiency %	0	30.4	48.7	60.2	67.6	68.3	68.3
Speed rpm	1193	1183.7	1171.4	1156.5	1132	1095.1	1095.1
Line amps A	1.08	1.4	1.73	2.06	2.43	3	3
Power W	236	310	387	465	556	683	683
Torque lb-ft	0	0.5617	1.133	1.704	2.337	2.996	2.999

Documents & CAD

For this product 3

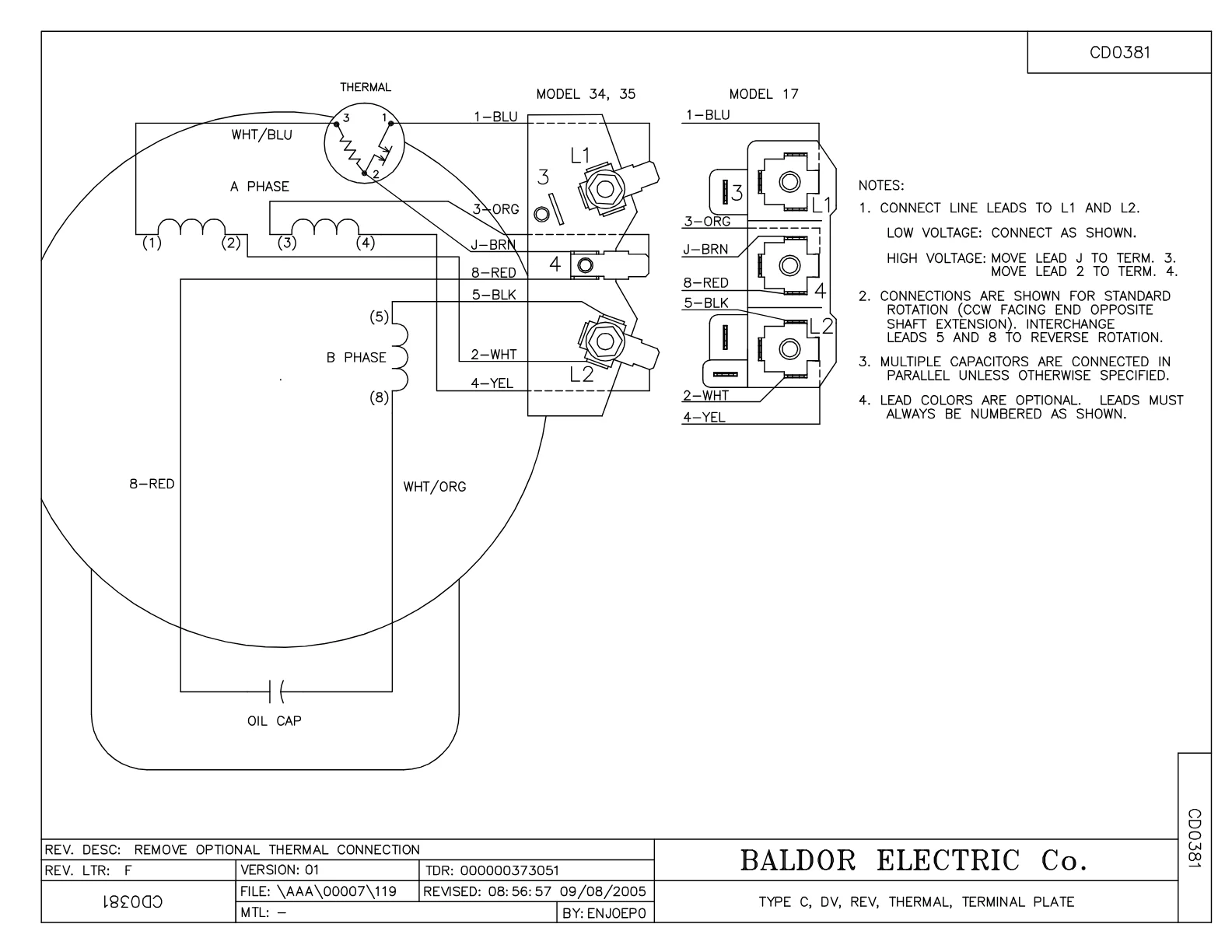

Wiring DiagramWiring DiagramPDF·45 KB·English

DatasheetDatasheetPDF·615 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·126 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CHC3525A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3040F18SP	7YL OIL CAP 40MFD/370V	1 pcs	30 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
