Baldor CHC3416A

Baldor-Reliance CHC3416A is a 0.33 HP, 1700 rpm, 1-phase 115/230 V, 60 Hz, 48Z frame, TEAO enclosed general purpose single-phase AC induction motor.

BaldorMFR # CHC3416ASKU # YLSU5VKLTGX6TSP

EnclosureTEAO

Frame48Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency.330 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CHC3416A is a 0.33 HP, 1700 rpm, 1-phase 115/230 V, 60 Hz, 48Z frame, TEAO enclosed general purpose single-phase AC induction motor.

Baldor CHC3416A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame48Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency.330 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CURUS · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorResilient

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage2.800 A @ 230.0 V · 5.600 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load56.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.8 a

Front face codeResilient Mount

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel

Motor lead terminationFlying Leads

Motor lead quantity/wire size7 @ 18 AWG

Motor type3418C

Mounting arrangementF1

Number of poles4

Overall length11.97 IN

Power factor69

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeResilient Mount

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.500 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1700 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568121412

Nameplate

Catalog numberCHC3416A

Specification number34K52-5631

Horsepower (HP).33

Voltage (V)115/230

Current (A)5.6/2.8

Speed (rpm)1700

Frame size48Z

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)H

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)56

Power factor69

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEAO

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)7.36 Ω / 22 Ohms B Ph

Start configurationDOL

Breakdown torque2.88 lb-ft

Pull-up torque0.38 lb-ft

Locked-rotor torque0.5 lb-ft

Starting current (A)9.6 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	30	42	53	62	67	74	78
Efficiency %	0	29	46	52	56	58	58
Speed rpm	1791	1775	1755	1738	1712	1692	1655
Line amps A	2.6	2.5	2.5	2.6	2.8	3.2	3.5
Power W	179	217	271	356	434	518	608
Torque lb-ft	0	0.25	0.5	0.75	1	1.25	1.5

Documents & CAD

For this product 3

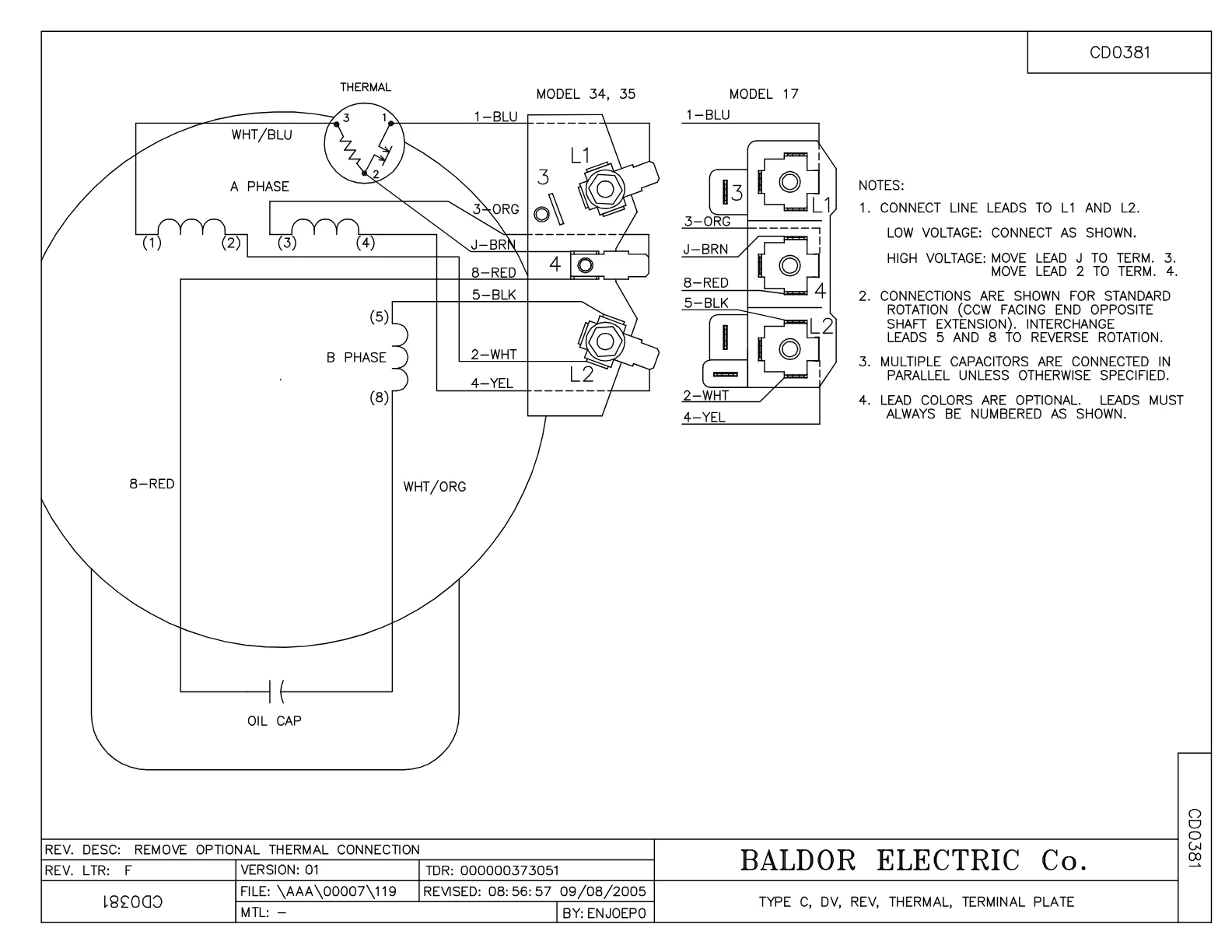

Wiring DiagramWiring DiagramPDF·45 KB·English

DatasheetDatasheetPDF·598 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·110 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor CHC3416A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
OC3008F12SP	CYL OIL CAP 8MFD/370V	1 pcs	4 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
