Baldor CHC244A

Blower/Fan Motor - 1/3 hp, 1800 rpm, 1 ph, 115/230 V, 48Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 1700 rpm Base, Resilient Base Mount, Continuous Duty

BaldorMFR # CHC244ASKU # YLSCT93U4K8ZD26

EnclosureTEAO

Frame48Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency.330 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Blower/Fan Motor - 1/3 hp, 1800 rpm, 1 ph, 115/230 V, 48Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 1700 rpm Base, Resilient Base Mount, Continuous Duty

Baldor CHC244A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame48Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency.330 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorResilient

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.700 A @ 230.0 V · 3.400 A @ 115.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.7 a

Front face codeResilient Mount

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeE

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationNone

Motor lead quantity/wire size7 @ 18 AWG

Motor type3414C

Mounting arrangementF1

Number of poles4

Overall length11.35 IN

Power factor90

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeResilient Mount

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.15

Shaft diameter0.500 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)1700 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationWG

Winding thermal 2None

UPC781568406618

Motor CategoryBlower/Fan Motor

Motor Supply Voltage115/230 V

Base RPM1700 rpm

Weight19 lbs

Harmonization Code8501.40.4040

ApplicationsAir-handling fans, confinement houses, exhaust fans, unit heaters. Designed for continuous air-over applications with moderate starting loads.

Additional Details40°C ambient, 60 Hertz, aluminum endplates, automatic thermal overloads, ball bearings, and capacitor start (single phase). Termination panel with quick connection for easier installation. Resilient cushion rings on a rugged steel base. Reversible rotation. Class B insulation.

Mounting TypeResilient Base

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberCHC244A

Specification number34M212R057G1

Horsepower (HP).33

Voltage (V)115/230

Current (A)3.4/1.7

Speed (rpm)1700

Frame size48Z

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)E

NEMA design letter-

Insulation classB

NEMA nominal efficiency (%)70

Power factor90

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEAO

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)10.817 Ω / 9.0175 Ohms B Ph

Start configurationDOL

Breakdown torque2.54 lb-ft

Pull-up torque0.347 lb-ft

Locked-rotor torque0.437 lb-ft

Starting current (A)6.99 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	55	72	81	87	90	92	93	91
Efficiency %	0	40.9	60	69.7	73.2	73	71.8	73.1
Speed rpm	1795	1781.1	1764.1	1747.9	1725	1697.9	1667.8	1709
Line amps A	0.856	0.975	1.15	1.36	1.66	1.98	2.35	1.85
Power W	107	160	214	270	344	420	503	390
Torque lb-ft	0	0.259	0.512	0.756	1.03	1.27	1.53	1.17

Documents & CAD

For this product 3

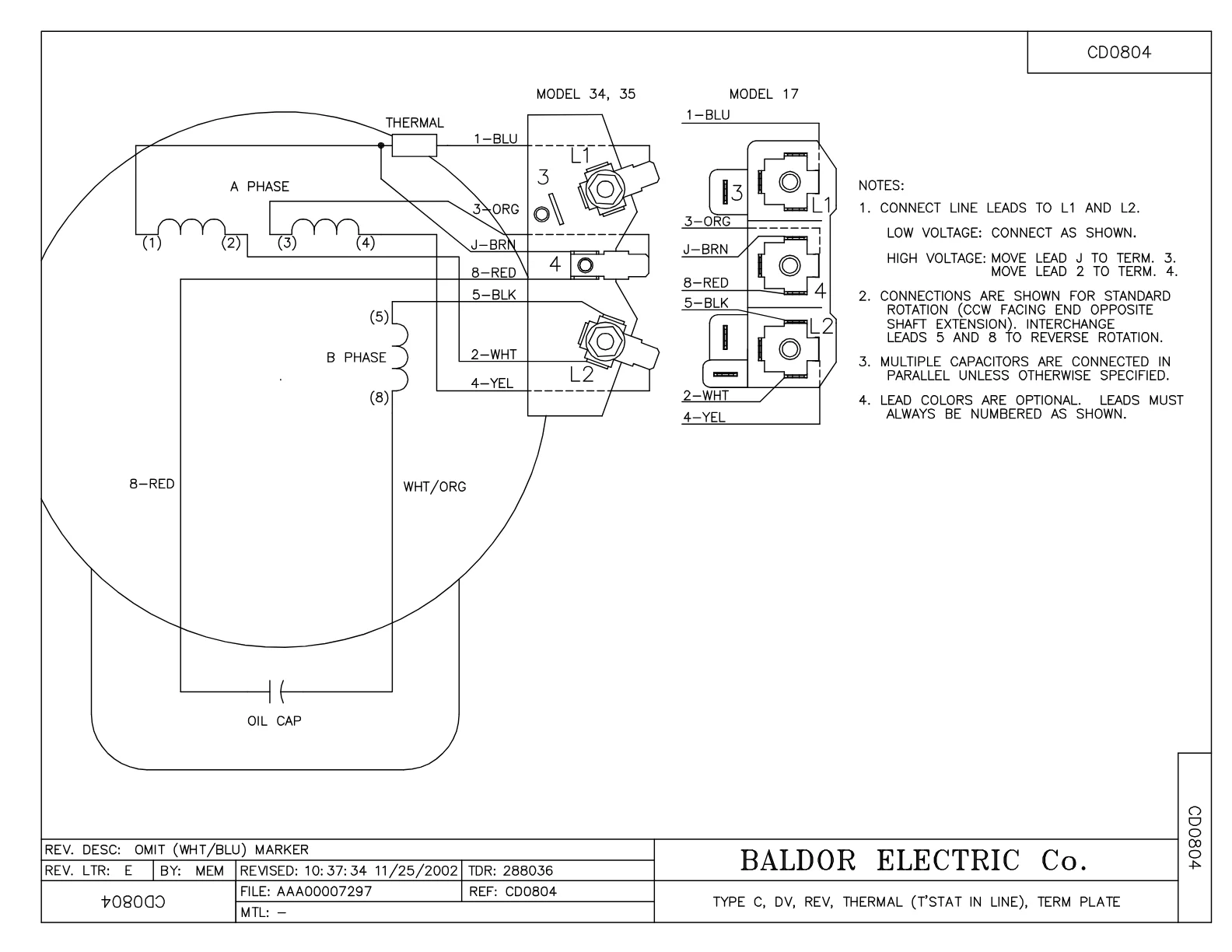

Wiring DiagramWiring DiagramPDF·43 KB·English

DatasheetDatasheetPDF·597 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·110 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor CHC244A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3020F12SP	CAPACITORS 20 MFD 370 VAC	1 pcs	38 motors
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
