Baldor CFSWDM41900T

General Purpose Washdown Duty Motor (Stainless Steel) - 15 hp, 1200 rpm, 3 ph, 230/460 V, 284TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1180 rpm Base, Foot Mount

BaldorMFR # CFSWDM41900TSKU # YLSLVNK8IP0LCGS

EnclosureTEFC

Frame284TC

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Washdown Duty Motor (Stainless Steel) - 15 hp, 1200 rpm, 3 ph, 230/460 V, 284TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1180 rpm Base, Foot Mount

Baldor CFSWDM41900T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame284TC

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Agency approvalsCSA EEV · CURUS · CURUSEEV · NEMA_PREMIUM · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage40.000 A @ 230.0 V · 20.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.7 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)20.0 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)1800 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 10 AWG

Motor type4072M

Mounting arrangementF1

Number of poles6

Overall length28.14 IN

Power factor78

Product familyWD All SD Non-Encapsulated

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1180 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568883211

Motor CategoryGeneral Purpose Motor (Stainless Steel)

Motor Supply Voltage230/460 V

Base RPM1180 rpm

Weight488 lbs

Mounting TypeFoot

Product TypeWashdown Duty Motors

Nameplate

Catalog numberCFSWDM41900T

Specification number40E429X382G1

EnclosureTEFC

CC number010A

Ingress protection (IP)69

Horsepower (HP)15

Magnetizing current (A)18.6/9.3

Voltage (V)230/460

NEMA nominal efficiency (%)91.7

Current (A)40/20

Power factor78

Rating40C AMB-CONT

Speed (rpm)1180

Maximum speed (rpm)1800

Frame size284TC

Frequency (Hz)60

Code letter (locked rotor kVA)H

Insulation classH

Service factor1.15

Phase3

NEMA design letterA

Drive end bearing6311

Opposite drive end bearing6311

LubricationPOLYREX EM

Constant horsepower60

TO90

Inertia (WK²)8.82

Constant torque30

TO60

SL HZ1

Variable torque6

TO60

Nameplate numberNP4427AAA05

Performance

General characteristics· 460 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.49611 Ω

Temperature rise at rated load (°C)49° C

Temperature rise at service factor load (°C)59° C

Start configurationDOL

Breakdown torque207 lb-ft

Pull-up torque101 lb-ft

Locked-rotor torque125 lb-ft

Starting current (A)127 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	4	38	60	72	78	80	82	79
Efficiency %	0	88.7	92.7	93.4	93.2	92.7	91.8	92.9
Speed rpm	1198.9	1195.1	1191.1	1186.7	1181.9	1176.7	1170.8	1179
Line amps A	9.3	10.3	12.6	15.8	19.5	23.6	28.2	22
Power W	324	3167	6072	9020	12045	15089	18301	13871
Torque lb-ft	0	16.56	33.27	50	66.92	83.68	101	77

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

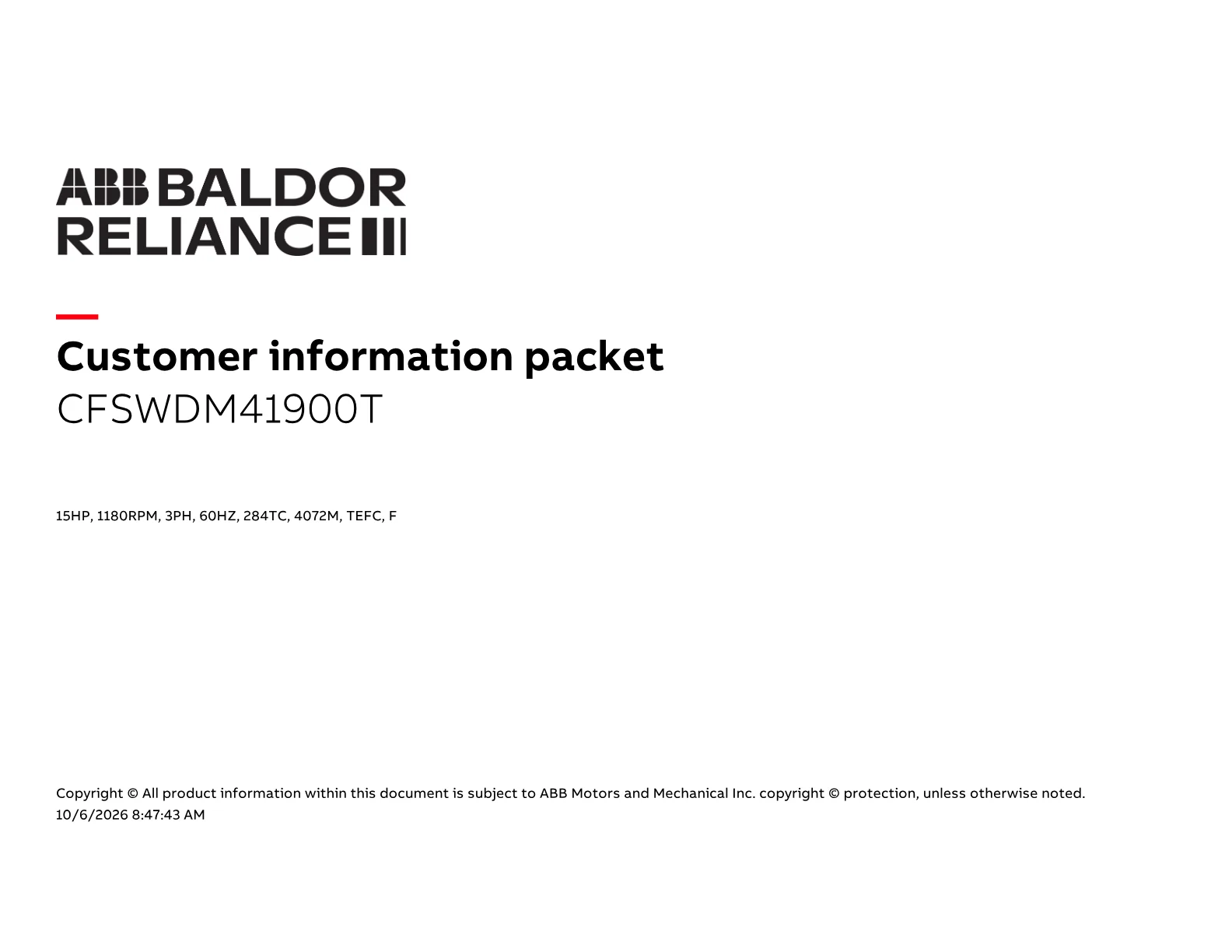

DatasheetDatasheetPDF·601 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·117 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor CFSWDM41900T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
