Baldor CFSWDM3537-5E

General Purpose Washdown Duty Motor (Stainless Steel) - 1/2 hp, 3600 rpm, 3 ph, 575 V, 56C Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz, 3500 rpm Base, Foot Mount

BaldorMFR # CFSWDM3537-5ESKU # YLSQNPI57DWHZ5Y

EnclosureTENV

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Washdown Duty Motor (Stainless Steel) - 1/2 hp, 3600 rpm, 3 ph, 575 V, 56C Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz, 3500 rpm Base, Foot Mount

Baldor CFSWDM3537-5E

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · CURUSEEV · NEMA_PREMIUM · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage.600 A @ 575.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load84.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)0.6 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeNot Inverter

KVA codeN

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5400 rpm

Motor finishUNPAINTED

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size@ 0 AWG · 3 @ 18 AWG

Motor type3516M

Mounting arrangementF1

Number of poles2

Overall length11.78 IN

Power factor84

Product familyWD All SS Encapsulated

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3500 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568882269

Motor CategoryGeneral Purpose Motor (Stainless Steel)

Motor Supply Voltage575 V

Base RPM3500 rpm

Weight35 lbs

Mounting TypeFoot

Product TypeWashdown Duty Motors

Nameplate

Catalog numberCFSWDM3537-5E

Specification number35E4735N872G1

EnclosureTENV

CC number010A

Ingress protection (IP)69

Horsepower (HP).5

Magnetizing current (A).32

Voltage (V)575

NEMA nominal efficiency (%)84

Current (A).6

Power factor84

Rating40C AMB-CONT

Speed (rpm)3500

Maximum speed (rpm)5400

Frame size56C

Frequency (Hz)60

Code letter (locked rotor kVA)N

Insulation classH

Service factor1.15

Service factor current (A).62

Phase3

NEMA design letterB

Drive end bearing6205

Opposite drive end bearing6205

LubricationPOLYREX EM

Constant horsepower60

TO90

Inertia (WK²)0.036

Constant torque15

TO60

SL HZ1.7

Variable torque3

TO60

Nameplate numberNP4427ALA02

Performance

General characteristics· 575 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)39.4 Ω

Temperature rise at rated load (°C)46° C

Temperature rise at service factor load (°C)52° C

Start configurationDOL

Breakdown torque3.91 lb-ft

Pull-up torque1.65 lb-ft

Locked-rotor torque3.18 lb-ft

Starting current (A)5.93 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	12	41	60	72	80	85	88	83
Efficiency %	0	71.9	80.2	83.3	84.6	84.7	84	84.7
Speed rpm	3599	3573	3552	3528	3502	3477	3449	3487
Line amps A	0.323	0.347	0.398	0.47	0.56	0.657	0.763	0.618
Power W	39	142	236	337	446	553	665	510
Torque lb-ft	0	0.201	0.375	0.56	0.758	0.948	1.14	0.872

Documents & CAD

For this product 4

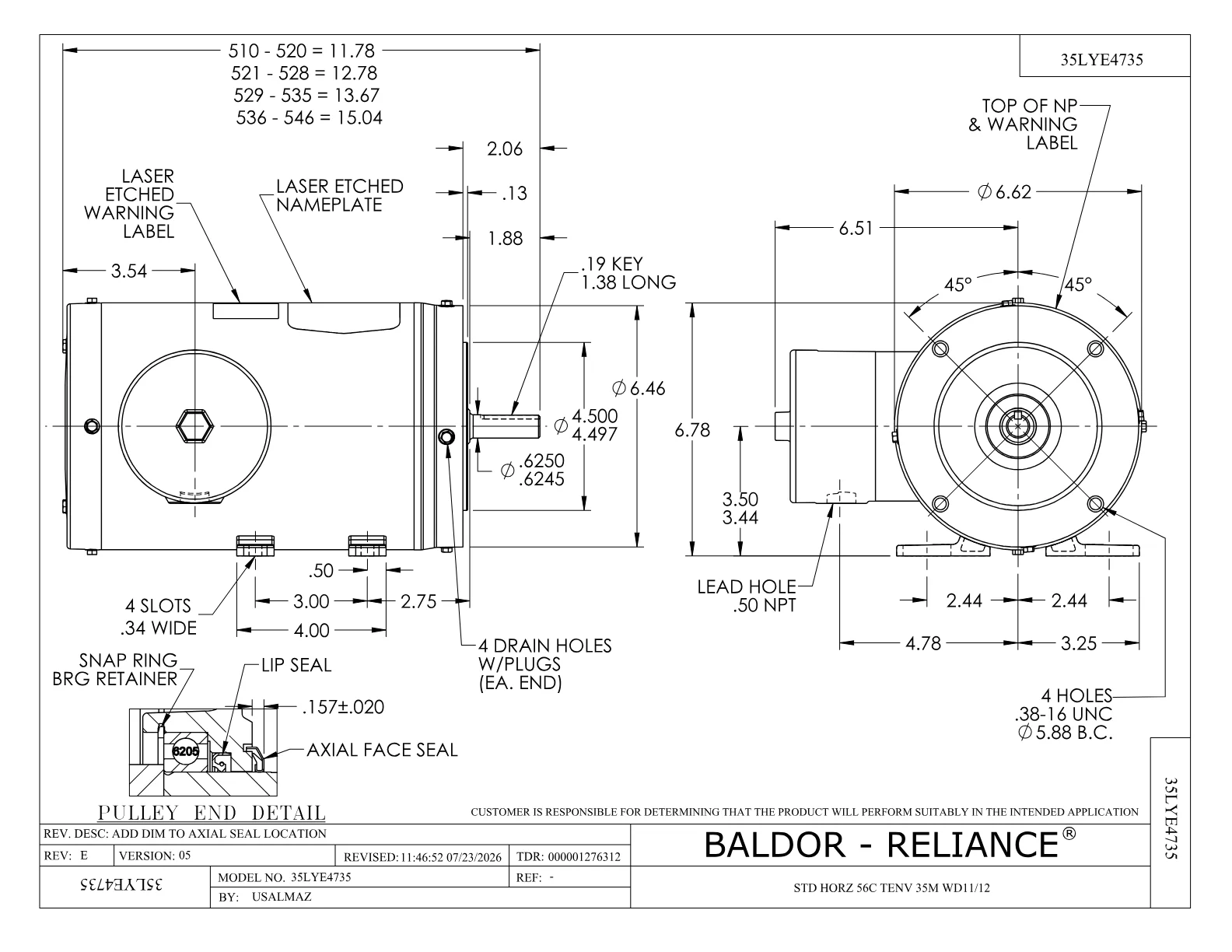

Dimension DrawingDimension SheetPDF·93 KB·English

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·576 KB·English

Performance CurvePerformance CurvePDF·60 KB·English
